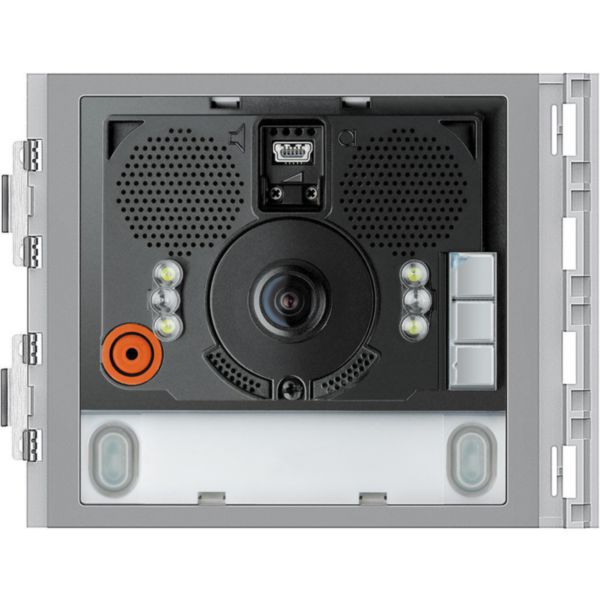

Name: Sfera audio video module for 2 wires colour video systems
Brand: BTicino
SKU: BT-351200
Availability: InStock

Description

Audio/video module for 2 WIRE colour video systems. With Colour camera with 1/3” sensor and white LEDs for the lighting of the shooting field.

Product characteristics

Mist prevention heating resistance. Loudspeaker and Microphone volumeadjustments. It can manage up to 98 pushbutton calls using the additional doublerow pushbutton modules.
It offers the possibility of opening an electrical door lockdirectly connected to clamps S+ and S- (18 V 4 A impulsive - 250 mA holding current30 Ohm max) and of connecting a local door lock release pushbutton on clamps PL.
The device must be configured physically or using a PC with the specific software, which can be downloaded free of charge fromwww.homesystems-legrandgroup.com; this mode has the advantage of offeringmany more options when compared with the physical configuration.
Preset for additional power supply.Fitted with front LEDs for the notification of theoperating status: door lock release, communication active, call put through, andsystem busy. Integrated optic sensor for the switching on of the night backlighting.
To be completed with surround plate.

Products benefits

Installation

Advantages

Traditional configuration with configurators or using the dedicated software avialble for free on www.homesystems-legrandgroup.com
Compatible with SFERA modular entrance panel

Technical Characteristics

Number of call buttons 2

Material call buttons Plastic

Material front Other

Front plate height 91 mm

Front plate width 115 mm

Built-in depth 20 mm

Mounting method Flush-mounted

Installation technique Bus system

Colour Other

Degree of protection (IP) IP54

degree of impact strength (IK) IK07

Operating / setting temperature (Min-Max) -15-50 °C

Storage temperature (Min-Max) -20-70 °C

Voltage type AC/DC

Nominal voltage (Min-Max) 18-27 V

Supply current (Min-Max) 0.04-1 A

Sound level 80 dB

Standby consumption 40 mA

Halogen free Yes

Cable nature for connection Flexible

Cable section (Min-Max) 1-2.5 mm²

Label space/information surface Yes

Fitted with rainproof plate protection Yes

With complemantary luminous signal No

Control mode Wired

Contains Batteries and/or Accumulator No

Hands free Yes

Loudness setting Yes

Addressable No

Door entry system with mobile application Yes

Remote opening of gate / Electric door opener No

Camera type Adjustable

Video recorder angle 100 °

Max distance between internal and external unit 150 m

Communication rank type Other

Connected object No
