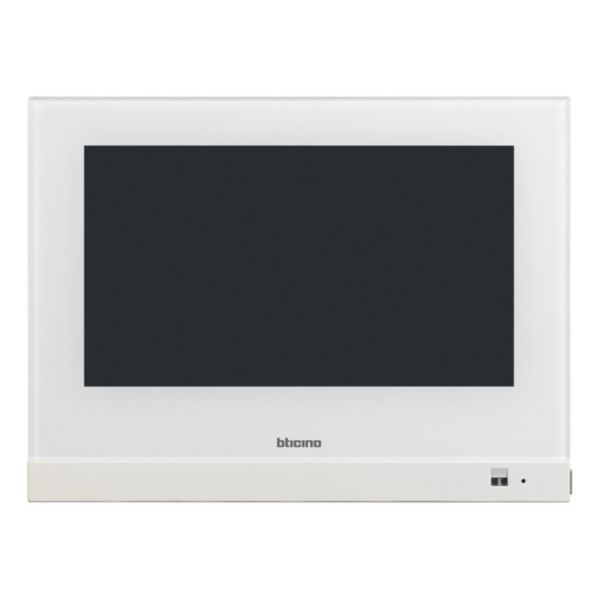

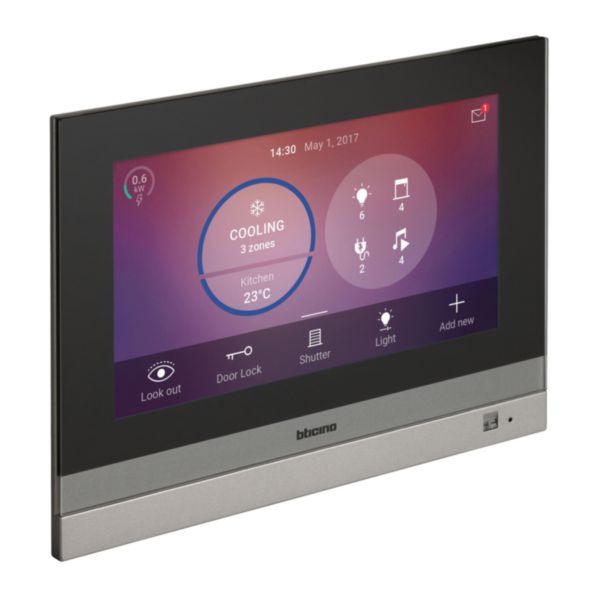

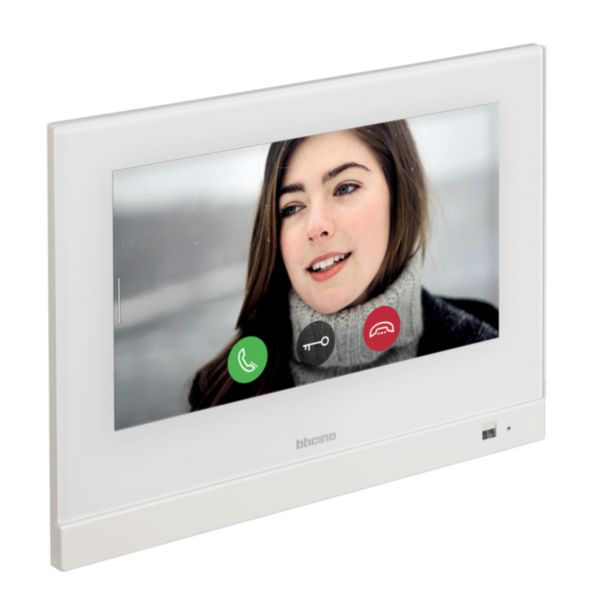

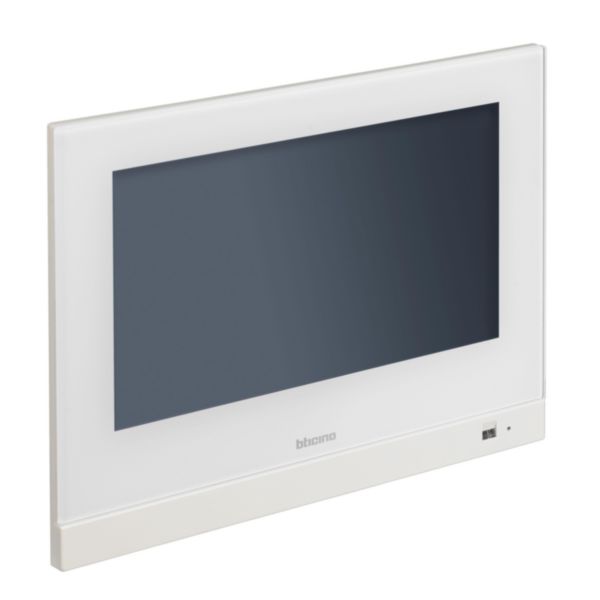

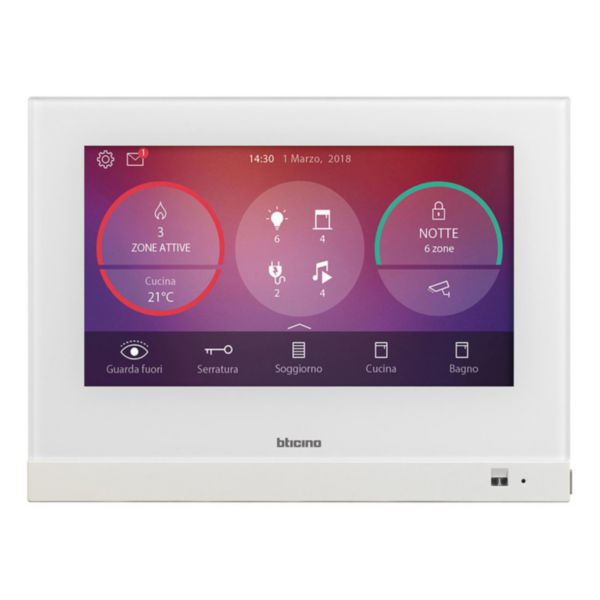

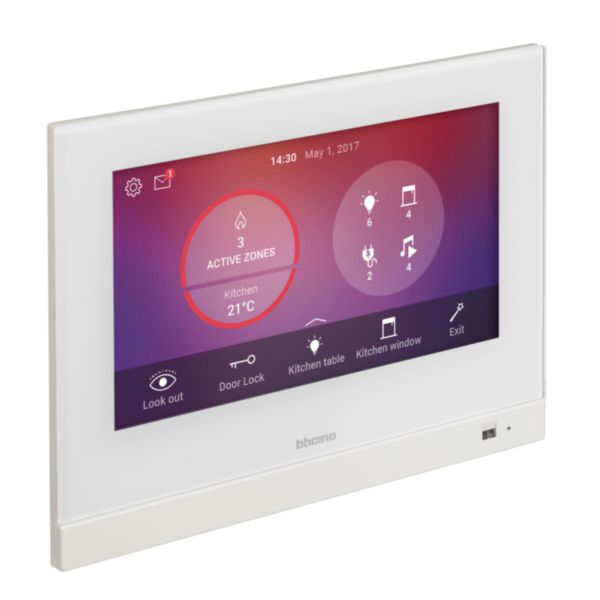

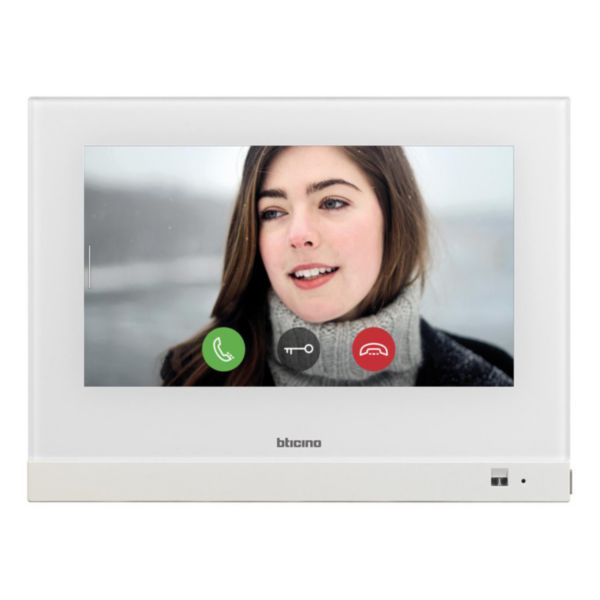

HOMETOUCH - 7" touch screen for managing all MyHOME functions. White
BT-3488W
|
8005543627433
Description
7” Touch Screen for the management of all MyHOME_Up functions, that can be integrated with the video door entry system, to be used as connected internal unit.
Product characteristics
- Flush mounted or wall mounted installation
- Thanks to the “DOOR ENTRY for HOMETOUCH” application can be used as connected internal unit.
- To use the home automation functions, configuration is not necessary.
- Rated voltage 27 V d.c.
- Rated current 0,001 A
Products benefits
Installation
- Aesthetic advantage: thanks to its box it's perfeclty flush-mounted.
Usage
- Thanks to this device you have all the home automation and VDE functions integrated in one display, and you can easily manage scenarios.
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
Yes
Other bus systems
Other
Radio frequency bidirectional
Yes
Assembly arrangement
Control element
Model
Control tableau
Mounting method
Flush-mounted
Touch function
Yes
Additional interfaces
Ethernet
With bus connection
Yes
Material
Glass
Material quality
Other
Colour
White
Degree of protection (IP)
Other
Width
196 mm
Height
147 mm
Depth
25 mm
Built-in depth
7 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Hands free
Yes
Loudness setting
Yes
Addressable
Yes
Remote opening of gate / Electric door opener
Yes
Screen resolution
852x480
Screen brightness setting
Yes
Screen contrast setting
Yes
Contains Batteries and/or Accumulator
No
Connected object
Yes
Operating method
SCS, Wifi network 2.4G
Application store for download
Google Play Store, Mac Apple Store
Programmable
Yes
Connectable by Internet box
Yes
Application name
Door Entry
Product use function
Control & command systems
Software Update Duration (years)
3
Documentation
3 documents
Installation Guide
GUI-MHOME | PDF (22.7 MB) | EN
Technical Guide
RA00162AE_EN | PDF (91.7 MB) | EN
Technical Sheet
ST-00000724-EN | PDF (1.6 MB) | EN
1 documents
Agreement
LGMDBDWSDK | FILE (164 KB) | EN · IT
5 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Brochure
BRO-MHOME | PDF (2.7 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
3 documents
Software
MYHOME_SUITE_030538 | EXE (571.7 MB)
Software
MYHOME_SUITE_README_V2 | PDF (551 KB) | EN
Firmware
SMARTDES_030203 | FWZ (159.5 MB)
