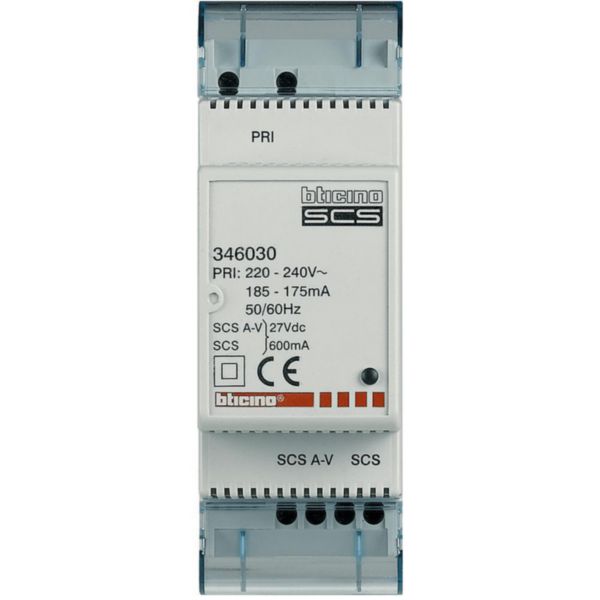

2 DIN power supply with integrated video adapter
BT-346030
|
8012199956022
Description
Power supply with integrated video adapter for small 2 wire video systems (intercom). Power supply 230 Vac 50-60 Hz. On the output it supplies 27 Vdc continuous low voltage, with a maximum current of 600 mA.
Product characteristics
- 2 DIN modular housing
- Power supply 230 Vac 50-60 Hz.
- integrated video adapter
- Protected on the PRI side (with fuses) against short circuit and overload.
Products benefits
Installation
- It is a SELV double insulation safety device
Advantages
- Protected on the PRI side (with fuses) against short circuit and overload.
Technical Characteristics
Application
Video
Input voltage
240 V
Frequency (Min-Max)
50-60 Hz
Type of current
DC
Output voltage
27 V
Degree of protection (IP)
IP20
Height
90 mm
Width
34 mm
Depth
67 mm
Installation technique
Bus system
Integrated door opening circuit
No
Control function
No
Evaluation function
No
Service indication
No
Mounting method
Other
Programming lock
No
