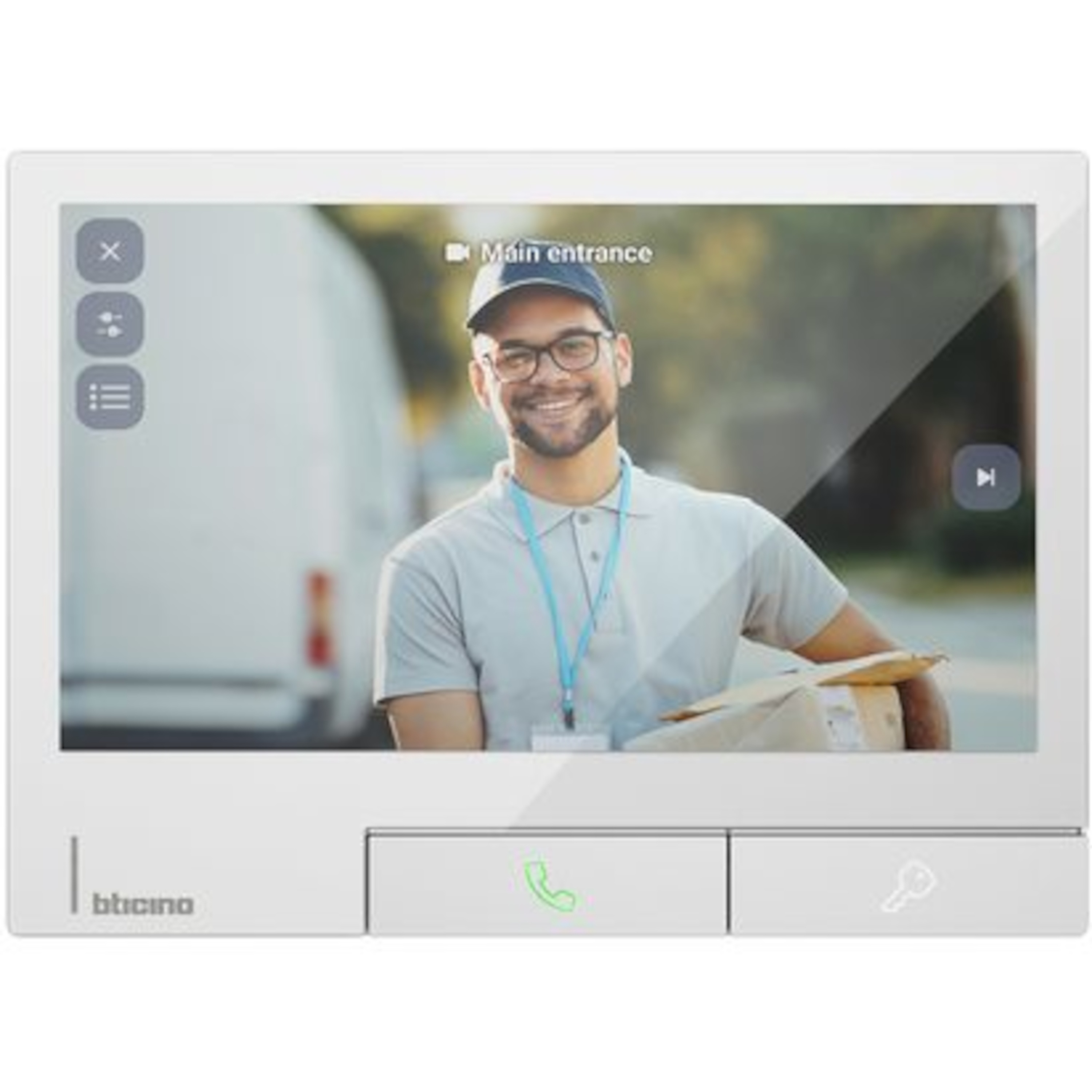

Classe 300X connected video internal unit in Light finish
BT-344742
|
8005543781326
Description
CLASSE 300X New is the next-generation of 2-wire video intercom that combines advanced technology, attractive aesthetics, and an accessible design aimed at simplifying the work of installer and the experience of users
Product characteristics
- 7” LCD Touchscreen Display, horizontal orientation, 1024x600 resolution
- Wi-Fi 6 Connectivity. Compatible with 2.4GHz and 5GHz networks for stable and fast connection.
- Premium material, small frame and two physical buttons for basic functions; advanced features managed via touchscreen menus.
- Remote management of calls, locks, notifications, and Netatmo devices
- “Professional Studio” and “Do Not Disturb” modes programmable by day and time.
Products benefits
Installation
- Flexible Mounting Options: wall installation with included bracket or table base with optional accessory support, adaptable to various environments.
Usage
- Intuitive and Complete User Experience: touchscreen and app integration allow users to easily manage all functions, even remotely.
Advantages
- Attractive design and advance technology
- Compatibility with Netatmo Ecosystem enables quick and easy creation of an integrated smart security system.
- Sustainable Materials: Made of 80% recycled ABS plastic, with a focus on environmental responsibility.
Technical Characteristics
With video
Yes
Installation technique
Bus system
Mounting method
Surface mounted
Material
Other
Picture system
PAL
Property picture system
Colour
With memory function
Yes
Overhear protected
No
Operation door lock
Yes
Control extra function(s)
Yes
Hands free
Yes
Can be connected to smartphone
Yes
Zoom, pan/tilt function
No
Screen diagonal
177.8 mm
Screen diagonal (inch)
7 inch
Hearing aid compatible
No
With automatic door opener
Yes
Colour
White
Type of interface
Wi-Fi
Mutable call tone
Yes
Internal communication
Yes
Specific call tone
Yes
Additional device connectable
Yes
Loudness setting
Yes
With touch screen
Yes
Width
172 mm
Height
125 mm
Depth
19 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
5-40 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
DC
Nominal voltage (Min-Max)
20-27 V
Supply current (Min-Max)
0.038-0.55 A
Sound level
80 dB
Standby consumption
38 mA
Halogen free
Yes
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Fitted with rainproof plate protection
No
With complemantary luminous signal
Yes
Vertical fixing center distance (Min-Max)
60-75 mm
Horizontal fixing center distance (Min-Max)
60-82 mm
Contains Batteries and/or Accumulator
No
Addressable
Yes
Door entry system with mobile application
Yes
Number of ringtones
15
Remote opening of gate / Electric door opener
Yes
Screen resolution
Other
Screen brightness setting
Yes
Screen contrast setting
Yes
Memory video function
Yes
Max distance between internal and external unit
200 m
Connected object
Yes
Operating method
SCS, Wifi network 2.4G
Application store for download
App Store, Google Play Store
Programming way
Remote
With voice command
No
Interoperable connection Protocol
No
Connectable by Internet box
Yes
Application name
Home + Security
Product use function
Door entry systems
Documentation
3 documents
Instruction Use
LE15496AB | PDF (4.8 MB)
Installation Guide
RA00259AA_EN | PDF (19.4 MB) | EN
Technical Sheet
ST-00002361-EN | PDF (10.9 MB) | EN
1 documents
PEP-EPD
LGRP-02163-V01.01-EN | PDF (806 KB) | EN
3 documents
Firmware
C3X2_010008 | FWZ (234.3 MB)
Software
MYHOME_SUITE_030538 | EXE (571.7 MB)
Software
MYHOME_SUITE_README_V2 | PDF (551 KB) | EN
