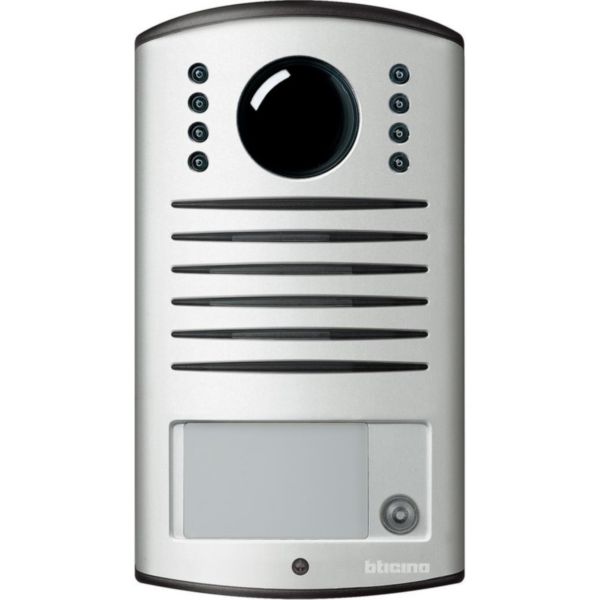

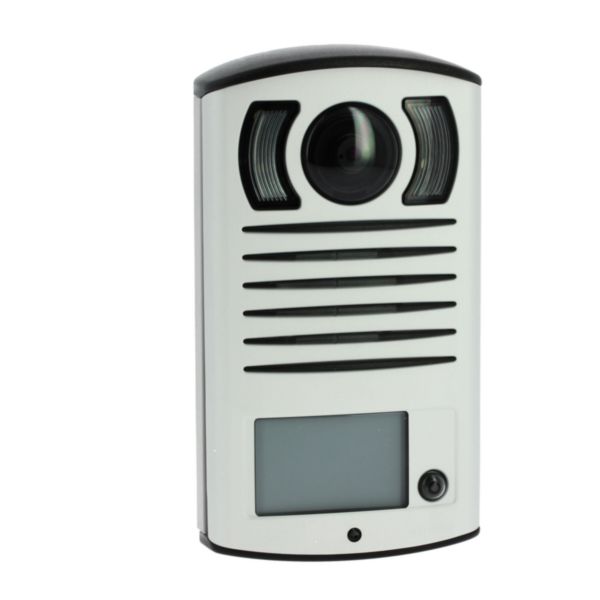

One family Linea 2000 video entrance panel
BT-343031
|
8005543531464
Description
Linea 2000 two wires video pushbutton panel with 1 call key and colour camera. Fitted with white LEDs for the lighting of the shooting field in low light conditions.
Product characteristics
- It provides the possibility of opening an electrical door lock connected directly to clamps S+ and S- (18 V 4 A impulsive, 250 mA holding current)
- Aluminium front cover.
- Nameplate lit by green LED
Products benefits
Installation
- 2-wires traditional installation
Technical Characteristics
Number of call buttons
1
Material call buttons
Plastic
Material front
Aluminium
Front plate height
176 mm
Front plate width
98 mm
Built-in depth
31 mm
Mounting method
Surface mounted
Installation technique
Bus system
Colour
Silver
Degree of protection (IP)
IP54
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-15-50 °C
Storage temperature (Min-Max)
-20-70 °C
Voltage type
AC/DC
Nominal voltage (Min-Max)
18-240 V
Supply current (Min-Max)
0.04-1 A
Frequency (Min-Max)
50-60 Hz
Sound level
80 dB
Standby consumption
40 mA
Cable nature for connection
Flexible
Cable section (Min-Max)
1-2.5 mm²
Label space/information surface
Yes
Fitted with rainproof plate protection
Yes
With complemantary luminous signal
No
Control mode
Wired
Contains Batteries
No
Hands free
Yes
Loudness setting
Yes
Addressable
No
Door entry system with mobile application
Yes
Remote opening of gate / Electric door opener
No
Camera type
Adjustable
Video recorder angle
100 °
Max distance between internal and external unit
150 m
Communication rank type
Other
Connected object
No
Documentation
2 documents
Technical Sheet
BT00865-B-EN | PDF (232 KB) | EN
Instruction Use
LE07402AA | PDF (1.1 MB)
1 documents
PEP-EPD
LGRP-00104-V01.01-EN | PDF (1015 KB) | EN
