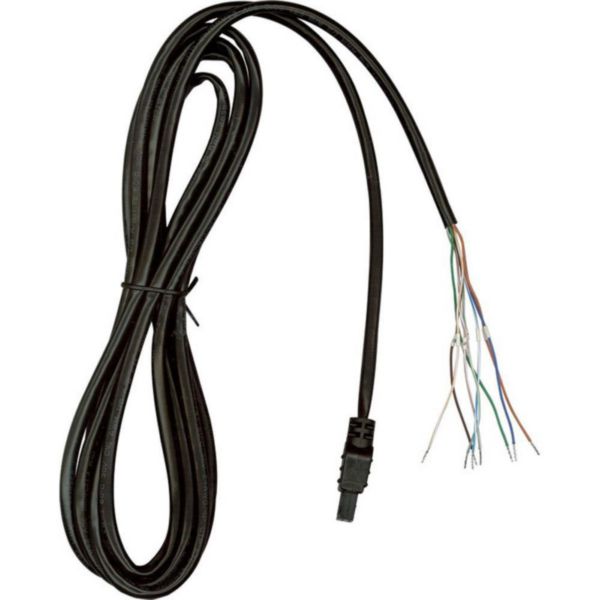

8-way cable with connector for IUs tabletop installation
BT-336803
|
8012199220338
Technical Characteristics
Conductor material
Copper
Nominal cross section conductor
0.205 mm²
Diameter conductor
0.91 mm
Conductor category
Class 2 = stranded
Number of cores
7
Material core insulation
Polyvinyl chloride (PVC)
Core identification
None
With protective conductor
No
Max. permitted conductor temperature
105 °C
Screen
No
Drain wire
No
Protective barrier
None
Armouring/reinforcement
None
Material outer sheath
None
Colour outer sheath
Colourless
Low smoke according to EN IEC 61034-2
No
Outer diameter approximate
1 mm
Permitted cable outer temperature during assembling/handling (Min-Max)
-15-105 °C
Permitted cable outer temperature after assembling without vibration (Min-Max)
-15-105 °C
Nominal voltage U0
300 V
Nominal voltage U
300 V
