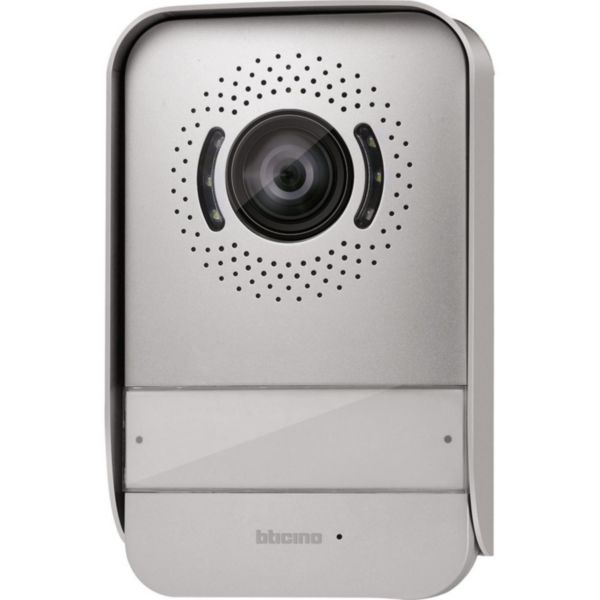

Additional video entrance panel with rainshield
BT-331860
|
8005543533376
Description
Plug in easy kits additional video colour entrance panel with rainshield. IP54 protection degree. Wide angle colour camera (95°).
Product characteristics
- Video colour entramce panel for Easy KIT
Technical Characteristics
Number of call buttons
2
Material call buttons
Plastic
Material front
Aluminium
Front plate height
160.5 mm
Front plate width
100 mm
Built-in depth
36.6 mm
Mounting method
Surface mounted
Installation technique
Bus system
Colour
Silver
Degree of protection (IP)
IP54
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-10-50 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC/DC
Nominal voltage (Min-Max)
18-240 V
Supply current (Min-Max)
0.04-1 A
Frequency (Min-Max)
50-60 Hz
Sound level
80 dB
Standby consumption
40 mA
Cable nature for connection
Flexible
Cable section (Min-Max)
1-2.5 mm²
Label space/information surface
Yes
Fitted with rainproof plate protection
Yes
With complemantary luminous signal
No
Control mode
Wired
Contains Batteries
No
Hands free
Yes
Loudness setting
Yes
Addressable
No
Remote opening of gate / Electric door opener
No
Camera type
Adjustable
Video recorder angle
95 °
Max distance between internal and external unit
150 m
Communication rank type
2
Connected object
No
Documentation
1 documents
Instruction Use
LE07917AB | PDF (4.8 MB)
