  • Linea 300 monobloc vandal-resistant video entrance panel up to 4 calls
Obsolete Linea 300 BTicino

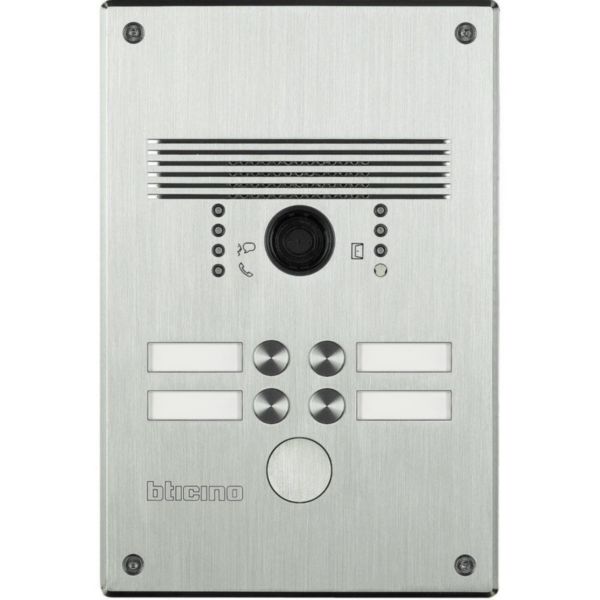

Linea 300 monobloc vandal-resistant video entrance panel up to 4 calls

BT-308001 | 8012199992617
Linea 300 monobloc vandal-resistant 2 wires video entrance panel for 2 and 4 calls with aluminium finish. The item code includes: flush mounted box, frame, colour video and audio electronic module, prewired pushbutton module/s. Presetting for the mounting of transponder reader or key switch. Backlit call keys. Visual and sound notifications of the communication status for: call active, system busy, door lock status
Description

Monobloc vandal-proof 2 wire video prewired pushbutton panel (2-4 calls), colour video and audio electronic module, transponder reader or key switch. Visual and sound notifications of status for: call active, system busy, door lock status

Product characteristics
  • Dimensions: 270x180 mm
  • Visual and sound notifications of status for: call active, system busy, door lock status
  • Aluminium finish
  • Presetting for the mounting of transponder reader or key switch
Products benefits
Installation
  • The item code includes flush mounted box and frame
Advantages
  • Protection index: IP 54
  • Vandal-proof
Technical Characteristics
Number of call buttons 4
Material call buttons Aluminium
Material front Aluminium
Front plate height 270 mm
Front plate width 180 mm
Built-in depth 20 mm
Mounting method Flush-mounted
Installation technique Bus system
Colour Silver
Degree of protection (IP) IP54
degree of impact strength (IK) IK07
Operating / setting temperature (Min-Max) -15-50 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC/DC
Nominal voltage (Min-Max) 18-240 V
Supply current (Min-Max) 0.04-1 A
Frequency (Min-Max) 50-60 Hz
Sound level 80 dB
Standby consumption 40 mA
Halogen free Yes
Cable nature for connection Flexible
Cable section (Min-Max) 1-2.5 mm²
Label space/information surface Yes
Fitted with rainproof plate protection Yes
With complemantary luminous signal No
Vertical fixing center distance (Min-Max) 1600-1650 mm
Horizontal fixing center distance (Min-Max) 30-50 mm
Control mode Wired
Contains Batteries and/or Accumulator No
Hands free Yes
Loudness setting Yes
Addressable No
Door entry system with mobile application Yes
Remote opening of gate / Electric door opener No
Camera type Adjustable
Video recorder angle 100 °
Max distance between internal and external unit 150 m
Communication rank type Other
Connected object No
Documentation
2 documents
Technical Sheet
BT00631-C-EN | PDF (195 KB) | EN
Technical Sheet
U4553C | PDF (3.6 MB) | DE · EN · ES · FR · IT · NL · PT
