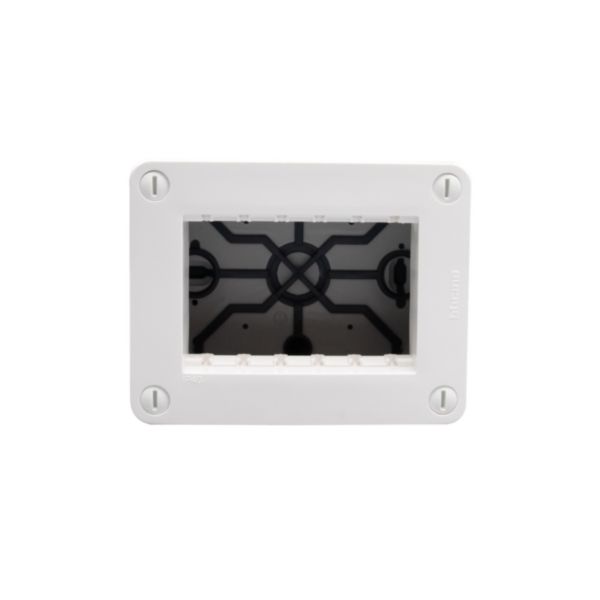

IP40 Box - 3 modules - White
BT-28403W
|
8005543722244
Description
The MatixGO box IP40 is an innovative solution that enables to follow the change in needs by easy evolution both in terms of function and performance. The IP40 boxes can easily be placed side-by-side or stacked by the coupler.
Product characteristics
- IP55 waterproof elastic membrane for easy and quick insertion of the tubes without tools and spare accessory

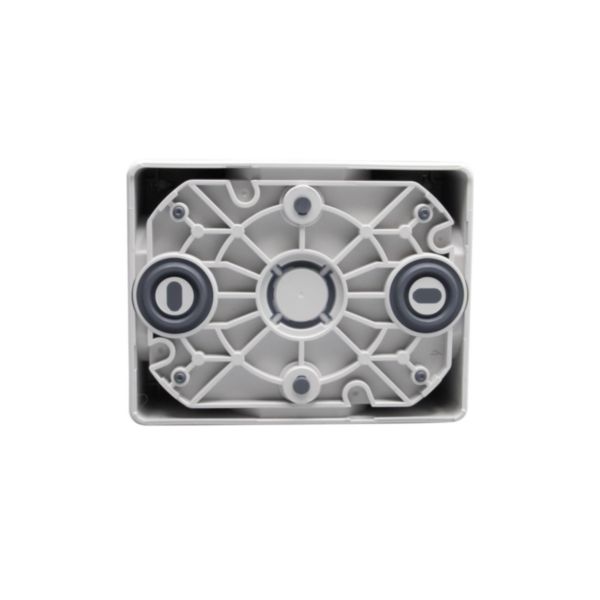

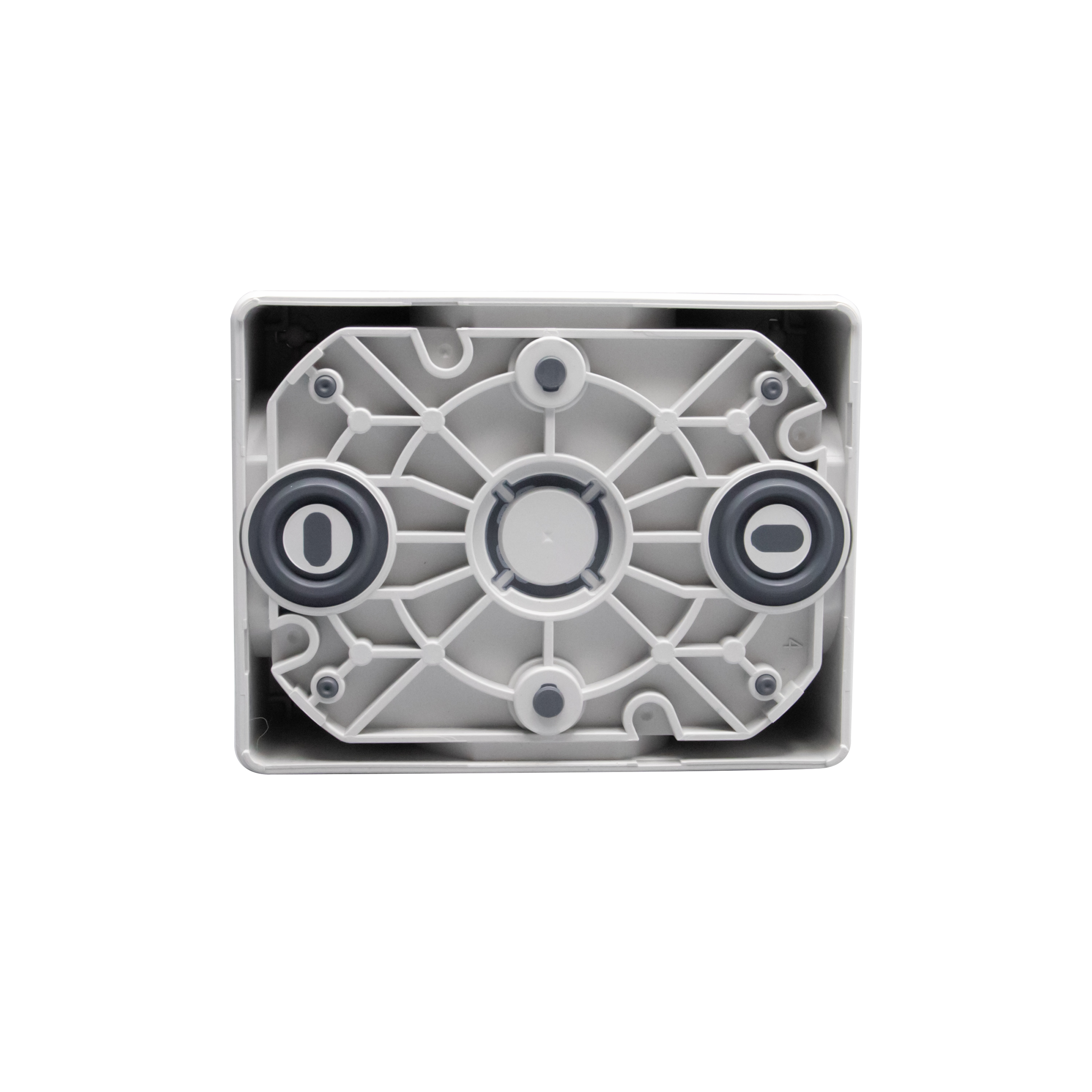

- Dampers for gripping on the wall and IP55 rubber: waterproof even with box fixed on the wall
- 3 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor or outdoor installation.
Products benefits
Installation
- Quick and easy installation by dampers and IP55 rubber waterproof on the back part, and the 90° screws.
Usage
- Quick and easy installation and possibility to extend the modularity of the installation and improve the performance even in a second step
Advantages
- Technical back part coherent with most used surface distribution system. User interface coherent with flush-mounting installation.
- High performance
Technical Characteristics
Assembly arrangement
Surface mounted box
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
3
Number of units
1
Mounting direction
Horizontal
Shape
Rectangular
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
With cover frame
No
Cross-trunking mounting
No
With duct entry
Yes
With cable entry
Yes
With screw gland entry
Yes
Shock resistant
Yes
Degree of protection (IP)
IP40
Width
100 mm
Height
77 mm
Depth
58.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Tube diameter for wall mounted product (Min-Max)
12-22 mm
Maximum Input cable diameter
22 mm
Entry membrane gland type
Not applicable
Cable support
Not applicable
Antimicrobial treatment
No
Documentation
1 documents
Technical Sheet
IDP001822_01-EN | PDF (750 KB) | EN
1 documents
PEP-EPD
LGRP-02165-V01.01-EN | PDF (820 KB) | EN
