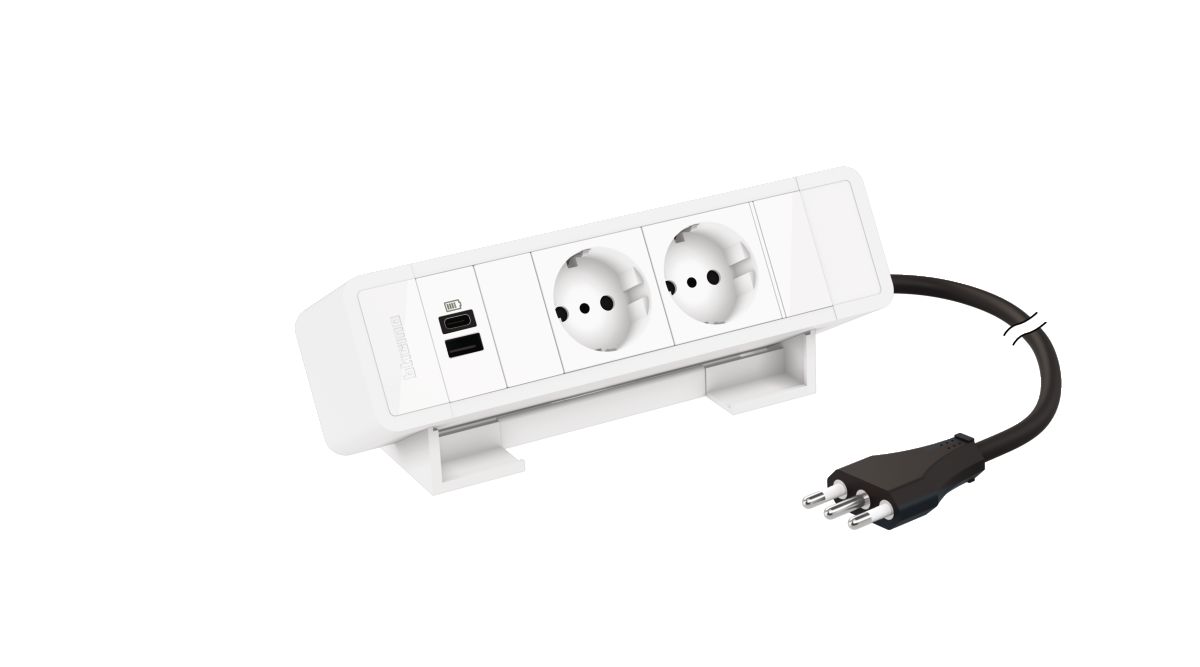

Desktop multi-outlet extensions equipped with MatixGO power sockets and USB chargers - 6 modules - Color: white
BT-1508661W
|
8005543745885
Description
On Desk, a stylish and versatile solution to power the workstation, is equipped with MATIX GO modules to bring power, data and audio-video functions close to the user without drilling the desk
Product characteristics
- Pre-wired and supplied with 2m cord and 2P+E plug
- White aluminium body with white ABS back plate and end caps
- MATIX GO 2P+E sockets white finish
- Can be attached to the desk with the fixing bracket reference 1508600 or the supplied double-sided adhesive tape
Recommendations / Restrictions
- To be used on furniture only
Products benefits
Installation
- Ready to use - Can stand free on the desk or be attached with a toolless clamp
Usage
- A mobile electrification solution to be used on the desk for power and data connections at user's fingertips
Advantages
- Optimized size to reduce footprint on the desk
- Supplied with double-sided adhesive tapes for a quick and damage-free installation on the desk
Technical Characteristics
Model
Surface mounting
Folding
No
Extendable
No
Shape
Rectangular
Material
Plastic
Colour
White
Degree of gloss
Matt
Length
213.4 mm
Width
79.4 mm
Height
85.6 mm
Built-in depth
0 mm
Number of socket outlets with protective contact CEE 7/3 (type F)
2
Number of socket outlets with protective contact CEE 7/5 (type E)
0
Number of socket outlets British Standard BS 1363
0
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
Number of socket outlets Italian standard type P40 L/F
0
With on/off switch
No
Number of HDMI connections
0
Number of D-Sub connections 15-pole
0
Number of ports USB-A
1
Number of ports USB-C
1
Number of audio connections
0
Number of CAT 5E connections
0
Number of CAT 6 connections
0
Number of CAT 6A connections
0
Number of empty module positions
6
Number of miniature circuit breakers (MCB)
0
Overvoltage protection
No
Mains filter
No
With built-in USB power supply
Yes
Nominal voltage
230 V
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK07
Antimicrobial treatment
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Supply current (Min-Max)
16-20 A
Terminal marking indication
No
RAL-number
9003
Halogen free
Yes
Prewired
Yes
Connection type
Screwed terminal
Terminals capacity (Min-Max)
0.75-4 mm²
Label space/information surface
No
Documentation
1 documents
Instruction Use
LE14982AA_01 | PDF (4 MB) | AR · BE · CS · DE · EN · ES · FI · FR · HU · IT · LT · LV · MT · NL · NO · PL · PT · SE · SK · TR
