  5. BT-1508613W
  • Desktop multi-outlet extensions to be equipped with MatixGO devices - 12 modules - Color: white.
MatixGO BTicino

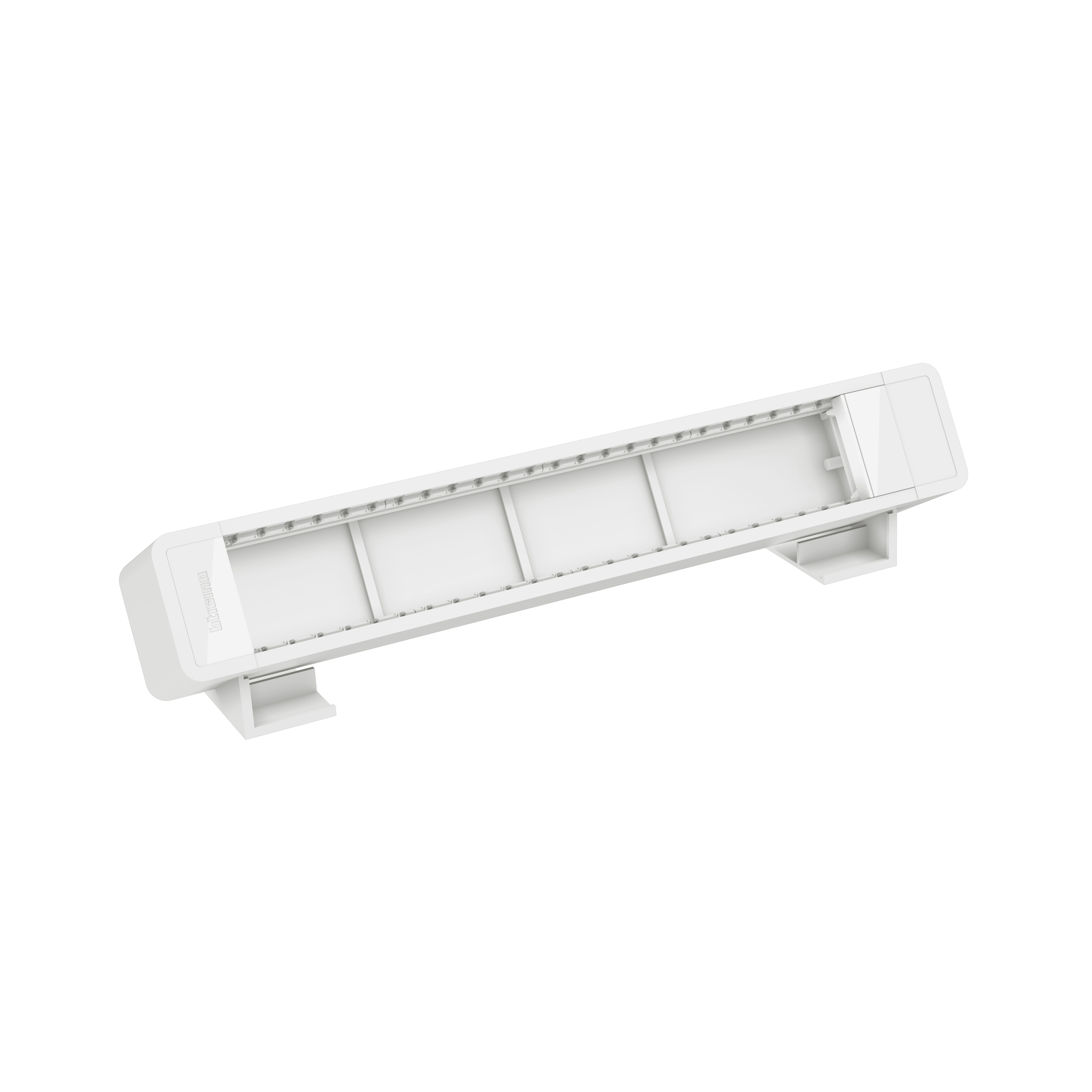

Desktop multi-outlet extensions to be equipped with MatixGO devices - 12 modules - Color: white.

BT-1508613W | 8005543745861
Desktop multi-outlet extensions to be equipped with MatixGO devices - 12 modules - Color: white.Material: aluminium and ABS. Dimensions optimised to take up little space on the workstation. Specially designed at an angle for ease of plugging and unplugging. Can be attached with double-sided tape (provided). The double-sided tape can be removed without damaging thefurniture.
Description

On Desk, a stylish and versatile solution to power the workstation - To be equipped with MATIX GO modules to bring power, data and audio-video functions close to the user without drilling the desk

Product characteristics
  • 12 modules
  • White aluminium body with white ABS back plate and end caps
  • To be equipped with MATIX GO power, data and audio-video functions
  • Can be attached to the desk with the fixing bracket reference 1508600 or the supplied double-sided adhesive tape
Recommendations / Restrictions
  • To be used on furniture only
Products benefits
Installation
  • Can stand free on the desk or be attached with a toolless clamp
Usage
  • A mobile electrification solution to be used on the desk for power and data connections at user's fingertips
Advantages
  • Easily customizable according to customer needs with quick snap-on of the MATIX GO functions - No drilling needed for installation
  • Supplied with double-sided adhesive tapes for a quick and damage-free installation on the desk
Technical Characteristics
Model Surface mounting
Folding No
Extendable No
Shape Rectangular
Material Plastic
Colour White
Degree of gloss Matt
Length 348.8 mm
Width 79.4 mm
Height 85.6 mm
Built-in depth 0 mm
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of socket outlets Italian standard type P40 L/F 0
With on/off switch No
Number of HDMI connections 0
Number of D-Sub connections 15-pole 0
Number of audio connections 0
Number of CAT 5E connections 0
Number of CAT 6 connections 0
Number of CAT 6A connections 0
Number of empty module positions 12
Number of miniature circuit breakers (MCB) 0
Overvoltage protection No
Mains filter No
With built-in USB power supply No
Nominal voltage 230 V
Degree of protection (IP) IP20
degree of impact strength (IK) IK07
Antimicrobial treatment No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Supply current (Min-Max) 16-20 A
Terminal marking indication No
RAL-number 9003
Halogen free Yes
Prewired No
Connection type Screwed terminal
Terminals capacity (Min-Max) 0.75-4 mm²
Label space/information surface No
