MatixGO BTicino

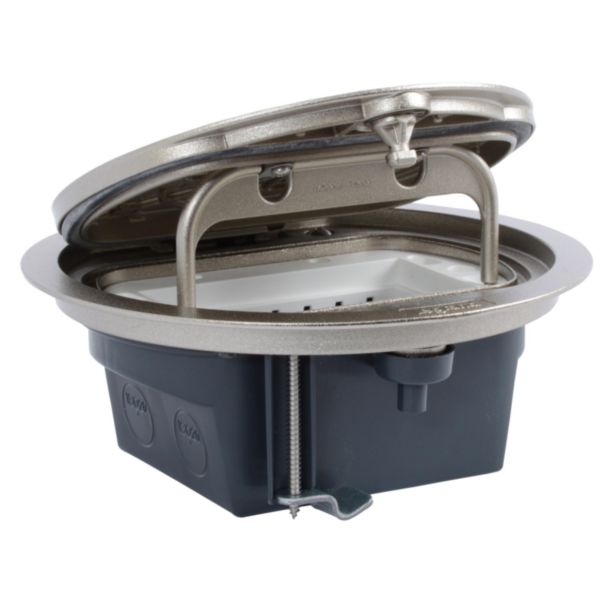

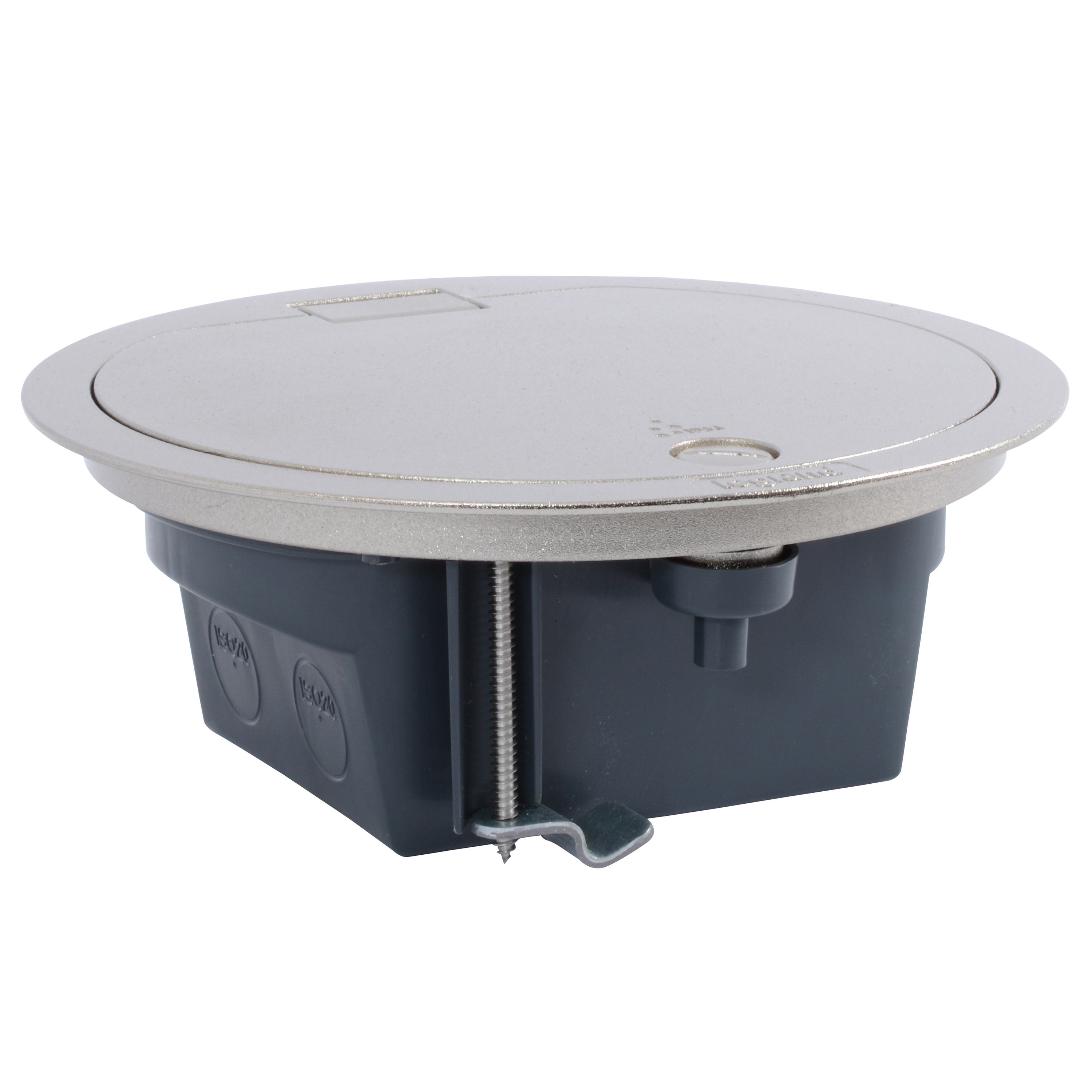

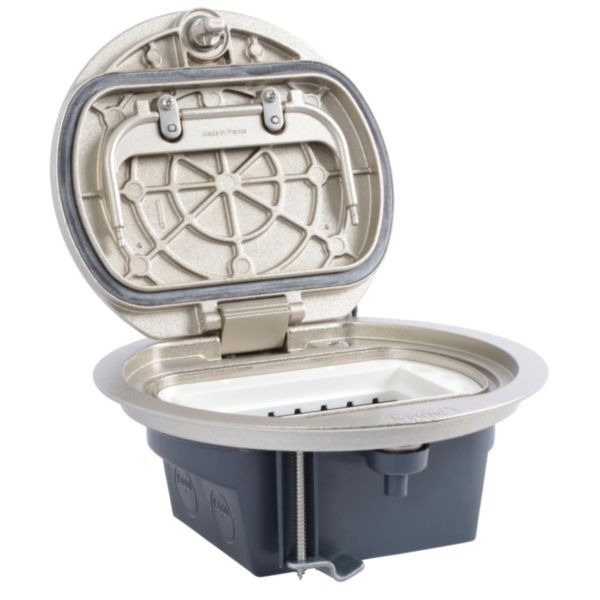

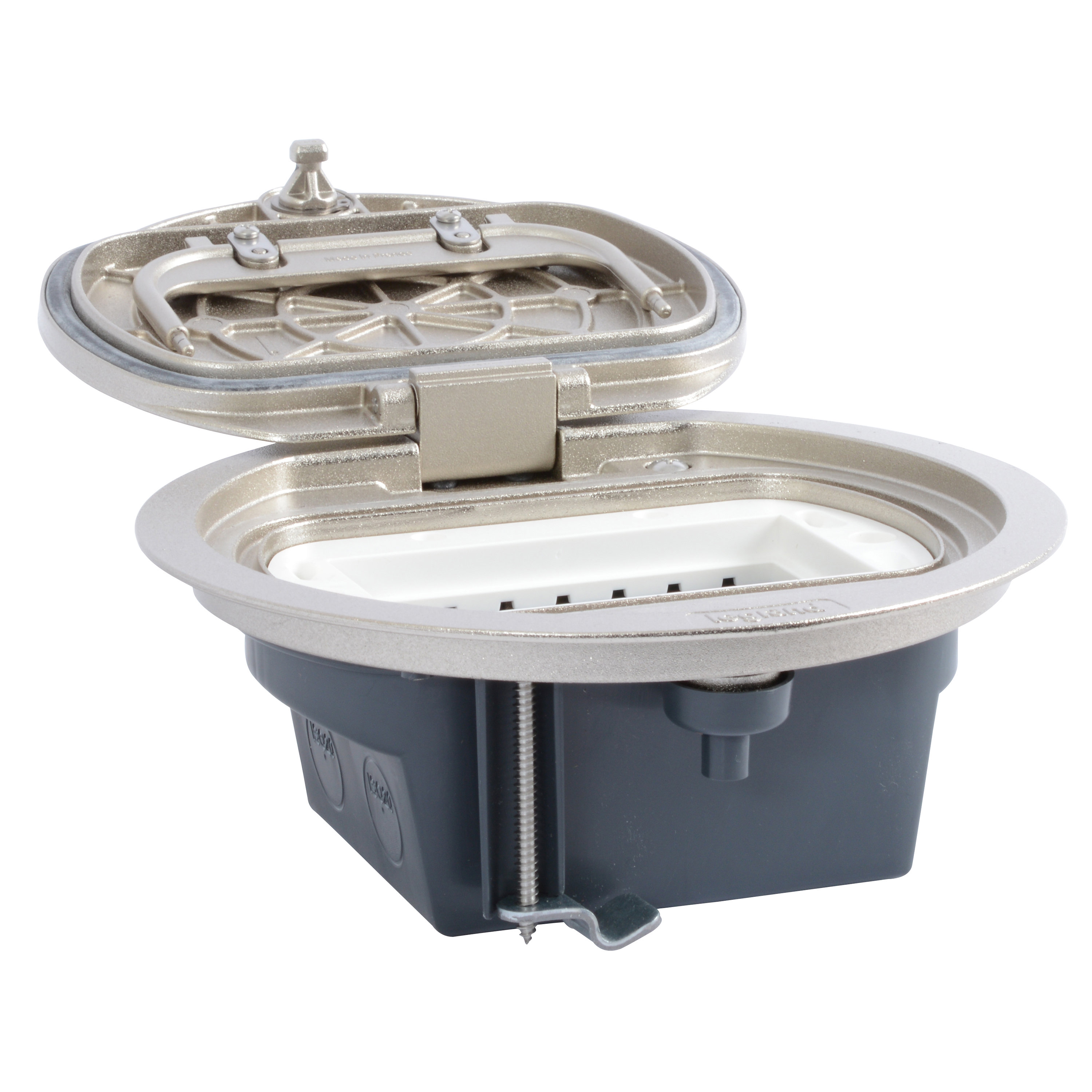

4 modules with hinged lid. IP66 (when lid is closed). Stainless steel finish.

BT-150732 | 8005543743317
4 modules with hinged lid. IP66 (when lid is closed). Stainless steel finish.
Description

The floor box with hinged lid allows the access and the connection to the power, ELV and DATA sockets pre-installed (Suitable with MatixGO mechanisms). 4 Modules. Product recommended for indoor use.

Product characteristics
  • Sealing class IP66 : completely protected against dust and against jets of water.
  • Supports a load up to 1 Tone (closed cover) and resists impacts of energy equivalent to 10 Joules (Protection class IK09).
  • For raised floor installation: cable entries pre-cut for several pipe diameters (16, 20 and 25mm).
  • Comply with IEC 60-670-1 et 60-670-23 standards.
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • Easy and quick installation thanks to four mounting claws using a screwdriver. For screed floors: with the auto-adjustable backbox cat.no 088069- For raised floors or elevated deck (thickness of tiles from 15mm to 55mm).
Usage
  • Ideal for a frequent use, with a fast 180° opening of the lid which allows to plug and unplug cords easily. Integrates indoors spaces (shopping mall, hotel ...)
Advantages
  • Secured access: locking with a tool (Ideal in public areas or spaces welcoming children).
Technical Characteristics
Cover model Round
Number of inlets 1
Number of device cups 1
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE) 0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE) 0
Number of socket outlets British Standard BS 1363 0
With cable outlet in cover No
Lockable cover Yes
Lock control Other
Housing material Other
Surface protection housing Chromium-plated
Material cover Other
Surface protection cover Other
Surface treatment cover Other
Degree of protection (IP) when in use (cable outlet open) Other
With opening carpeting No
Depth of flooring recess 0 mm
Protective frame carpeting Yes
Colour Other
Suitable for indoor installation Yes
Suitable for outdoor installation No
Suitable for subfloor duct Yes
Suitable for hollow floor Yes
Suitable for double floor built-in Yes
Suitable for concrete installation Yes
Suitable for floors in computer rooms Yes
Suitable for wet cleaning No
Outer diameter 170 mm
Built-in diameter 152 mm
Min. built-in depth 65 mm
Depth 70 mm
number of rows 1
degree of impact strength (IK) IK09
Operating / setting temperature (Min-Max) -5-60 °C
Halogen free Yes
Fitted with USB plug No
