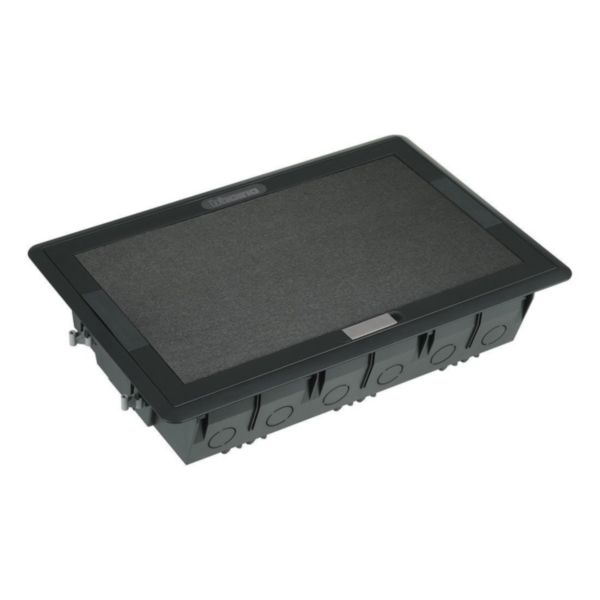

Underfloor boxes 24/30 modules
BT-150705
|
8012199779720
Technical Characteristics
Cover model
Rectangular
Number of inlets
12
Number of device cups
1
Number of socket outlets with protective contact CEE 7/3 (type F)
0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of socket outlets British Standard BS 1363
0
With cable outlet in cover
No
Lockable cover
Yes
Housing material
Plastic
Surface protection housing
Untreated
Material cover
Steel
Surface protection cover
Untreated
Surface treatment cover
Untreated
Degree of protection (IP) when in use (cable outlet open)
IP20
With opening carpeting
No
Protective frame carpeting
Yes
Colour
Grey
RAL-number
9011
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for subfloor duct
No
Suitable for hollow floor
No
Suitable for double floor built-in
Yes
Suitable for concrete installation
No
Suitable for floors in computer rooms
Yes
Suitable for wet cleaning
No
Outer width
284 mm
Outer length
441 mm
Length built-in dimension
409 mm
Width built-in dimension
254 mm
Min. built-in depth
90.5 mm
Depth
97.5 mm
degree of impact strength (IK)
Other
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Halogen free
Yes
Fitted with USB plug
No
Documentation
3 documents
Instruction Use
F3345B | PDF (1.2 MB)
Technical Sheet
IDP001895 | PDF (595 KB) | EN
Technical Sheet
IDP001895_03-EN | PDF (679 KB) | EN
1 documents
PEP-EPD
LGRP-00567-V01.01-EN | PDF (931 KB) | EN
1 documents
Brochure
3224702 | PDF (51 MB) | EN
