  5. BT-150701G
  • Floor boxes for installation in floating and concrete floors. To be equipped with MatixGO functions or DIN modules. Modules 8-10.
MatixGO BTicino

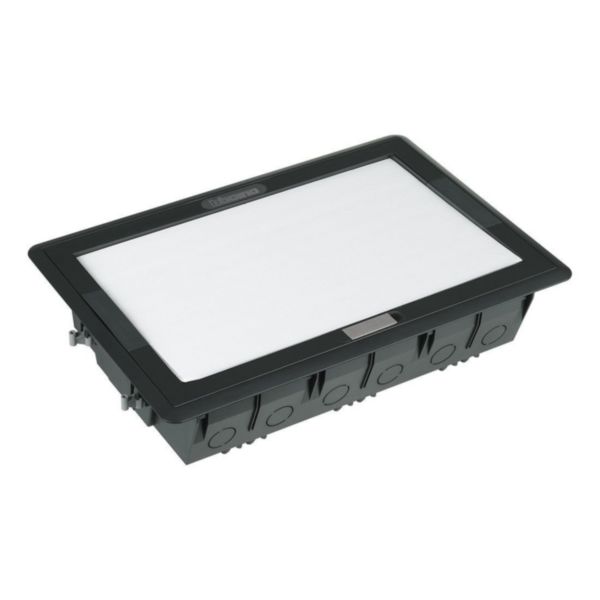

Floor boxes for installation in floating and concrete floors. To be equipped with MatixGO functions or DIN modules. Modules 8-10.

BT-150701G | 8005543743997
Floor boxes for installation in floating and concrete floors. To be equipped with MatixGO functions or DIN modules. Modules 8-10. Cover finish Grey
Description

Floor box ready to install. It has 8 modules in vertical position. The color grey is to have the same signature as MatixGO. Ideal solution for a tertiary project.

Product characteristics
  • Robust product
  • Cover with slowdown system
  • Various tube entries
  • Color Grey
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • In hand installation of functions with the support frame
Usage
  • Adapts perfectly to tertiary building thanks to the same color signature as MatixGO functions
Advantages
  • Ideal for tertiary projects
Technical Characteristics
Cover model Rectangular
Number of inlets 8
Number of device cups 2
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE) 0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE) 0
Number of socket outlets British Standard BS 1363 0
With cable outlet in cover No
Lockable cover Yes
Housing material Plastic
Surface protection housing Untreated
Material cover Steel
Surface protection cover Untreated
Surface treatment cover Untreated
Degree of protection (IP) when in use (cable outlet open) IP20
With opening carpeting No
Protective frame carpeting No
Colour Grey
RAL-number 9011
Suitable for indoor installation Yes
Suitable for outdoor installation No
Suitable for subfloor duct No
Suitable for hollow floor No
Suitable for double floor built-in Yes
Suitable for concrete installation No
Suitable for floors in computer rooms Yes
Suitable for wet cleaning No
Outer width 284 mm
Outer length 201 mm
Length built-in dimension 169 mm
Width built-in dimension 254 mm
Min. built-in depth 90.5 mm
Depth 97.5 mm
degree of impact strength (IK) Other
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Halogen free Yes
Fitted with USB plug No
