MatixGO BTicino

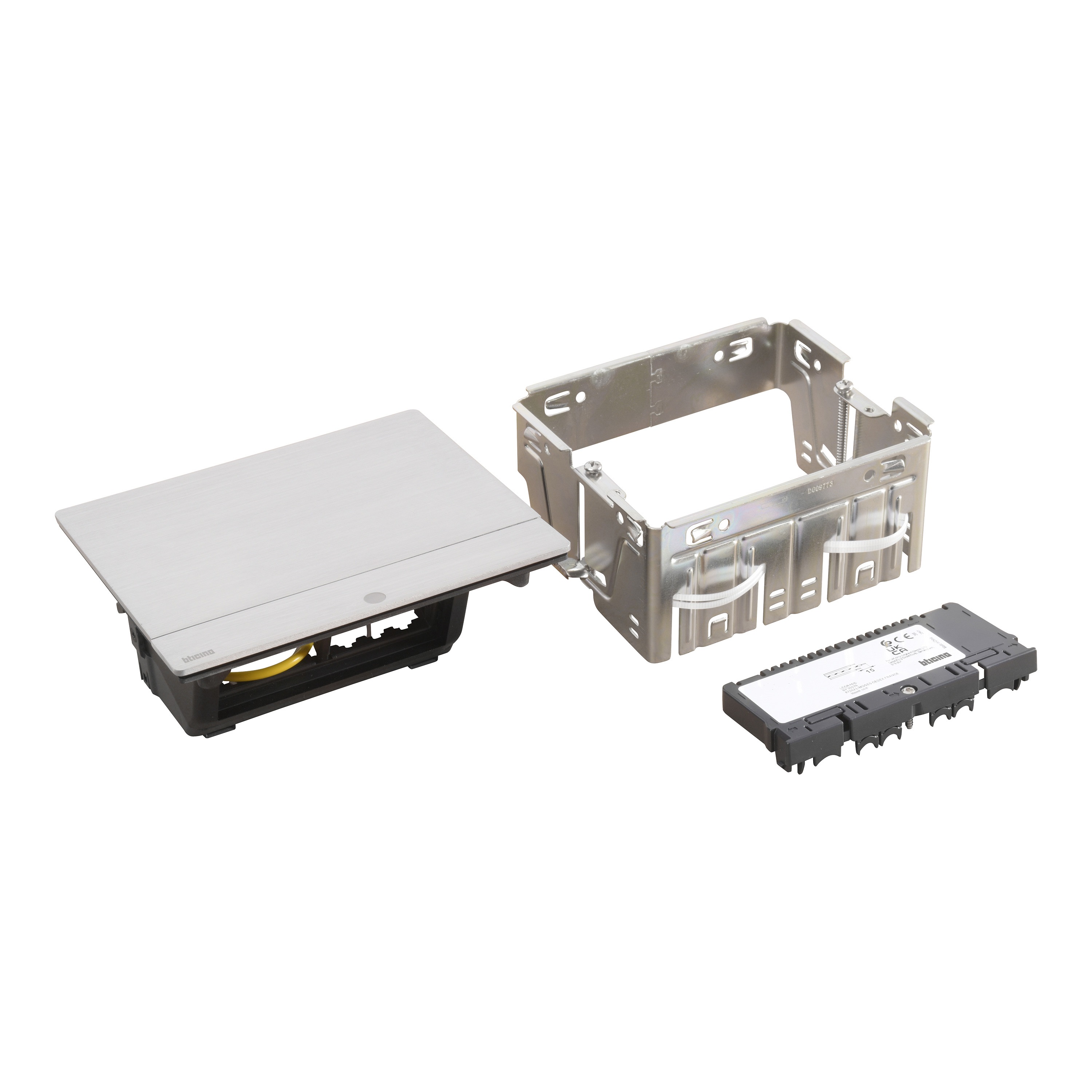

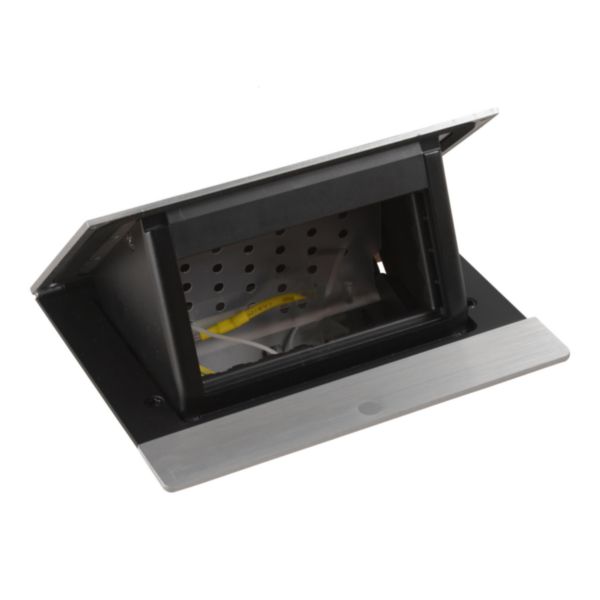

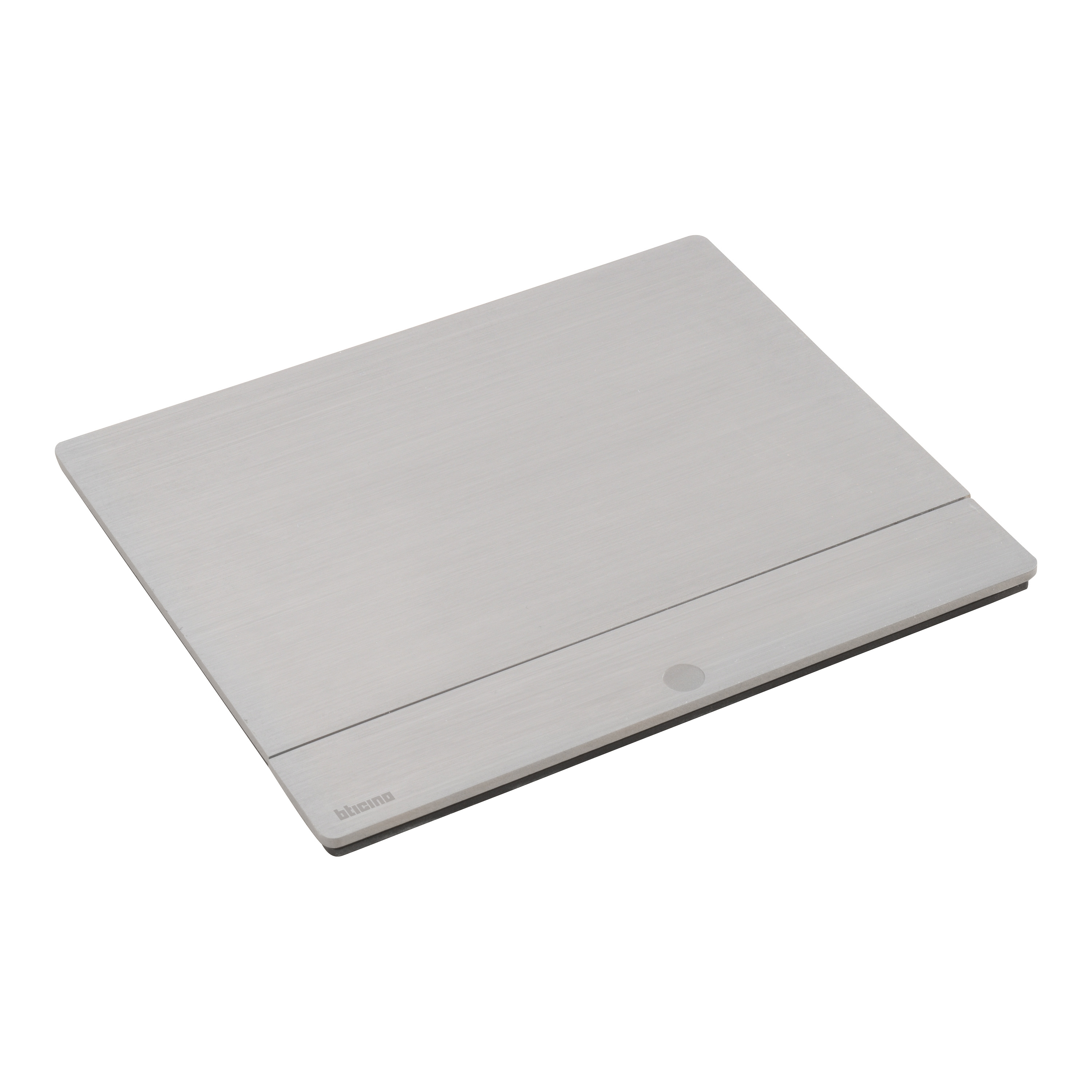

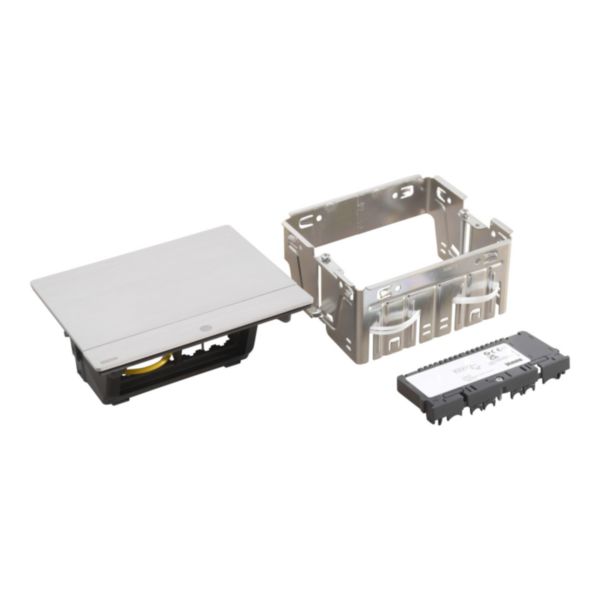

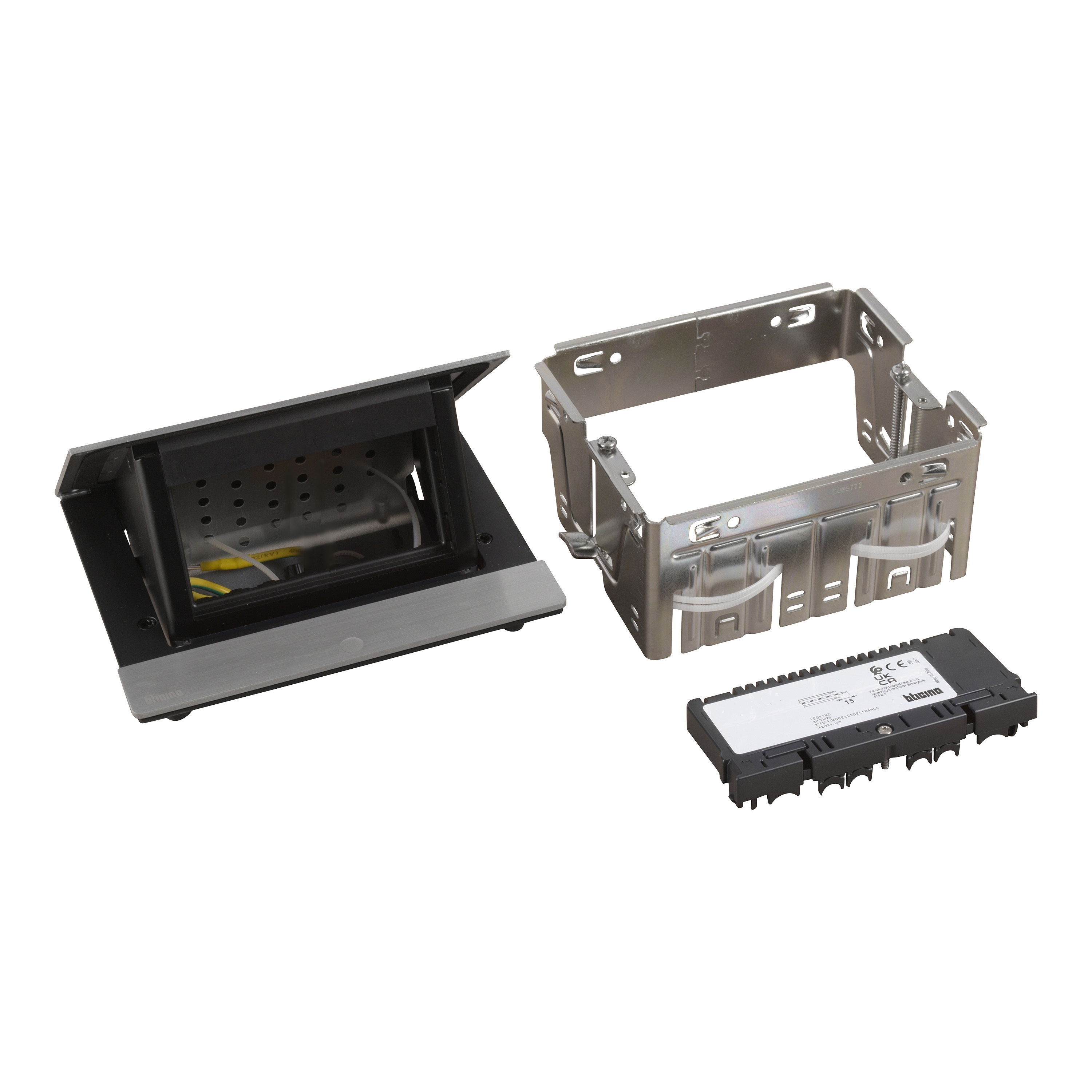

Pop-up - For flush mounting in furniture. 4 modules - Cover finish Brushed aluminum

BT-150440NS | 8005543735732
Pop-up - For flush mounting in furniture, compatible desktop thickness 15 to 40 mm Metal. Protective film.To be equipped with MatixGO functions. 4 modules - Cover finish Brushed aluminum
Description

Incara Pop up is an elegant retractable in-desk solution designed to provide power and data close to the user

Product characteristics
  • Retractable unit 1 compartment
  • To be equipped with MatixGO functions
  • 4 modules
  • Brushed aluminium finish
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • To be used in furniture only.
Products benefits
Installation
  • Easy to install with the installation frame supplied. Can be mounted in most surfaces (wood, marble, granite…)
Usage
  • Discreet when closed; automatic opening by pressing the button
Advantages
  • Metal product to be embedded taking up little space on and under the furniture
Technical Characteristics
Model Built-in
Folding Yes
Extendable No
Shape Rectangular
Material Aluminium
Colour Silver
Degree of gloss Matt
Length 145.5 mm
Width 123.5 mm
Height 5.2 mm
Built-in depth 74.5 mm
Number of socket outlets with protective contact CEE 7/3 (type F) 0
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of socket outlets Italian standard type P40 L/F 0
With on/off switch No
Number of HDMI connections 0
Number of D-Sub connections 15-pole 0
Number of audio connections 0
Number of CAT 5E connections 0
Number of CAT 6 connections 0
Number of CAT 6A connections 0
Number of empty module positions 4
Number of miniature circuit breakers (MCB) 0
Overvoltage protection No
Mains filter No
With built-in USB power supply No
Nominal voltage 0 V
Degree of protection (IP) IP20
degree of impact strength (IK) IK07
Antimicrobial treatment No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type Not applicable
Supply current (Min-Max) 0-0 A
Terminal marking indication No
RAL-number 7035
Halogen free Yes
Prewired No
Connection type Not applicable
Terminals capacity (Min-Max) 0-0 mm²
Label space/information surface No
