  5. BT-129201NNR
  • Curve single-face column in aluminium height 2780 - 4060 mm. Black
Interlink Office BTicino

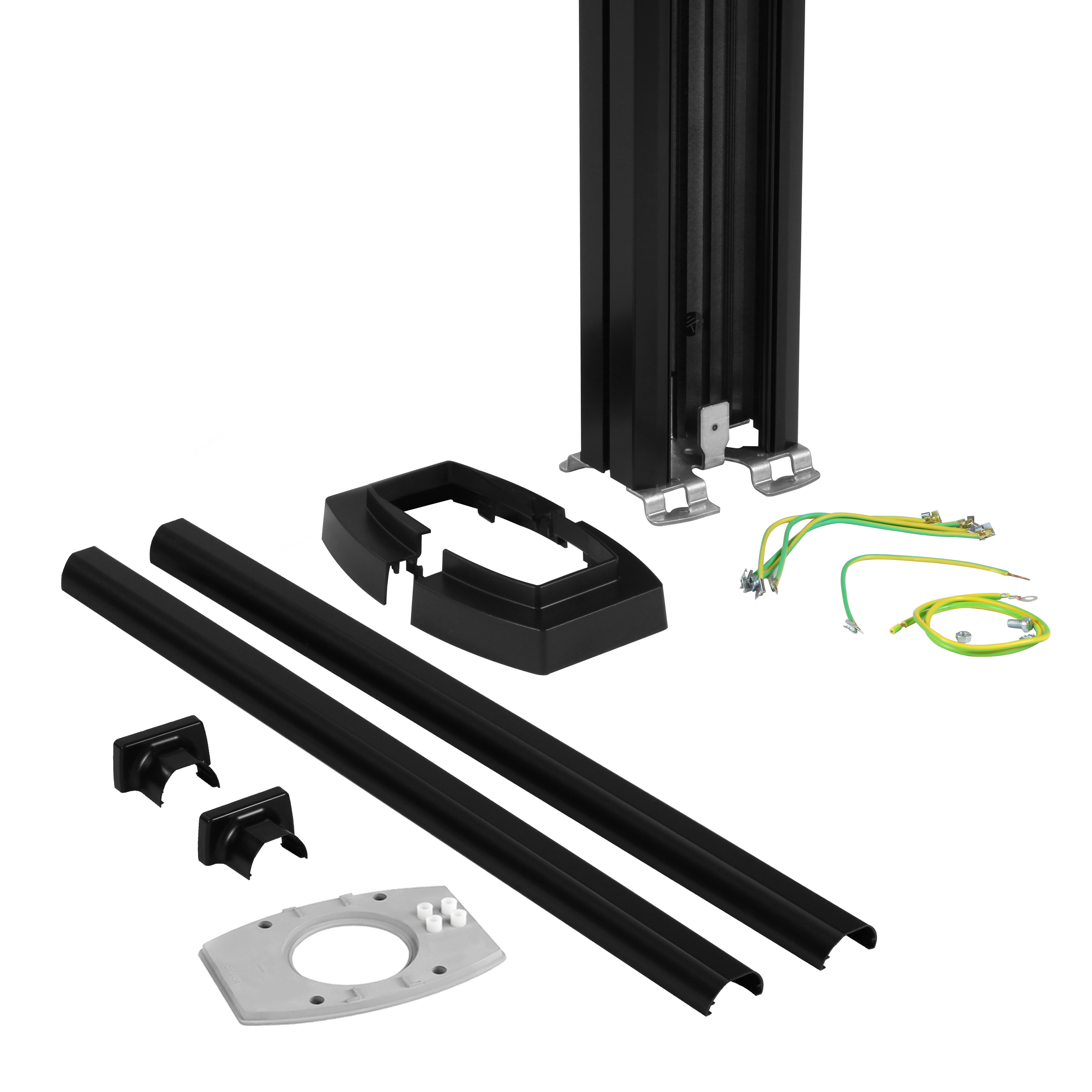

Curve single-face column in aluminium height 2780 - 4060 mm. Black

BT-129201NNR | 8005543630150
Interlink - curve single-face column in aluminium height 2780 - 4060 mm. Black
Technical Characteristics
Pillar shape Rectangular
Model Single-sided
Pre-wired No
Adjustable Yes
Height levelling 1280 mm
Column height (Min-Max) 2770-4050 mm
Number of usable covers 1
Cover width 80 mm
Cover depth 0 mm
Type of fastening Screwing
Place variable No
Suitable for ceiling mounting Yes
Suitable for floor mounting Yes
Cable entry Top/bottom
Through-going profile No
Material installation column Aluminium
Material quality installation column Other
Material installation column halogen free Yes
Surface protection column Other
Colour column Black
RAL-number column 9005
Material cover Aluminium
Material quality cover Other
Material cover halogen free Yes
Cover surface Other
Colour top cover Black
RAL-number cover 9005
Number of partitions 0
Usable cross section 6900 mm²
Documentation
1 documents
Instruction Use
LE11083AA_02 | PDF (2.6 MB)
2 documents
BIM Data
BIM_BTICINO_UNIVERSAL_COLUMNS_EN | RFA (1 MB) | EN
BIM Data
BIM_BTICINO_UNIVERSAL_MINI_COLUMNS_EN | RFA (872 KB) | EN
1 documents
Brochure
3224702 | PDF (51 MB) | EN
