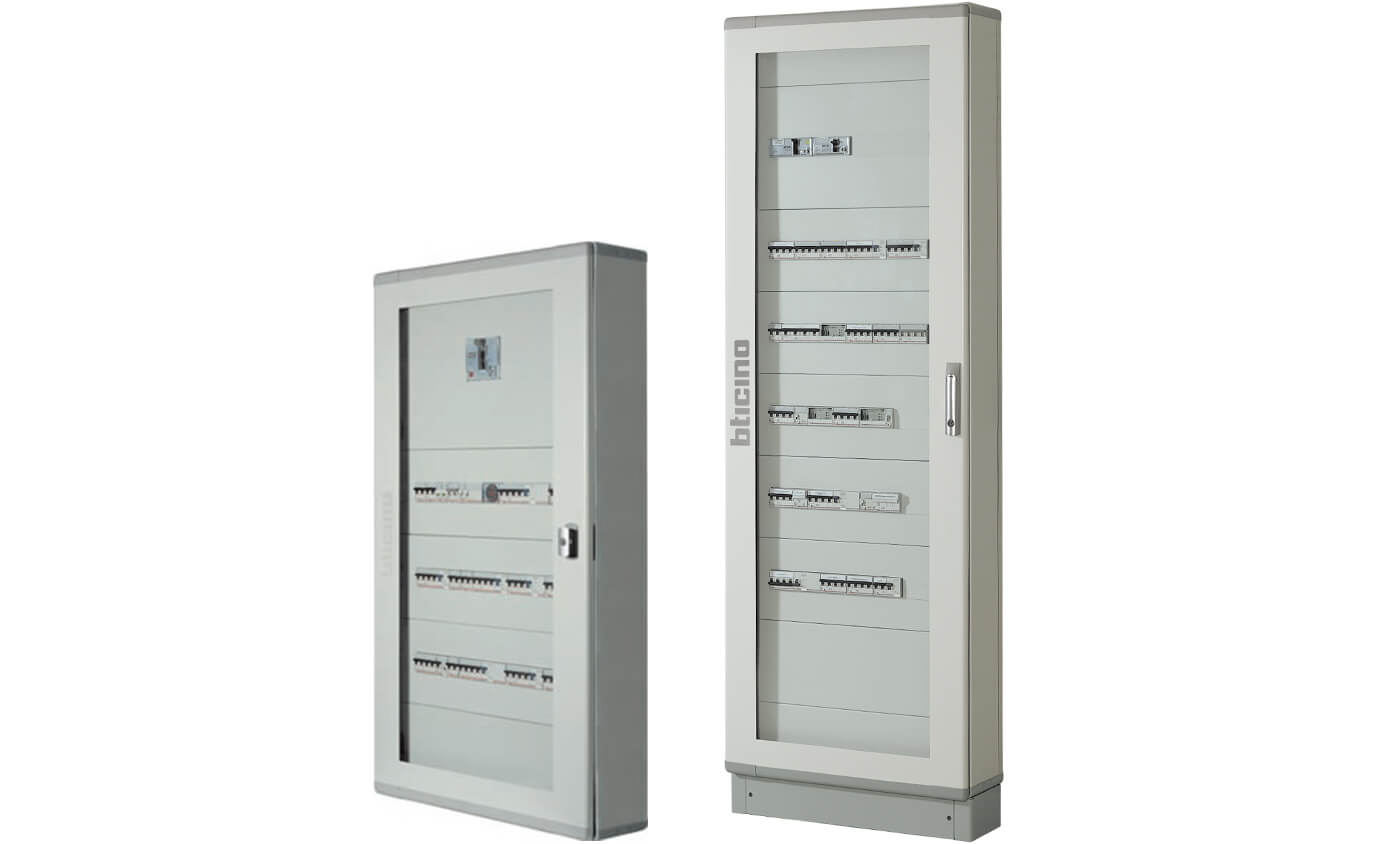

MAS400, compact panelboards and enclosures
MAS400 is the range of modular and monobloc panelboards and cabinets up to 400A for the tertiary and industrial sectors, the range is characterized by extreme compactness which allows maximum equipment in just 150 mm of internal depth.
Compact structures for wall and floor installation
MAS400 panelboards can be equipped with Btdin and Megatiker circuit-breakers up to 400A and can be equipped with the Easy Tifast 125, Easy Tifast 250/400 and Tifast Pettini rapid wiring system.
MAS400 switchboards are available in three types of structures:
- LDX-P Plastic switchboards with double insulation with modular structure, with IP43 degree of protection and maximum current of 630A (in the front switchboard version).
- LDX400 Metal switchboards and cabinets with modular structure, with IP43 degree of protection and maximum current of 400A.
- MDX400 Monobloc metal switchboards, with IP65 protection degree and maximum current of 250A.

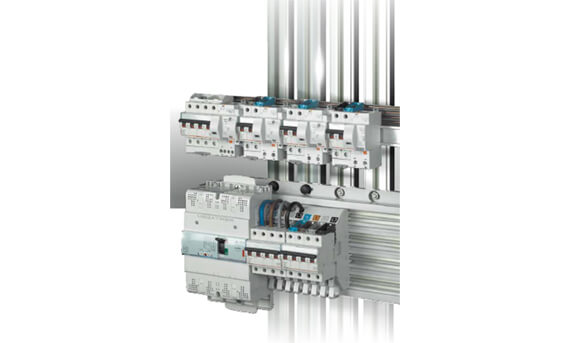

Fondoattivo Internal distribution system
Aluminum distribution system up to 400A to power Easy Tifast systems quickly and safely. The system includes a connection kit between the main switch and the distribution bars.

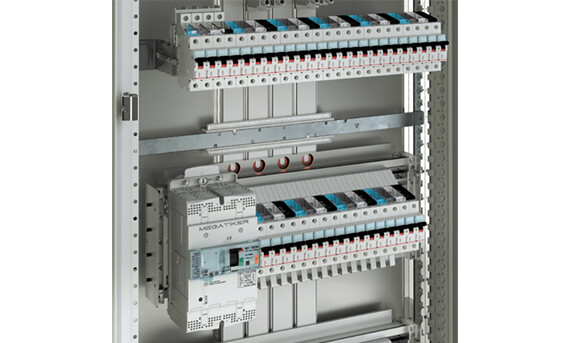

EASY TIFAST distribution system
The horizontal distribution system for Btdin and Megatiker up to 400 A with plug-in connection system. A flexible and configurable solution that allows you to rationalize the number of cables, simplifying installation and maintenance.
Three types of doors
Three different front doors are available:
- glass door
- convex glass door
- solid sheet metal door.

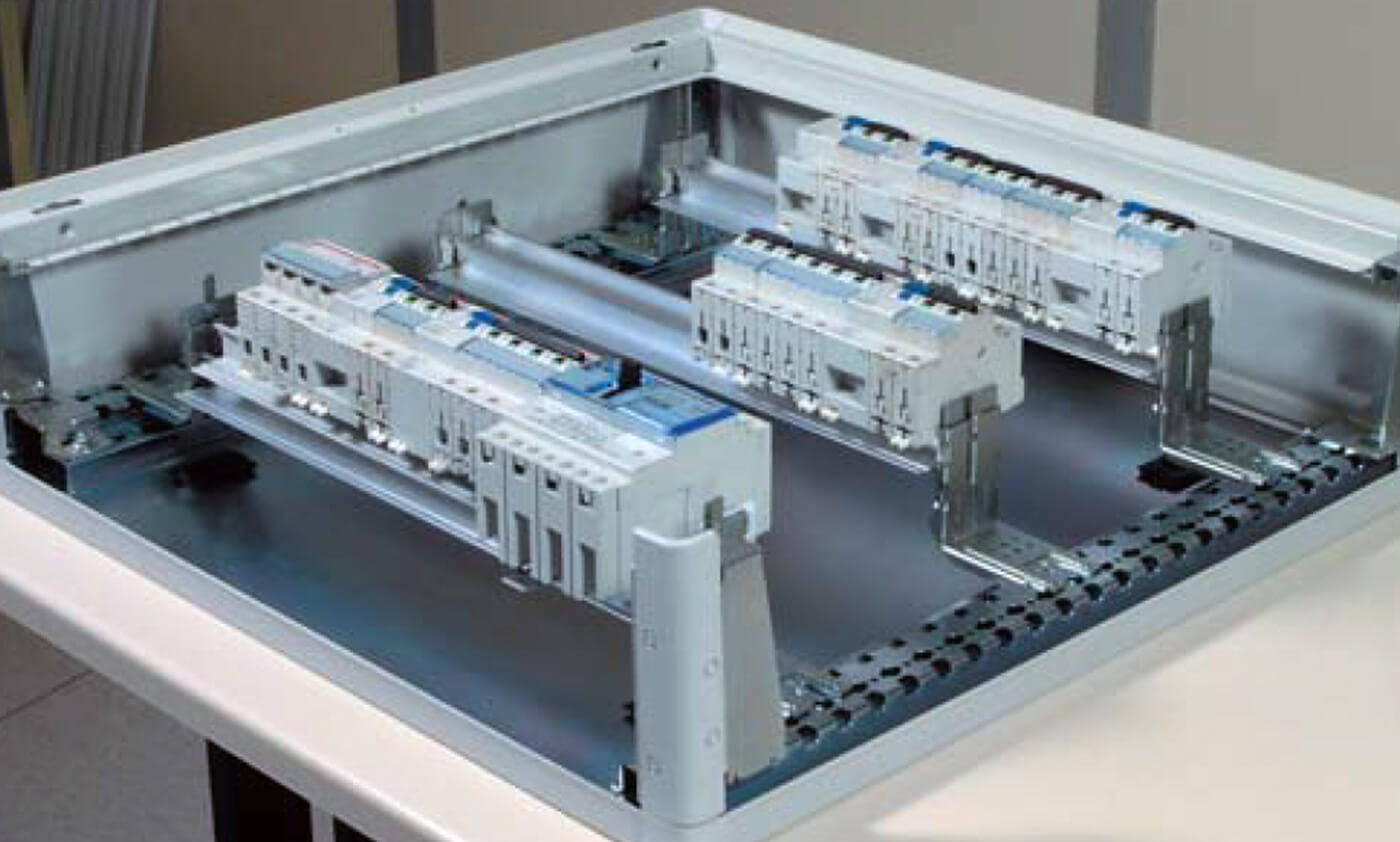

Modular structures LDX and LDX-P
The MAS structures have been designed to simplify and reduce assembly and wiring times. The modular structures can be wired "with an open panel", simplifying and reducing construction times.

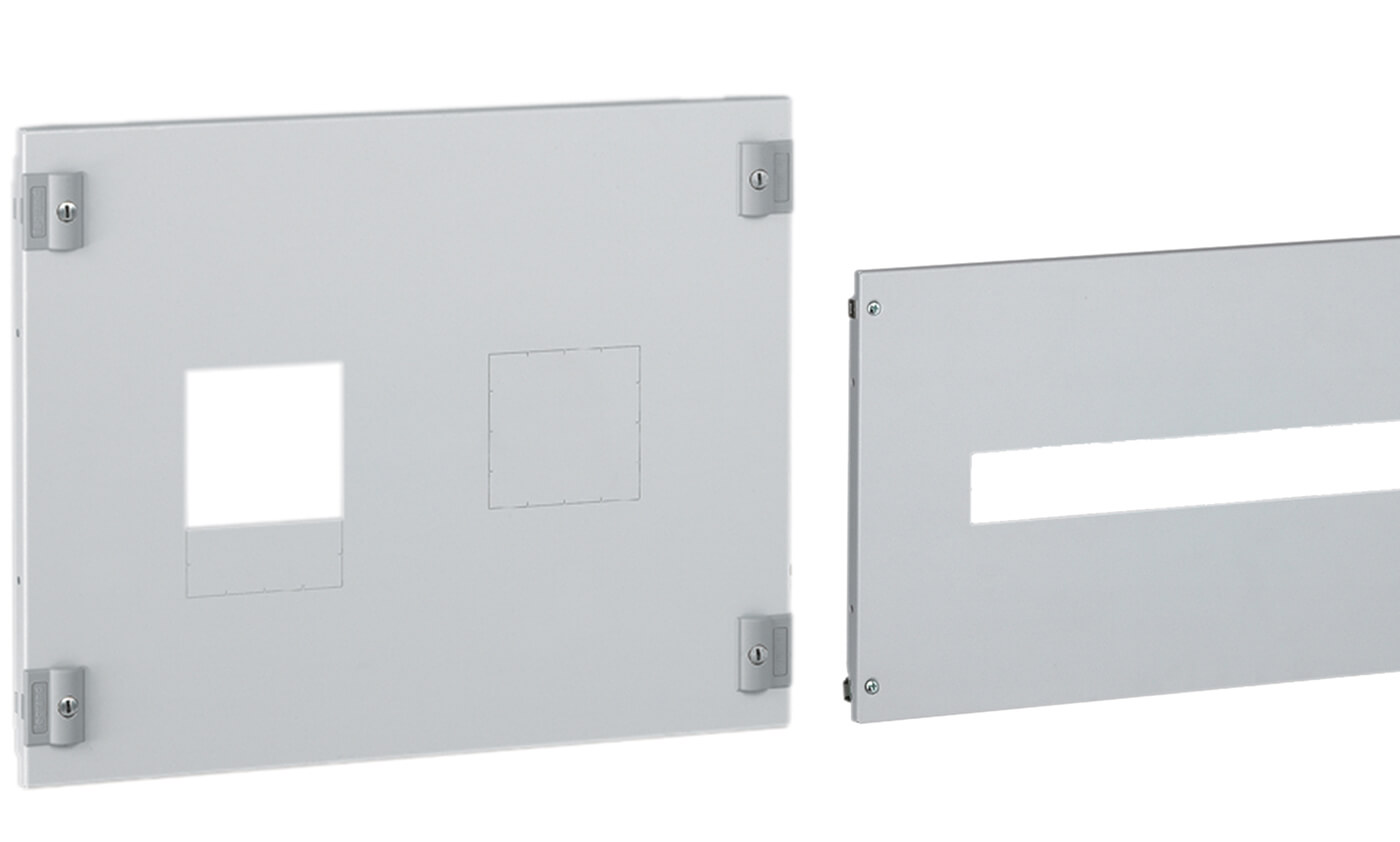

Different types of front panels
The individual front panels are available with different materials and closing systems: in sheet metal with 1/4 turn; in plastic with 1/4 turn; sheet metal screw. For screw and blind panels it is possible to additionally install the hinge.
