MAS160: Panelboards for wall and flush-mounting
MAS160 is the range of panelboards for the distribution of energy for the residential and commercial sectors, the offer includes surface-mounting and flush-mounting panelboards complete with panels and DIN rails with a capacity of up to 144 modules and IP43 protection degree.
Ease of use and maximum capacity
The MAS160 panelboards can be equipped with Btdin and Megatiker M1 160 and M2 250 circuit-breakers and can be equipped with the Easy Tifast 125 and Tifast Pettini quick wiring system.
They are easy to wire as they have a removable frame and removable sides (wall versions).

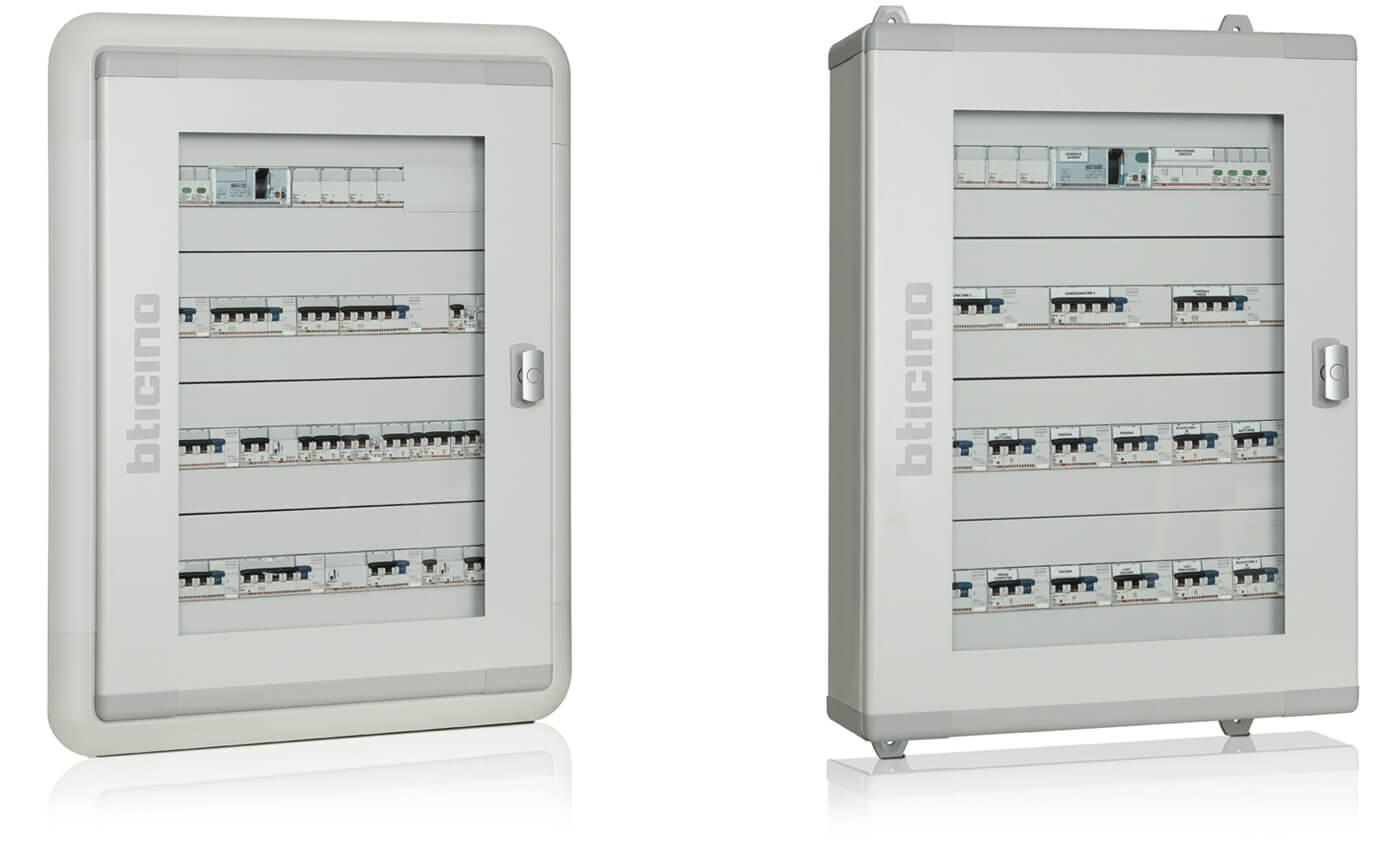

Available in three versions:
- Sheet metal wall;
- Plastic wall;
- Flush-mounting.

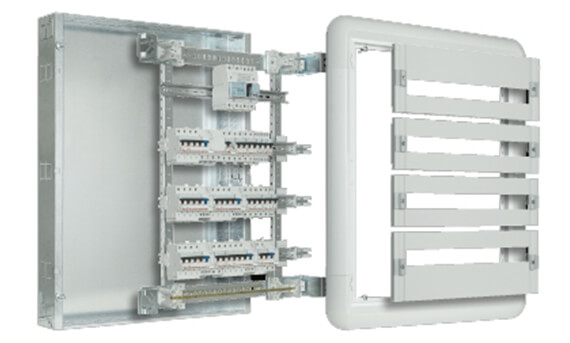

The frame of the built-in MAS160 is extractable and allows you to carry out the initial wiring of the switchboard comfortably on the bench.

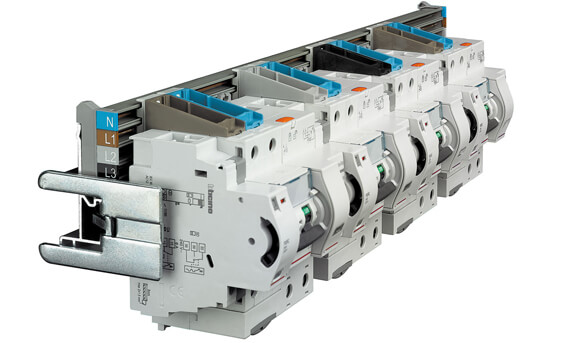

The horizontal distribution system for Btdin up to 125 A with plug-in connection system. A flexible and configurable solution that allows you to rationalize the number of cables, simplifying installation and maintenance.

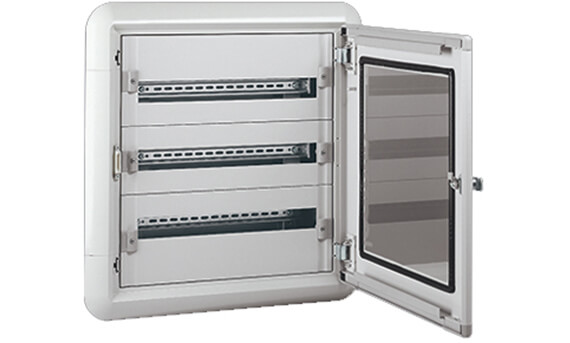

Flush-mounting switchboards from 48 to 144 modules are available, which can be equipped with a front door in glass or sheet metal or alternatively wall-mounted for surface installation with the same modularity.
Both versions can be equipped with front doors in glass or solid sheet metal to achieve the following degrees of protection: IP30 without door; IP40 with door; IP43 with door and gasket.

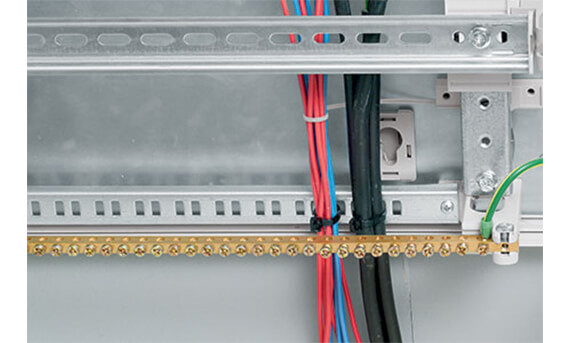

A wide range of accessories is available for all switchboards to make internal wiring easier and tidier.

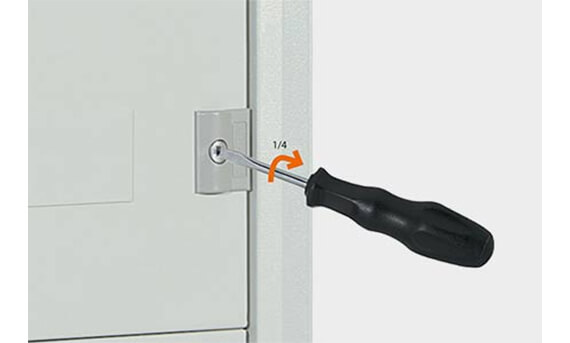

The individual front closure panels are equipped with an easy-grip 1/4 turn quick-connect system.
