XCP busbars

630 to 6300 A resin busbars

Zucchini busbar for the distribution of energy in high-power systems

XCP is the Zucchini busbar trunking system suitable for the transport and distribution of energy in industrial, commercial and service plants and also in riser installations (in cavity).

Characterized by an extra-compact design and available with aluminium or copper conductors, it is the solution dedicated to high power distribution, thanks to the wide availability of capacities ranging from 630 A up to 6300 A.

The XCP busbar trunking system consists of 2 different product lines: XCP-S and XCP-HP.

While maintaining the same basic characteristics, such as the range of rated current, the construction materials and the same amount of accessories available, XCP-S and XCP-HP have different properties that make them able to satisfy all the demands of the world market.

XCP-S is the optimised solution for the most common performance requirements.
The optimised sections of internal conductors allow this busbar to be lighter and more compact than XCP-HP, making it the right choice for standard applications.

XCP-HP is the busbar system characterised by higher performance on energy saving and higher short circuit withstand. It is designed to work at 50 °C of ambient temperature.

Thanks to these features, XCP-HP is the ideal solution for heavy duty applications, higher temperature environments and installations where high energy efficiency is required.

Straight elements

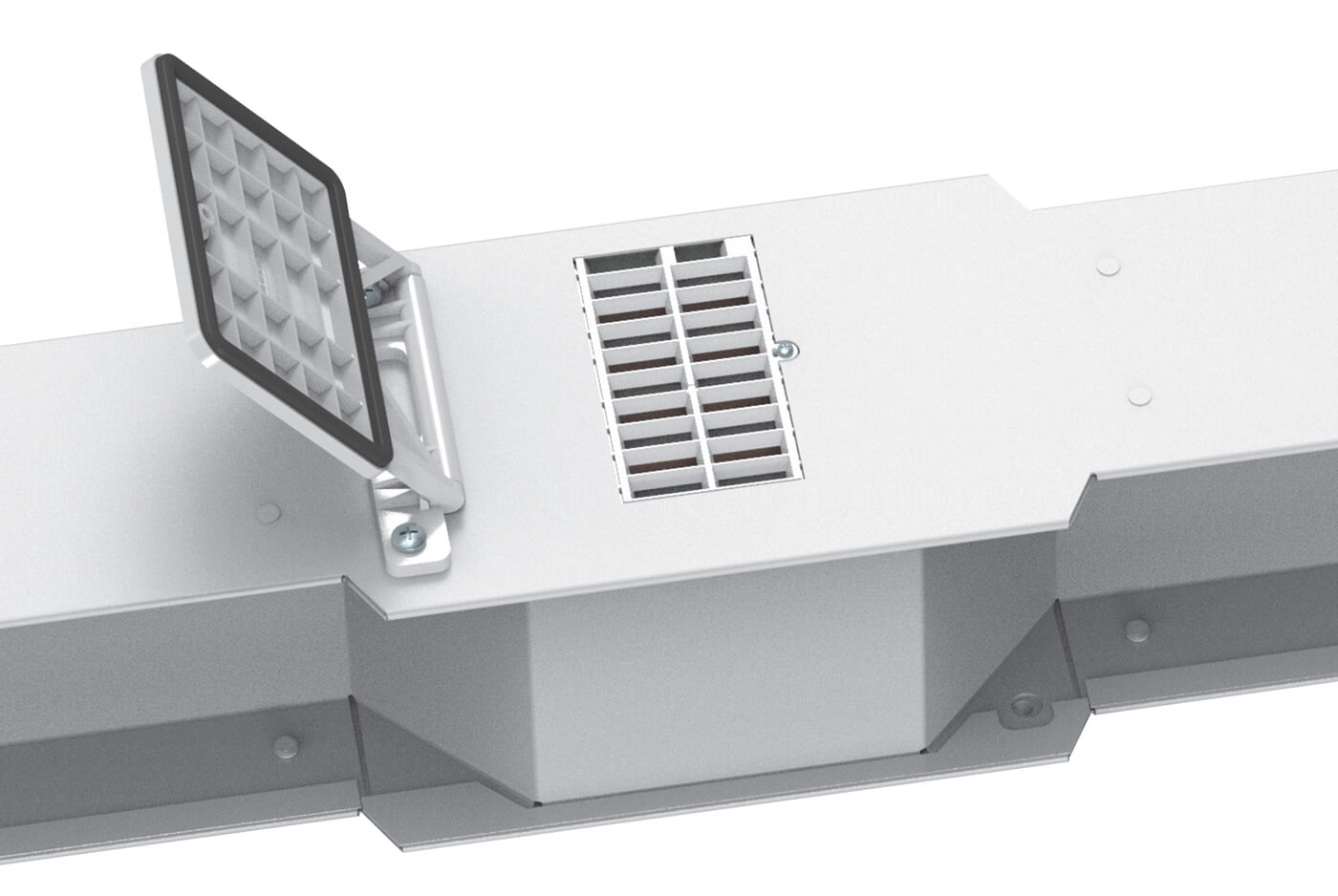

XCP includes all the necessary components to enable any path for the busbar run that the project requires. The straight elements are available in versions for transport and distribution (with tap-off outlets) of high-power energy.

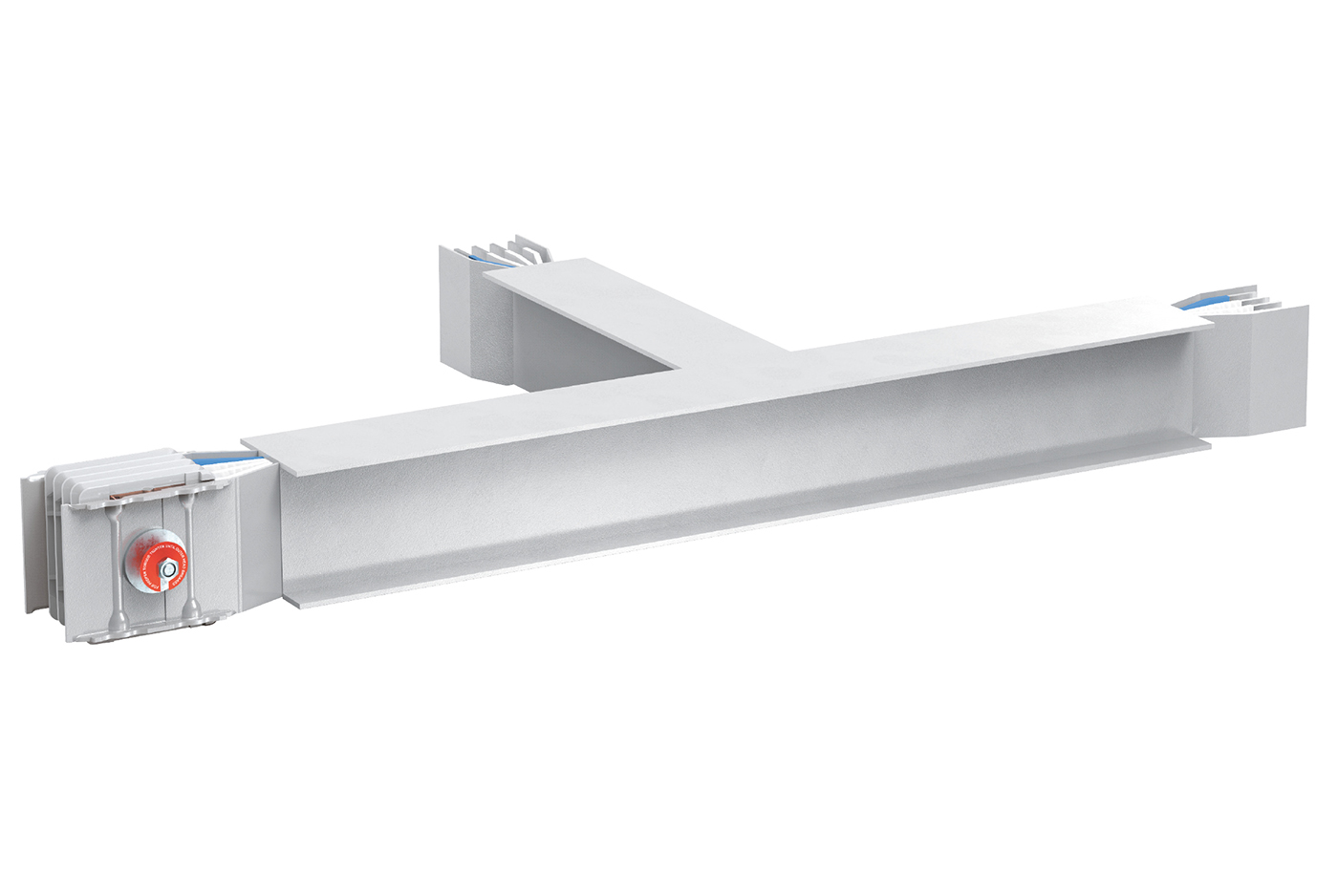

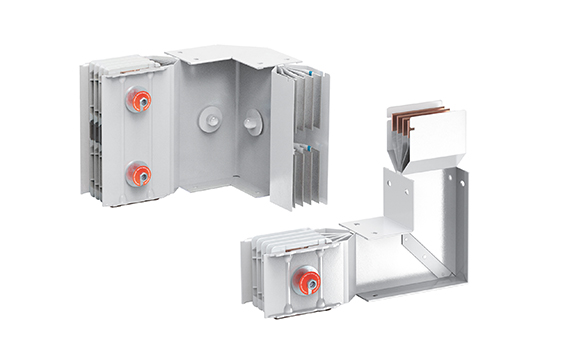

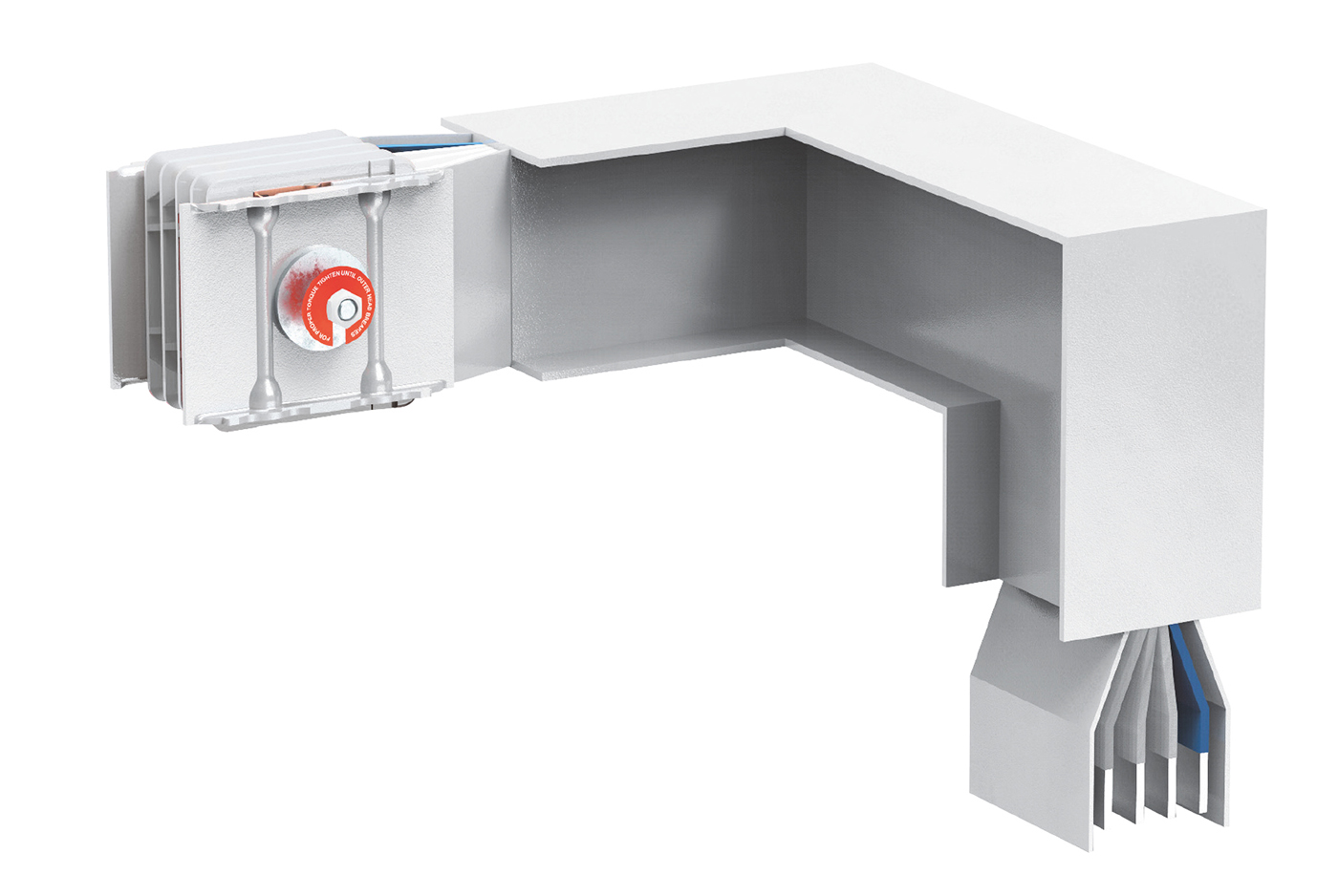

Elbows

Suitable for making changes of direction, available in standard or special version. Supplied with junction monobloc preassembled in the factory.

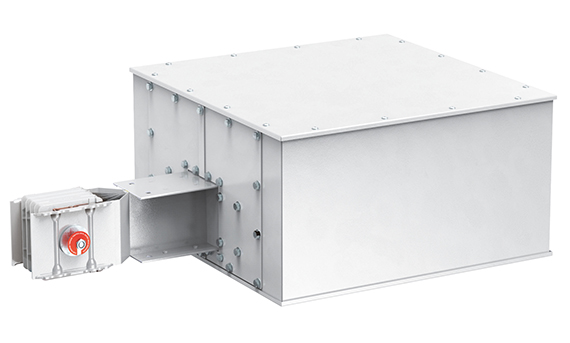

Feed units

They allow to electrically feed XCP and are available in standard version or as a variant for vertical power lines, riser mains lines.

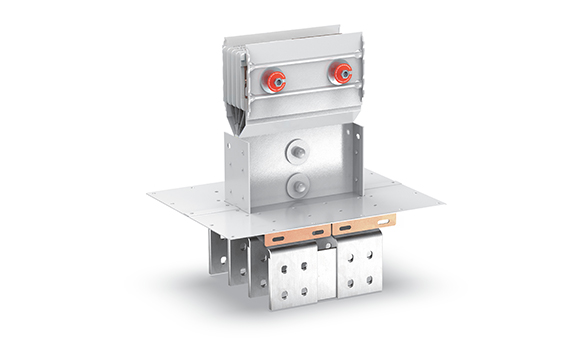

Connection interfaces with exit bars

Element used at the end of the lines to connect the busbar to boards or transformers.

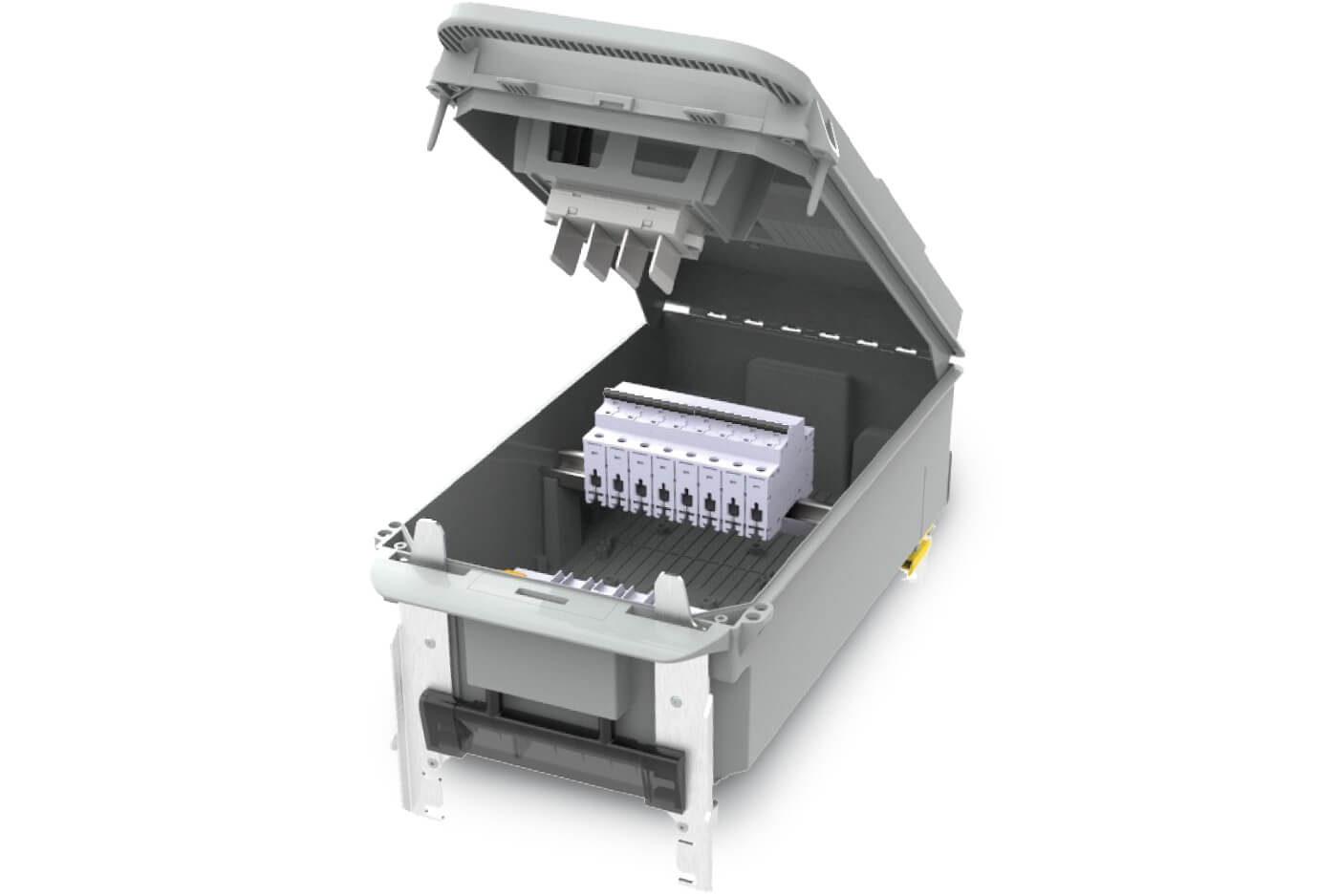

Tap-off boxes

Accessories for connecting and energizing electrical loads. The new tap-off boxes are available in two different construction materials:

25% fiberglass with rating up to 250 A, plug-in type (to be installed on outlets)
with metal sheet case, with rating up to 630 A for plug-in type (to be installed on outlets) and up to 1250 A for bolt-on type (to be installed on the junction).

They are universal and therefore can be used on both (XCP-S and XCP-HP) product lines.
