CONTO is the family of smart meters which, in addition to energy metering, offer a complete overview of the main electrical parameters. The range includes: Solutions for single-phase and three-phase measurements MID versions Direct connection version up to 125A CT insertion versions.
THE MAIN FEATURES OF THE RANGE ARE:
- Backlit graphic display
- Measurement on 4 quadrants
- Multimeasurement
- MID certified versions
- Active energy accuracy: Class B according to EN50470 (MID version) Class 1 according to EN/IEC 62053-23
- Standard sealable terminal blocks
- Versions with pulse output or Modbus or Mbus communication.
Through the dedicated interfaces it is possible to communicate with Ethernet or KNX protocols. 1 measurement input for other quantities such as water or gas or alternatively double tariff input.
Effective energy management
Thanks to the models equipped with RS485 Modbus RTU or M-Bus communication, the energy meters can be integrated into energy monitoring systems. The models equipped with RS485 Modbus communication can be combined with the RS485/Ethernet network interfaces or the WebServer to allow management from PC or tablet via web pages.
Solutions for direct connection up to 125A
Single-phase and three-phase meters with direct connection up to 125 A and insertion meters via CT/VT in just 6 DIN modules.

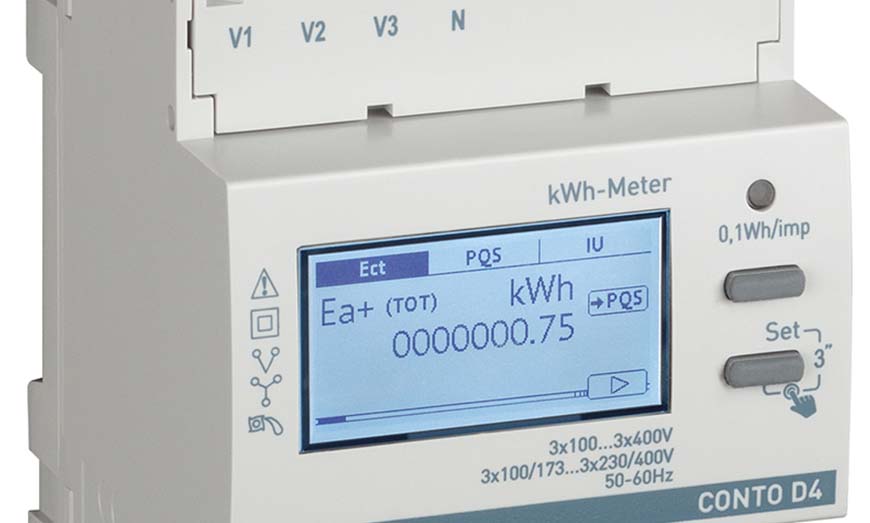

Backlit display
The energy values are all shown with 9 digits which allows for a longer duration of counting.
Features are:
- Backlit display
- Simplified modes of reading mode, next page preview, settings...
- Bidirectional measurement (E + and E-)
- Measurement of active and reactive energy partials
Integrated communication functions
CONTO meters are set up for communication with different standards, depending on the type. The main communication features they are equipped with:
- Modbus or Mbus or pulse communication
- Integrated 120 Ω termination resistor in the programmable menu.
- Integrated pulse input - Input for measuring gas or water or similar.
Alternatively, the entrance can be used to manage the double tariff.
Consumption control and management

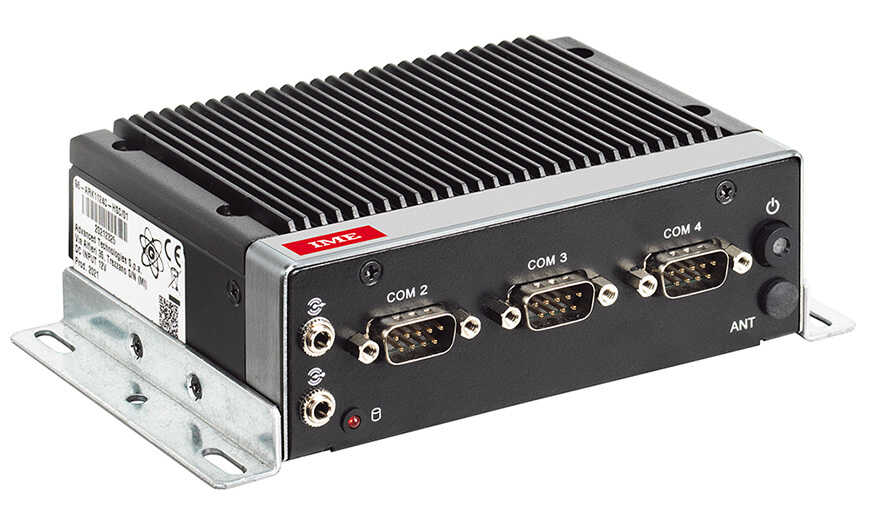

Thanks to the Webservers combined with meters, multifunctions or the NEMO SX system, it is possible to:
- analyze data and improve processes
- determine the annual energy requirement and define a distribution of consumption
- analyze evolution over time to monitor performance
- manage multi-site electrical installations remotely and/or locally using smartphones, tablets, PCs, etc.

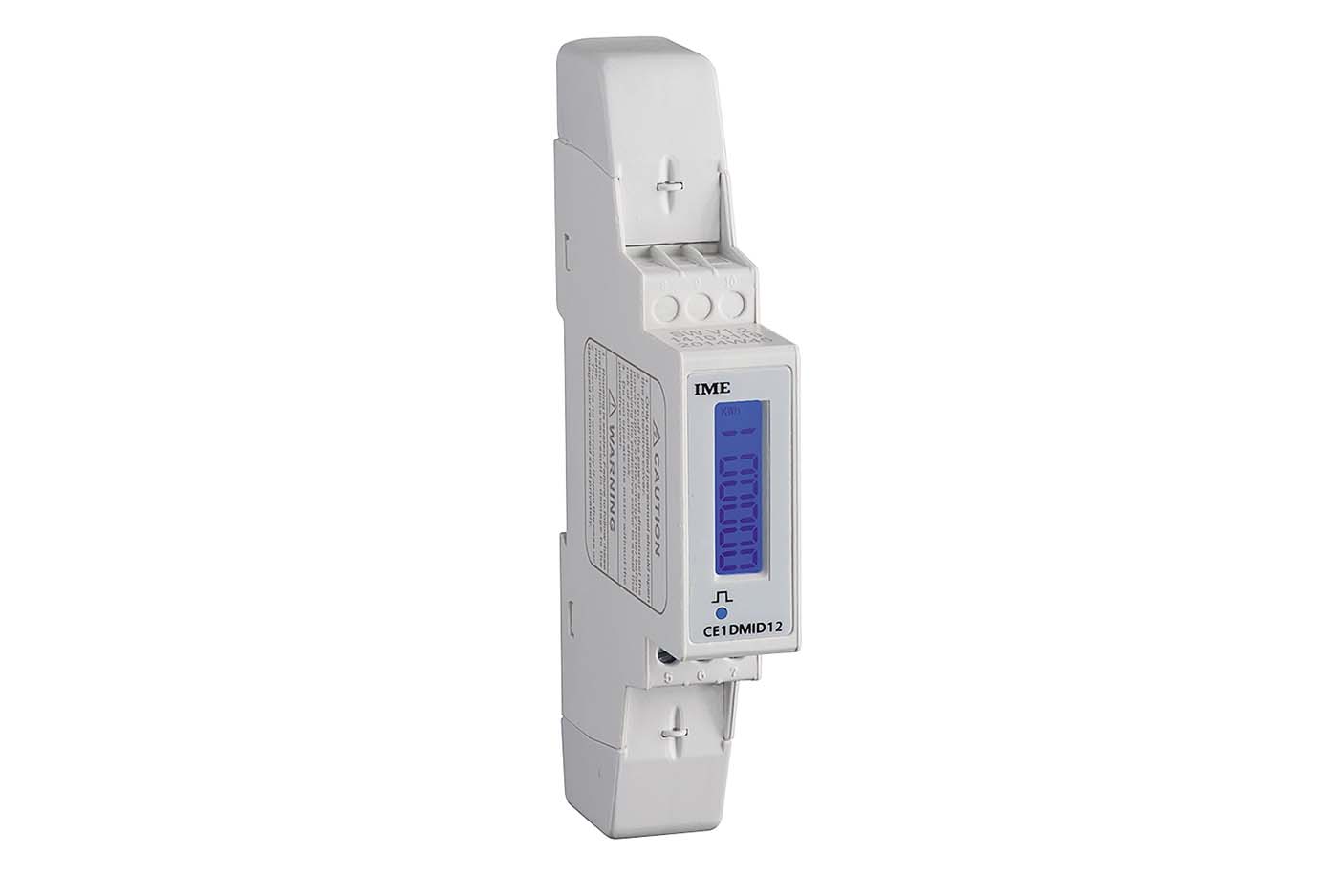

IME-CE1DMID12

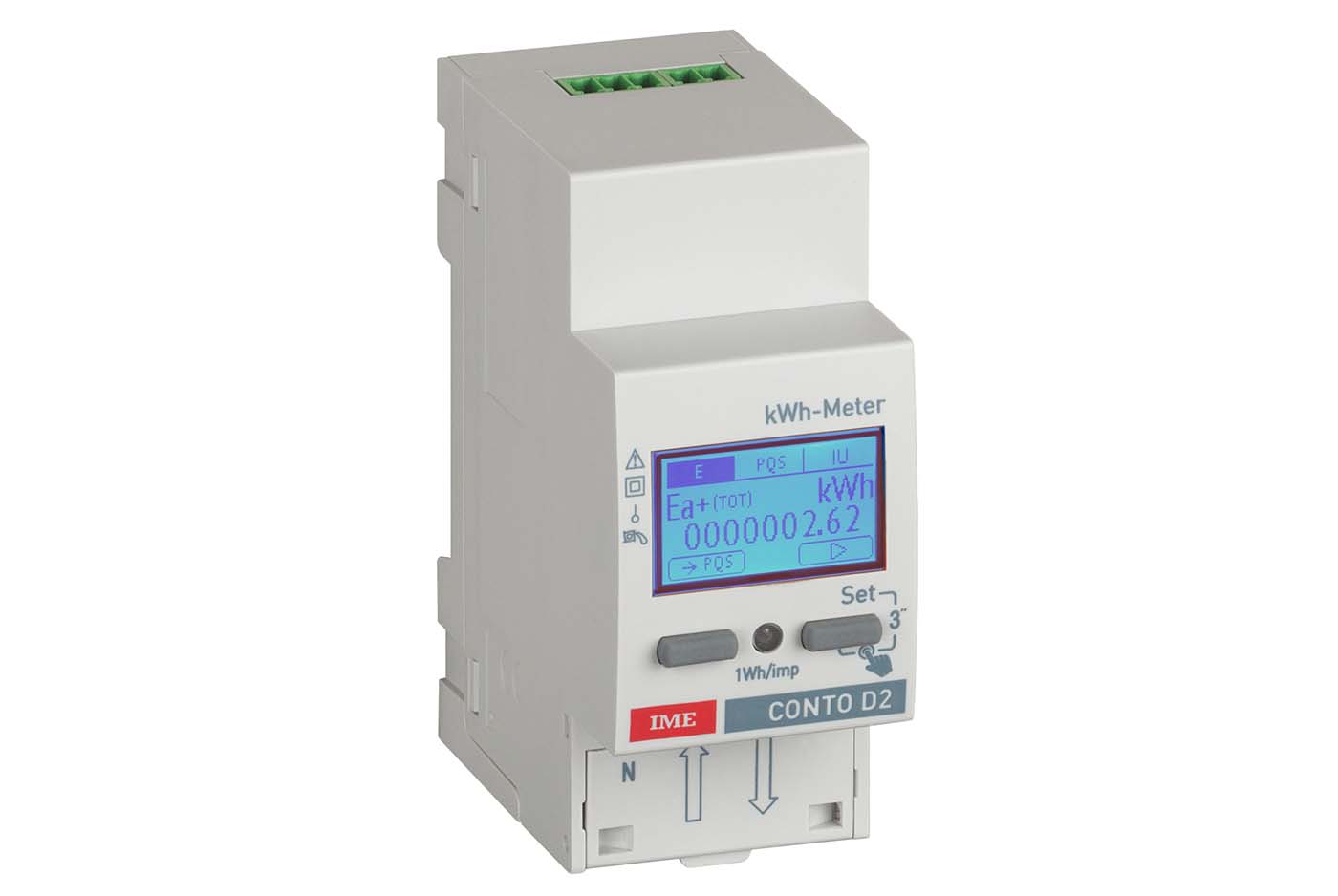

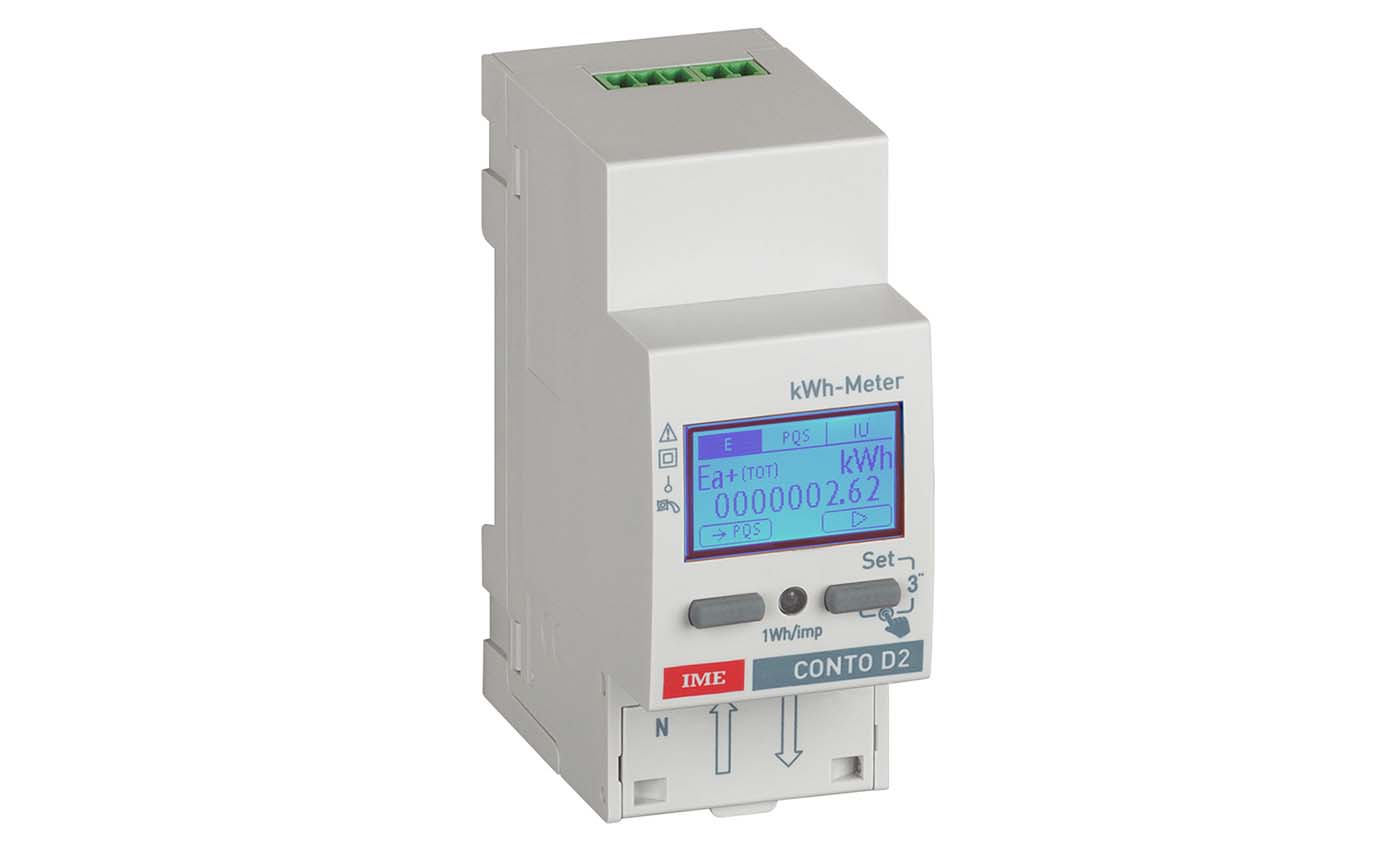

IME-CE2DF3DTCL1

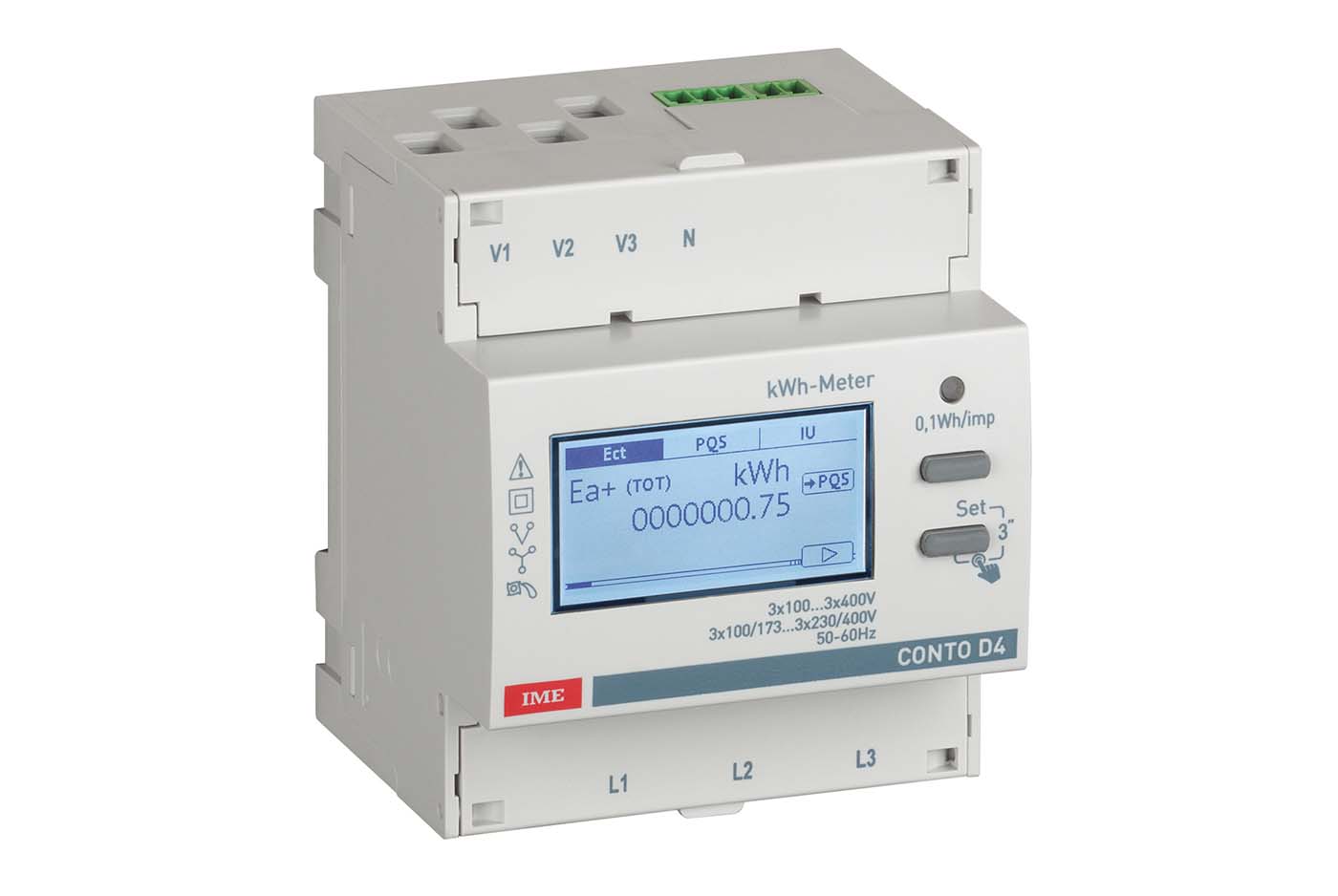

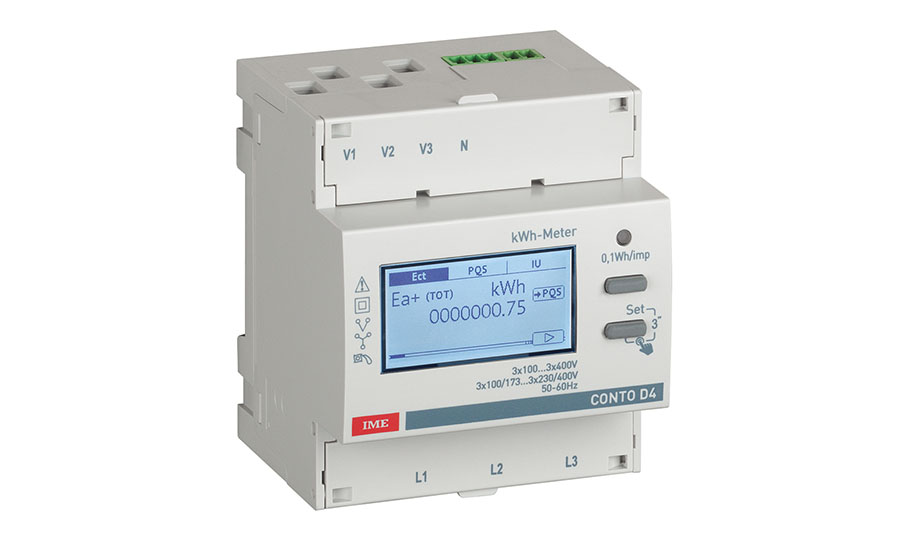

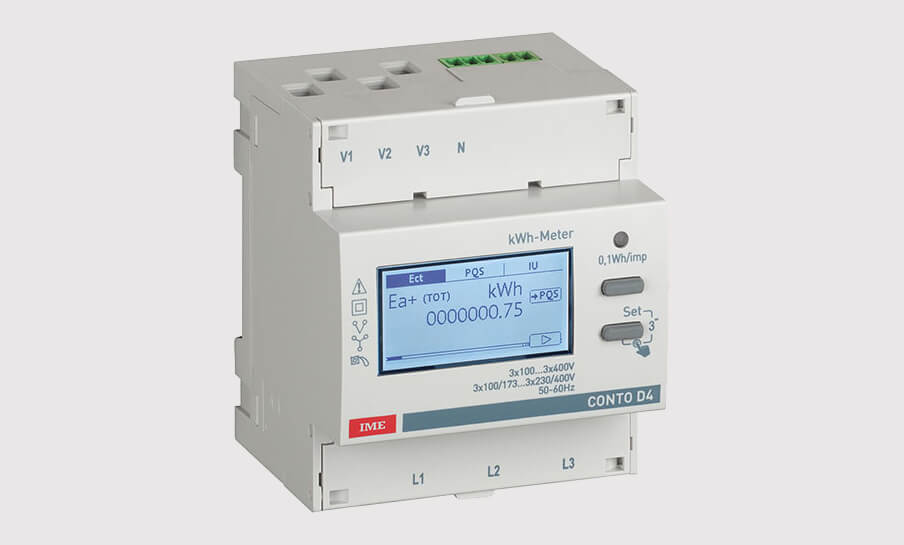

IME-CE4DF30PCL1

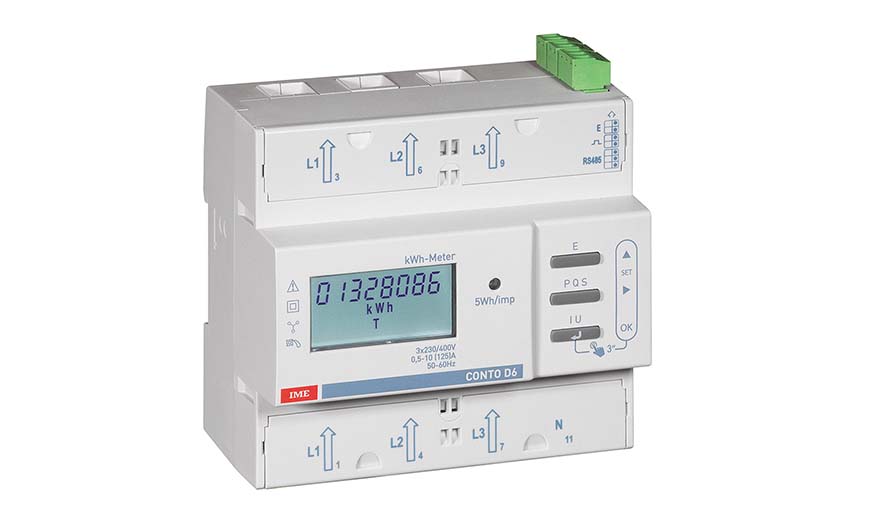

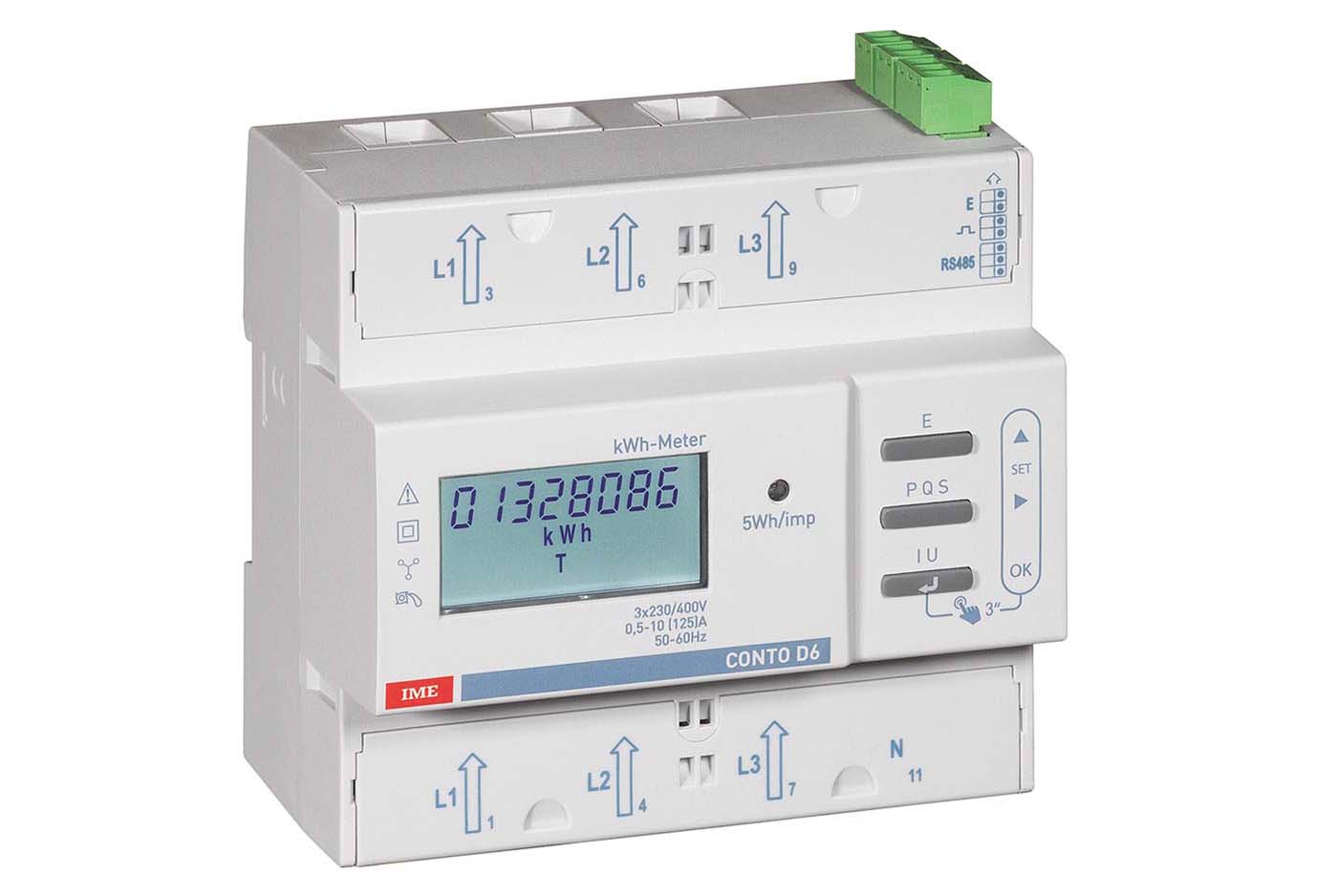

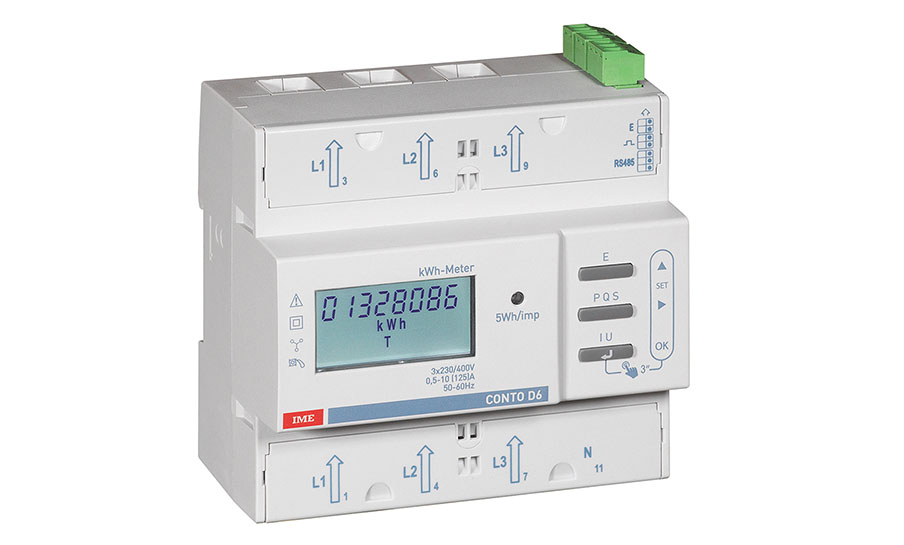

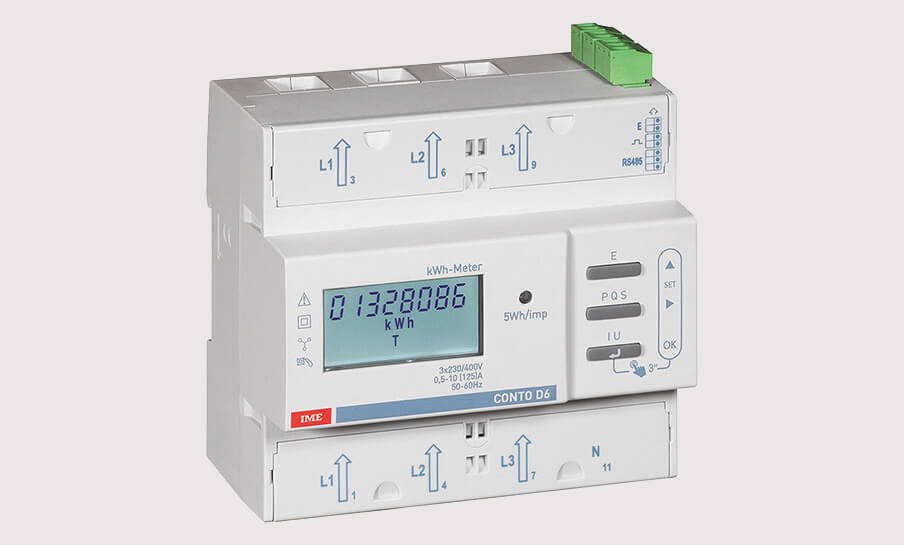

IME-CE6DT1256

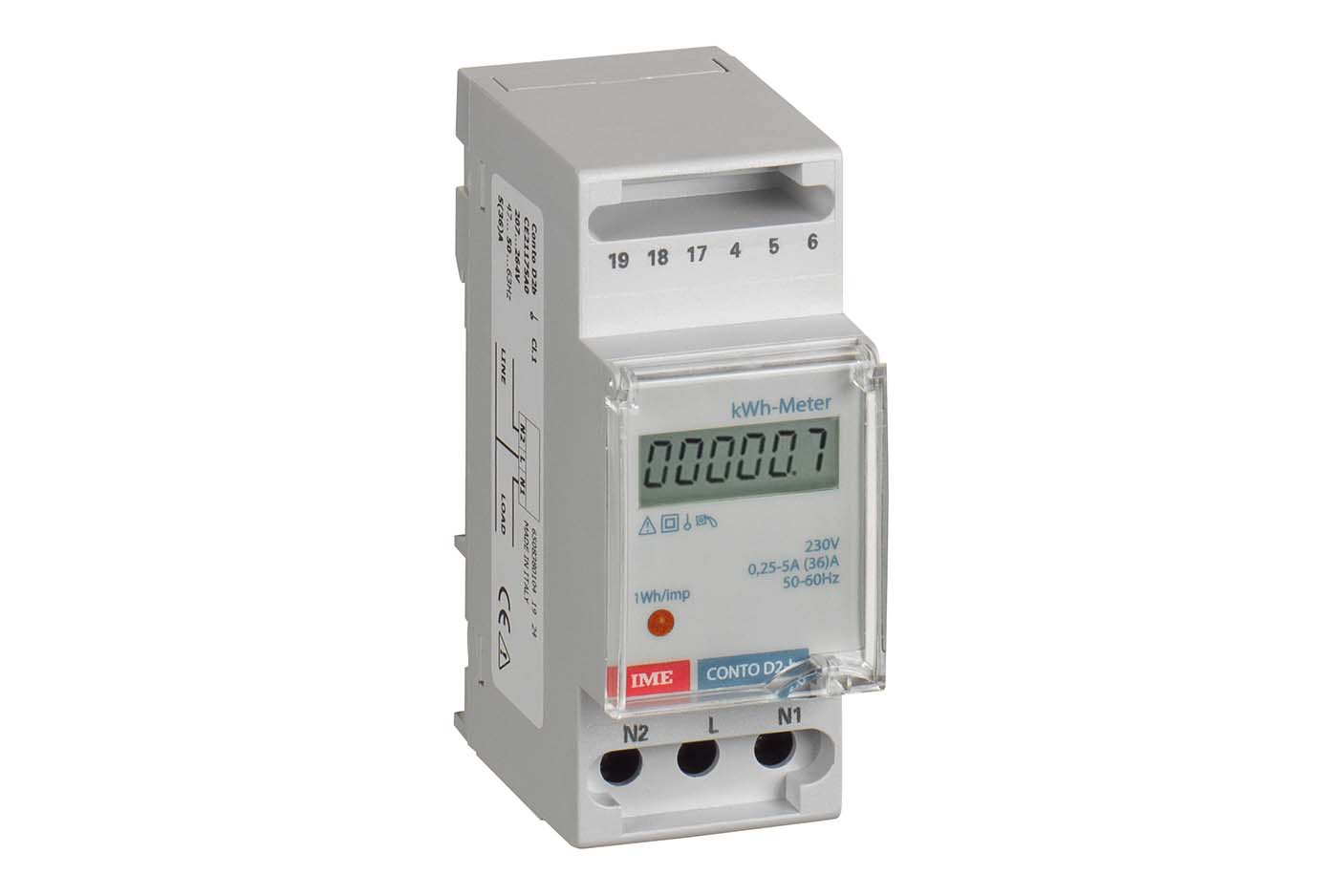

IME-CE211T5A0

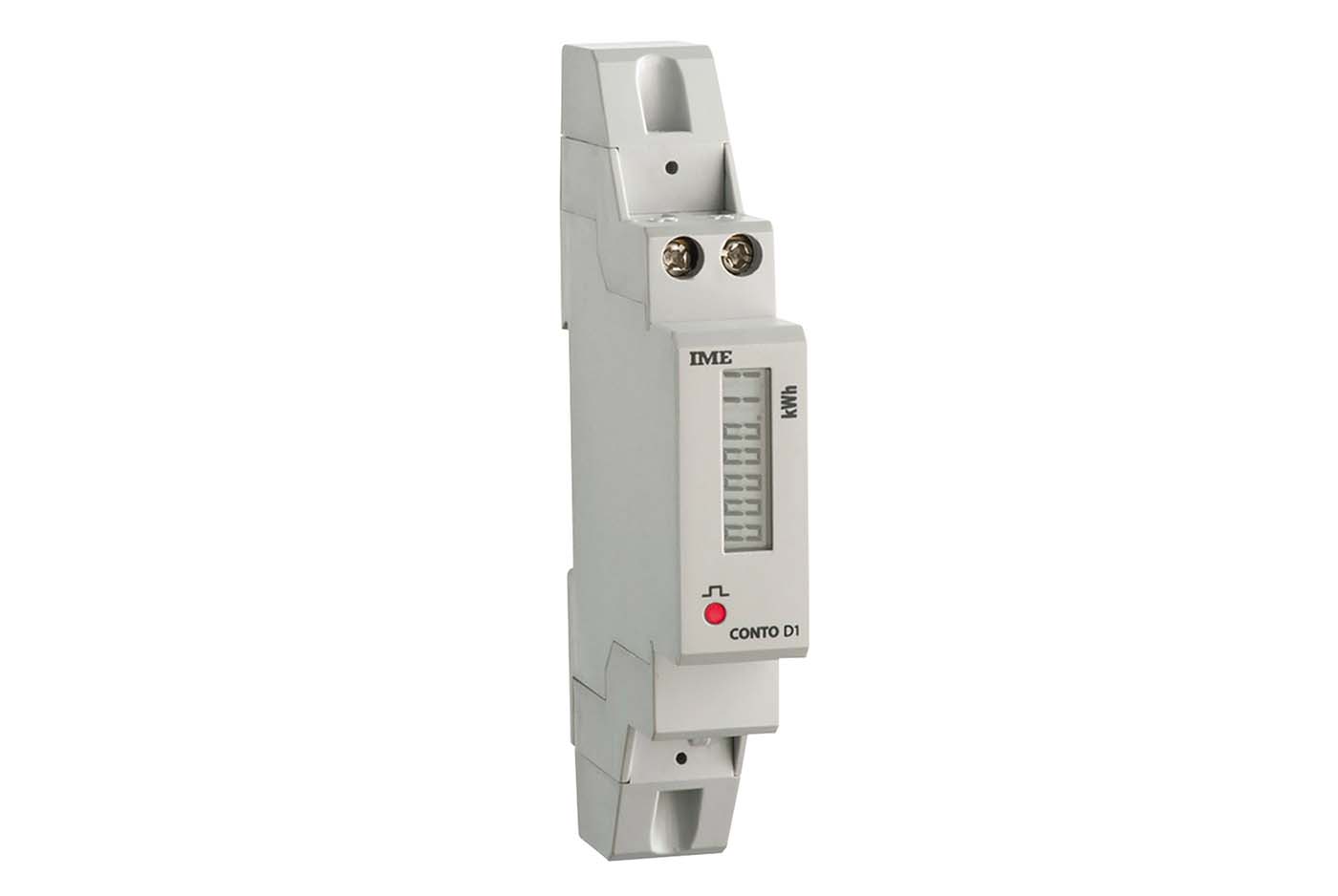

IME-CE11165A2

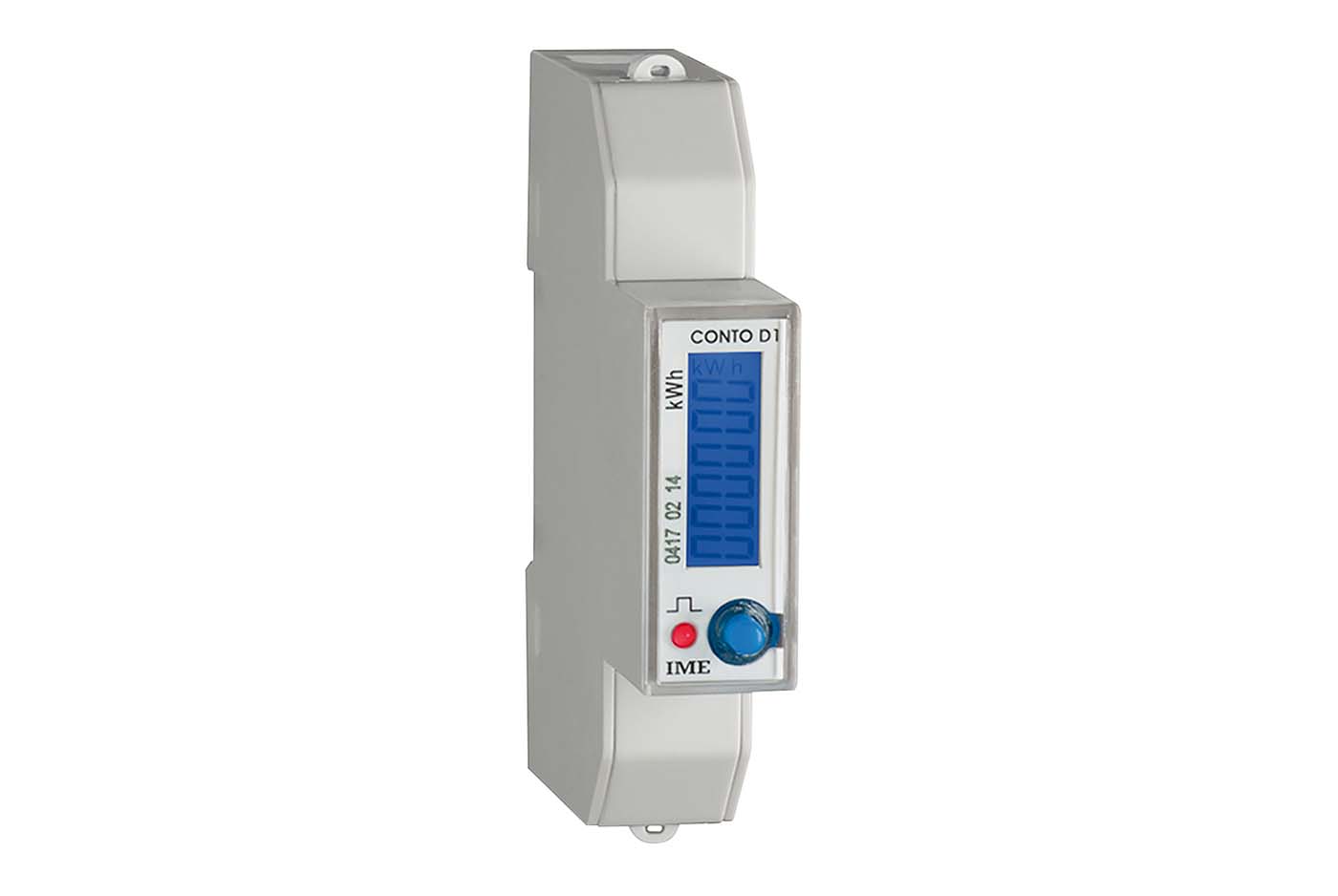

IME-CE11165A4
