MAS800 – Panelboards and enclosures for distribution

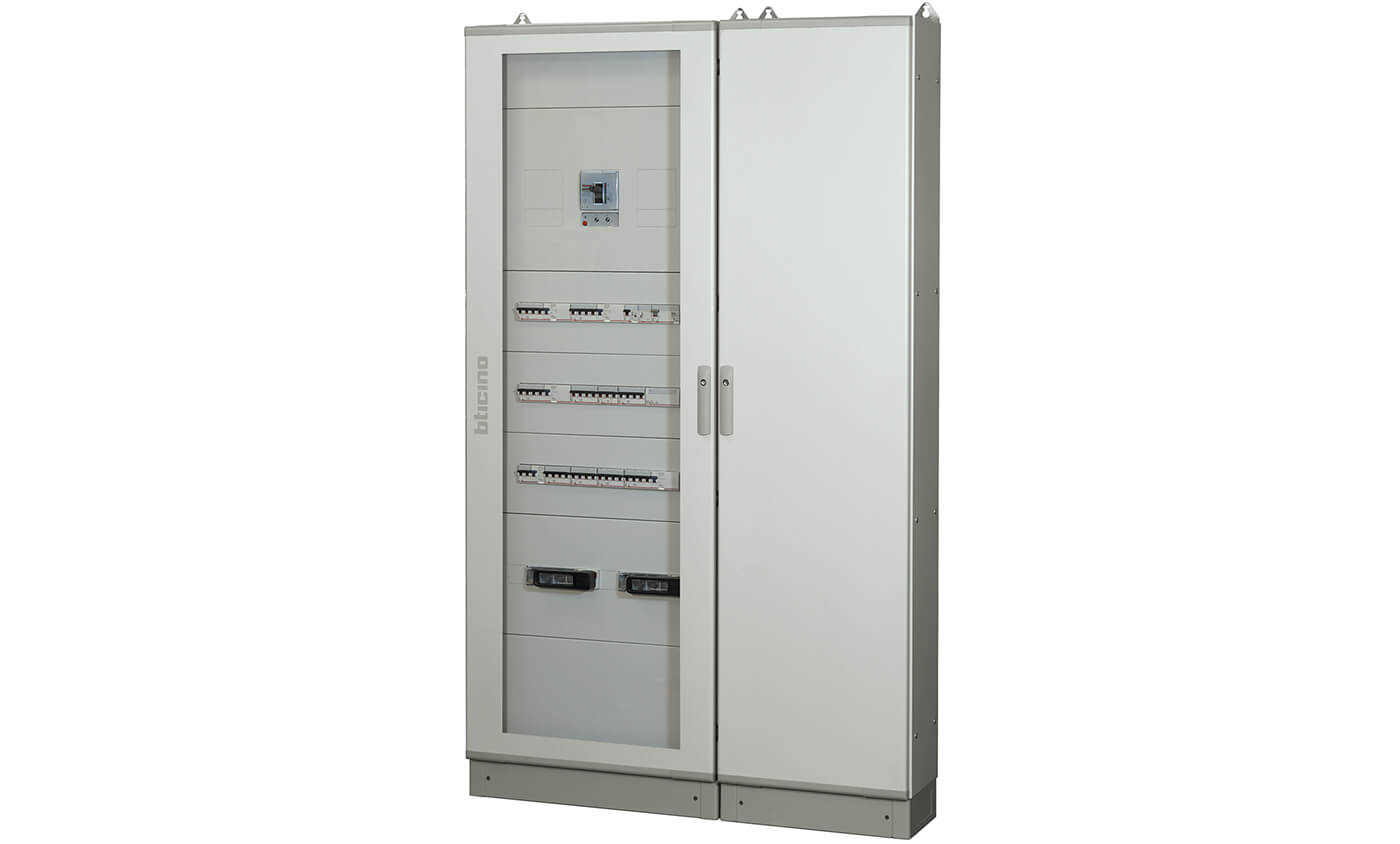

MAS800 is the range of modular and monobloc switchboards and cabinets up to 800A for the tertiary and industrial sectors, the range is characterized by two types of structures with a depth of 250 mm.
Medium power switchboards and cabinets
MAS800 switchboards can be equipped with Btdin and Megatiker circuit-breakers up to 800A and can be equipped with the Easy Tifast 125, Easy Tifast 250/400 and Tifast Pettini rapid wiring system.

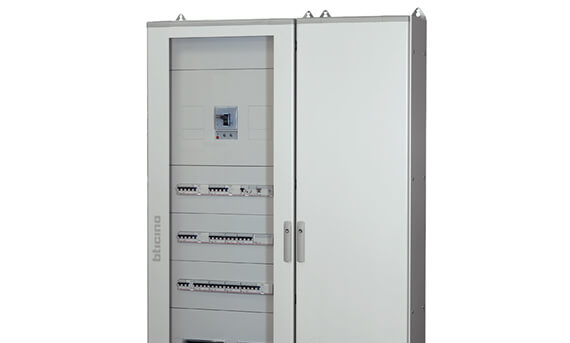

- LDX800 Metal switchboards and cabinets with modular structure, with maximum IP43 degree of protection and maximum current of 800A.

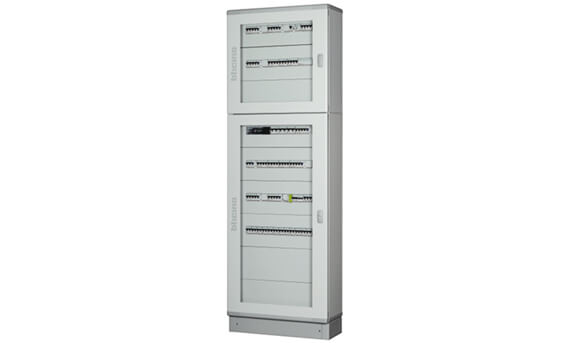

- MDX800 Monobloc metal switchboards and cabinets, with IP65 degree of protection and maximum current of 800 A.

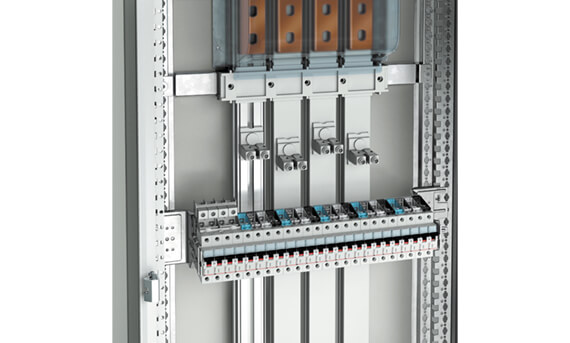

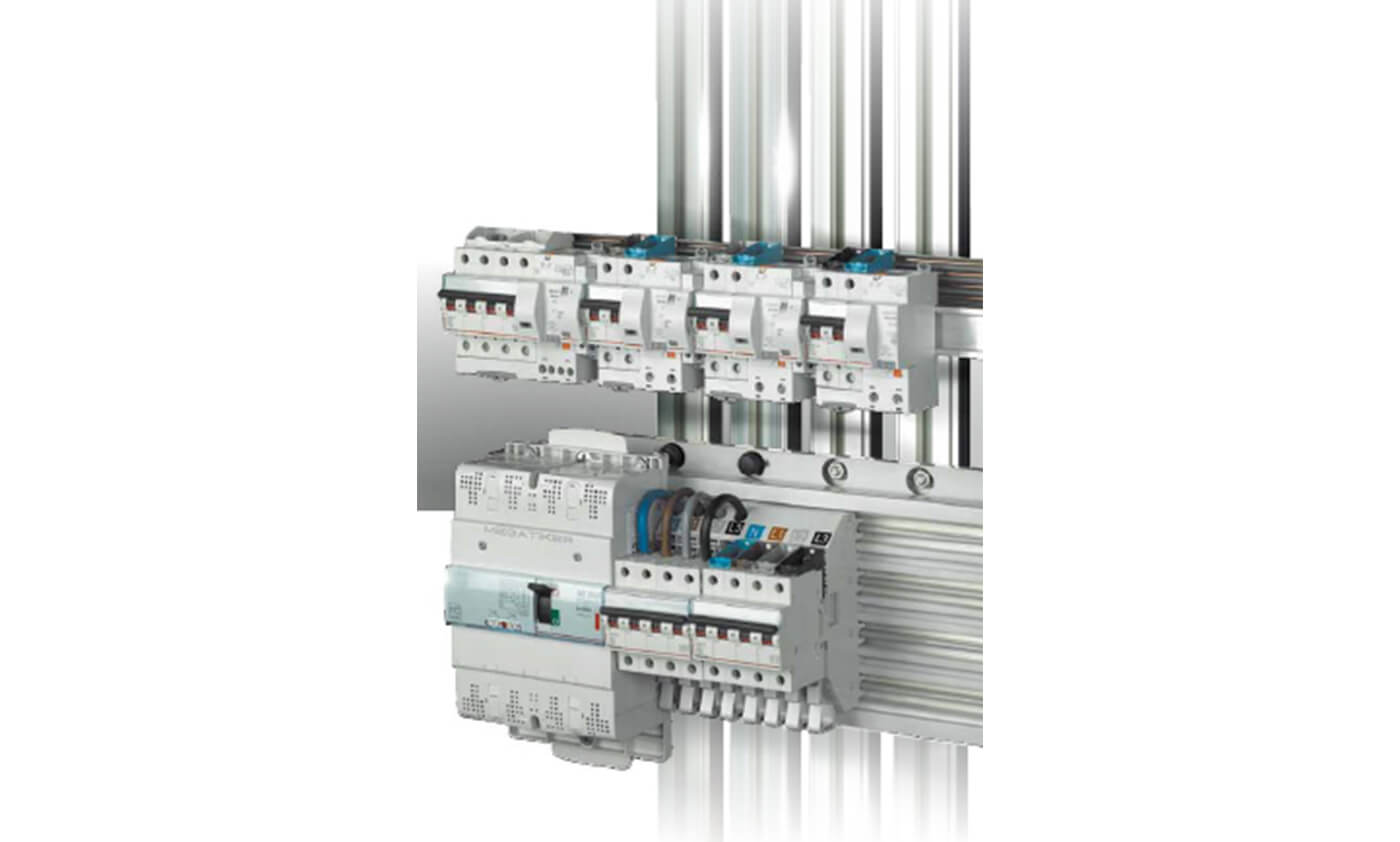

Aluminum distribution system up to 800A to power Easy Tifast systems quickly and safely. The system includes a connection KIT between the main switch and the distribution bars.
The individual front panels are available with different materials and locking systems:
- In sheet metal with 1/4 turn;
- In plastic with 1/4 turn;
- Sheet metal screw.
For screwed and solid panels it is also possible to install the hinge.
The MAS800 structures can be assembled by arranging internal or external busbar compartments according to the type of cabinet. The busbar compartments can be used for cable routing or for the installation of power bars.

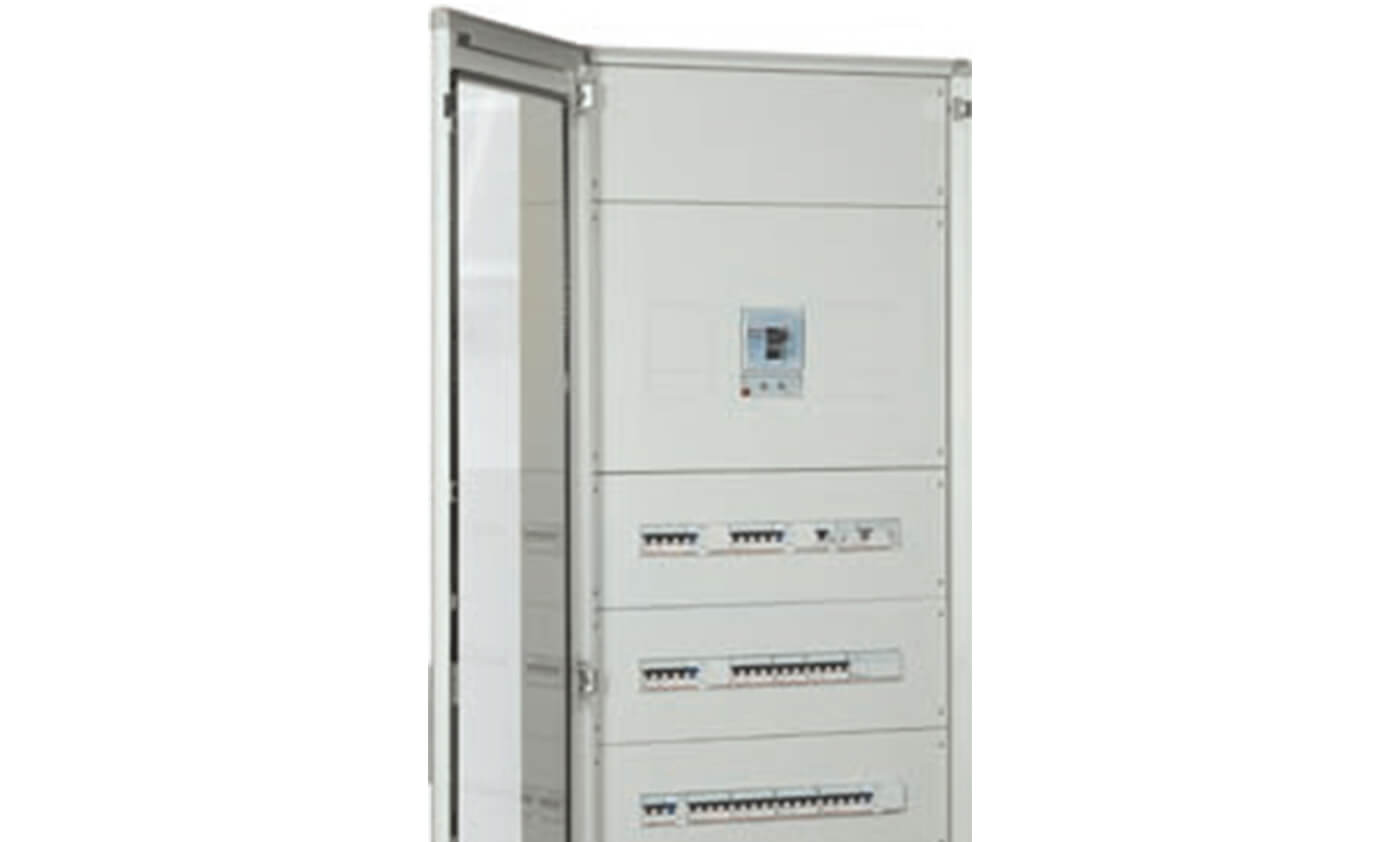

The protection degree of the MAS800 structures can be increased by installing the different doors in the different types. This allows these switchboards and cabinets to be used in a wide range of applications and environmental situations.
