FEATURES

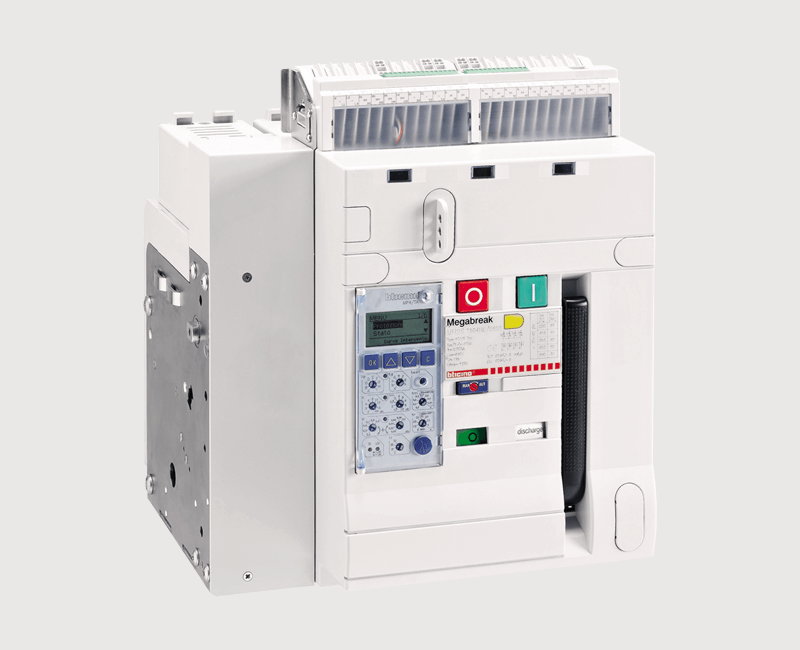

Bticino Power Control Station (PCS) is a product software developed to configure Megatiker and Megabreak circuit breakers via PC.
Software features:
- Device connection and configuration; Real-time monitoring;
- View events and alarms;
- Device trip diagnostic test with reports;
- Comprehensive reports with device data, measurements, and history;
- Offline configuration, import/export of security settings;
- Multiple user levels with passwords (General User, Professional User, Technical Support, Reserved Area)
INSTALLATION REQUIREMENTS
Hardware requirements recommended
- Intel core i5 / AMD Ryzen 5
- RAM memory 8GB
- Resolution 1920 x 1080
- 1GB free space on hard disk
Software requirements recommended
Windows 10 19H2.
Device requirements
For devices which support the monitoring function (listed below) check the device technical version (note 1) or firmware:
- MEGABREAK MP4 2500-4000-6300 (Display firmware 2.5.X)
- MEGABREAK MP6 2500-4000-6300 (Display firmware 3.2.X)
- MEGABREAK MP2.10 1600-2500-4000-6300 (All releases compatible)
- MEGABREAK MP4.10 1600-2500-4000-6300 (All releases compatible)
- DMX-SP MP2.10 2500-4000 (All releases compatible)
- DMX-SP MP4.10 2500-4000 (All releases compatible)
- MEGATIKER 160 M1 Thermal magnetic with earth leakage protection (rev. 10)
- MEGATIKER 160 M1 Earth leakage protection only (rev. 10)
- MEGATIKER 250 M2 Thermal magnetic with earth leakage protection (rev. 10)
- MEGATIKER 250 M2 Earth leakage protection only (rev. 10)
- MEGATIKER 250 M2 Electronic S2, Sg / LSI, LSIg (rev. 4)
- MEGATIKER 250 M2 Electronic with earth leakage protection (rev. 4)
- MEGATIKER 250 HP M3 Electronic S10 (rev. 3)
- MEGATIKER 250 HP M3 Electronic S10 with earth leakage protection (rev. 3)
- MEGATIKER 630 M4 Electronic S2, Sg / LSI, LSIg (rev. 4 (Legrand) /rev.1 (Bticino))
- MEGATIKER 630 M4 Electronic S10 (All releases compatible)
- MEGATIKER 1600 M5 Electronic S2, Sg / LSI, LSIg (rev. 2)
- MEGATIKER 1600 M5 Electronic S10 (All releases compatible)
* note 1: the technical version is the 6th digit of the traceability code written on the product label (e.g. 11W40 1 80);
