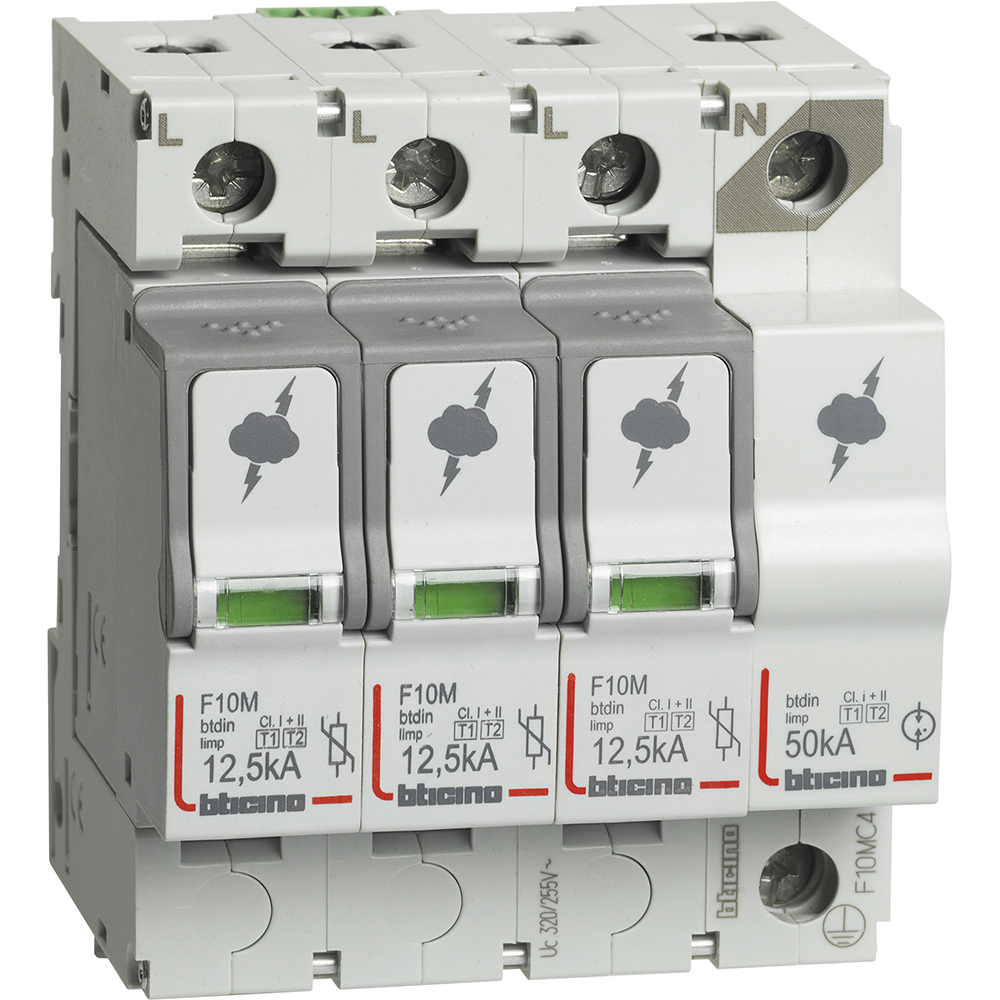

SPD - 3P+N - Type T1+T2 - Iimp=12.5kA - Up=1.5kV - Uc=320Vac - 4 modules
BT-F10MC4
|
8005543546314
Description
The BTICINO lightning arrester is a device that prevents damaging equipment due to lightning. It is also equipped with overload and short circuit protection.Suitable for domestic and small tertiary installation.
Product characteristics
- 25kA
- 400V
- 4 modular spacing
Technical Characteristics
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
4
Nominal discharge surge current In (8/20)
25 kA
Nominal voltage AC
400 V
Max. continuous voltage AC
320 V
Voltage protection level L-N
2.2 kV
Voltage protection level N-PE
1.5 kV
Integrated backup fuse
No
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
With remote signalling contact
Yes
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
