Busbars for energy distribution and lighting
LBplus is the range of busbars for the distribution of power and lighting from 25 to 63A. Extremely flexible, with 10, 16 and 25 A tap-off plugs, it can adapt the system to any changes in the room.
The construction characteristics of this busbar system make it possible for it to be used in a wide range of solutions, from small/medium service sector applications (offices, hotels, sports establishments, shopping centres), up to industrial dwellings (factories, workshops, production plants, …).
Straight elements
LBplus satisfies all requirements of lighting and driving force up to 63 A. Straight elements are available in 2 versions with different profile, to satisfy the customer’s installation needs. The Type A version (LBA) allows distance between suspension brackets up to 3 metre, while up to 7 metres are possible with the Type B versions (LBB).

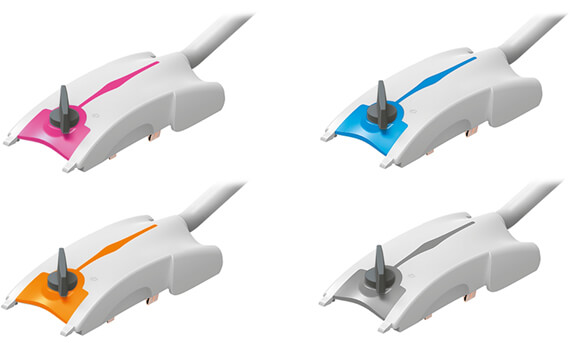

10 A Tap-off plugs
Single-phase plugs with fixed phase, easily identifiable thanks to the different colours.

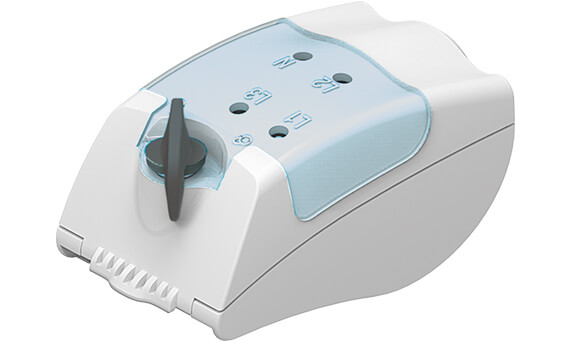

16 A Tap-off plugs
Crimp contacts, made with self-extinguishing plastic, available in version with selection of phase and three phase.

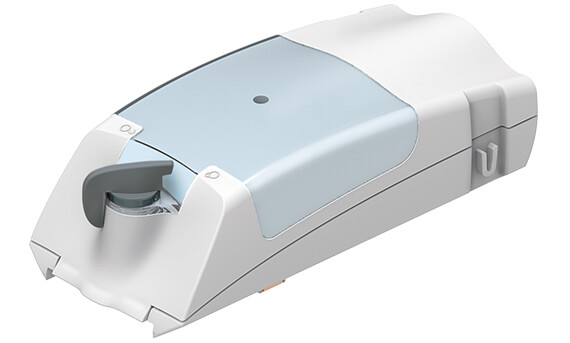

25 A Tap-off plugs
Three-phase plugs with crimp contacts, made with plastic self-extinguishing plastic material.

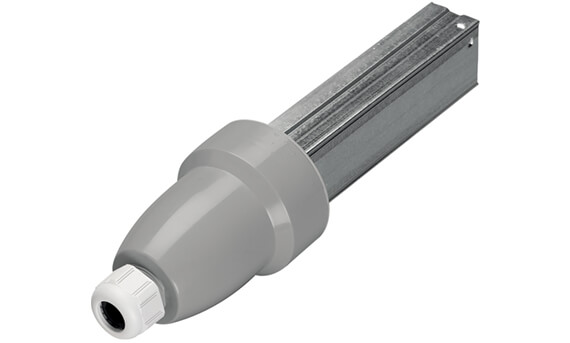

25 A power supply
Power supply with terminals for connection with rigid or flexible copper wires with cross-sections up to 6 mm². The power supplies are supplied together with their closures.

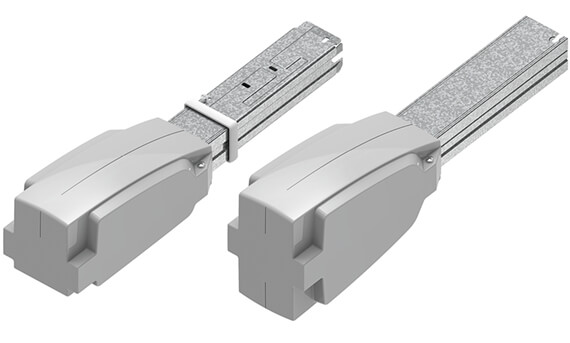

40 A and 63 A power supply
Power supplies with terminals for connection with rigid or flexible copper wires with cross-sections from 6 mm² to 25 mm². The power supplies are supplied together with their closures.

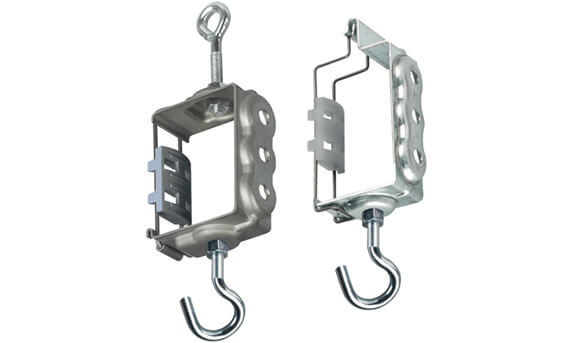

Busbar suspension brackets
Allows mounting the busbar on the ceiling and wall. They can be assembled anywhere on the busbar, or on distributing frames, while maintaining the system IP55 protection index.
