  • Nemo D4-e - Multifunction with active energy count (cl.1) and reactive (cl.1)
Nemo IME

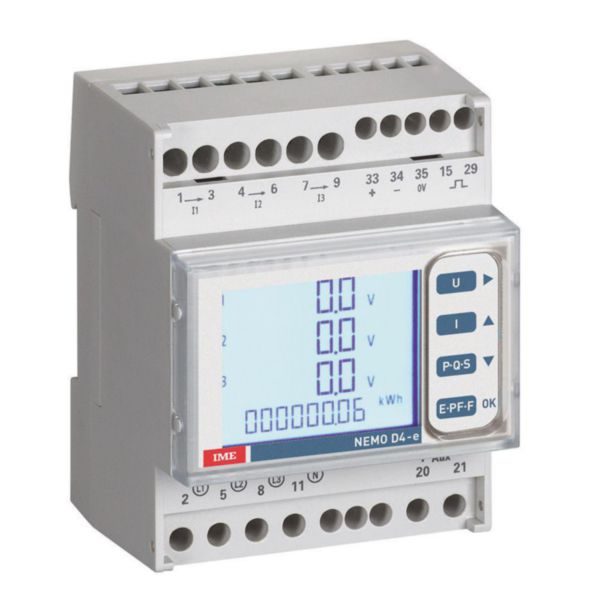

Nemo D4-e - Multifunction with active energy count (cl.1) and reactive (cl.1)

IM-MFD45A00 | 8032826514357
Nemo D4-e - Multifunction for application in LV with active energy count (cl.1) and reactive (cl.1) on 4 quadrants - Network: single-phase or three-phase 3/4-wires unbalanced - Display: LCD backlit - Dimension: 4 DIN modules - Output: pulse - Input: 80÷500Vac (50÷290Vac for single-phase)- Auxiliary supply: 230Vac
Description

Multifunction DIN analyzer for three phase three or four wire systems.The device visualize the main electrical values.

Product characteristics
  • Class 1 EN/IEC 62053-23
Products benefits
Usage
  • No comunication port for basic installations
Technical Characteristics
Mounting method DIN rail
Ampere meter Yes
Reactive power meter Yes
With rotational speed meter No
Frequency meter Yes
Pulse counter No
Voltmeter Yes
Effective power measurement device Yes
Width 71.2 mm
Height 90 mm
Depth 65 mm
Built-in depth 48.5 mm
Degree of protection (IP) IP54
Operating / setting temperature (Min-Max) -25-55 °C
Storage temperature (Min-Max) -25-70 °C
Voltage type AC
Nominal voltage (Min-Max) 195-264 V
Frequency (Min-Max) 47-63 Hz
Terminal marking indication Yes
Connection type Screwed terminal
Contains Batteries and/or Accumulator No
Connected object No
Application store for download Not applicable
Documentation
5 documents
Technical Sheet
IDP000206_03 | PDF (1.1 MB) | FR · IT · DE · EN
Technical Sheet
IDP000206EN_03 | PDF (1.2 MB) | EN
Technical Sheet
IDP000206FR | PDF (833 KB) | EN · FR
Instruction Use
LE11262FR | PDF (294 KB) | EN · FR
Instruction Use
LE11289FR | PDF (3.5 MB) | EN · FR
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
