How to install CLASSE 300X
The installation rules do not change. Forget complex installations and configurations of Ethernet networks and continue to enjoy the simplicity of the 2 wires solutions. Everything stays the same, thanks to the integrated Wi-Fi technology. Installation, connection of the 2 BUS wires, configuration of the main system parameters: job done! No changes to your working habits: same installation rules and procedures as for the 2 wires video internal units.
Wall-mounted and tabletop installation

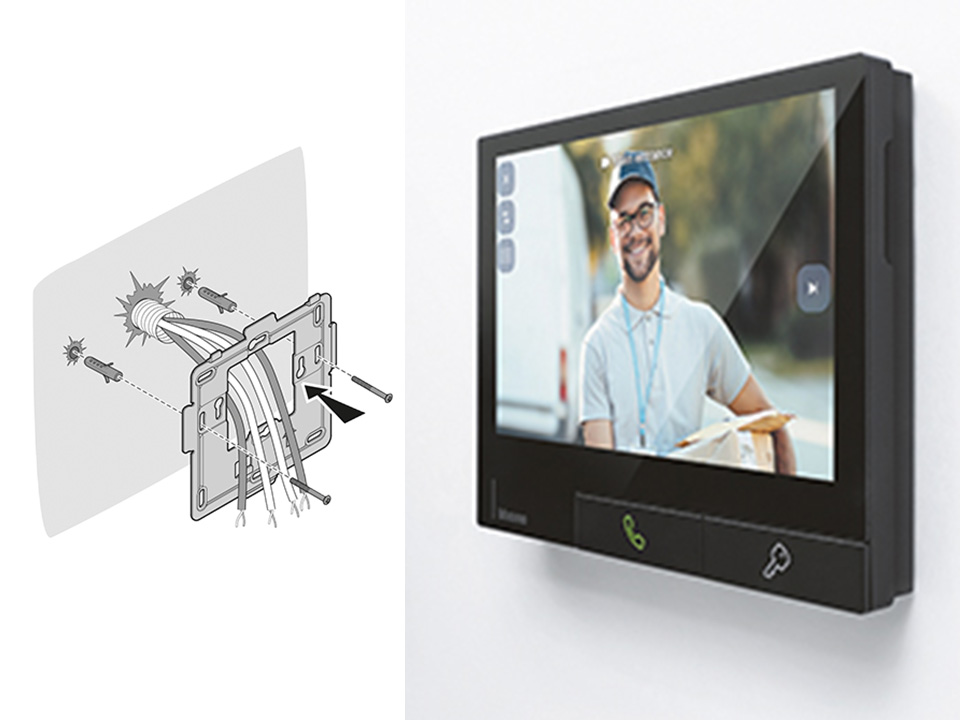

Wall-mounted

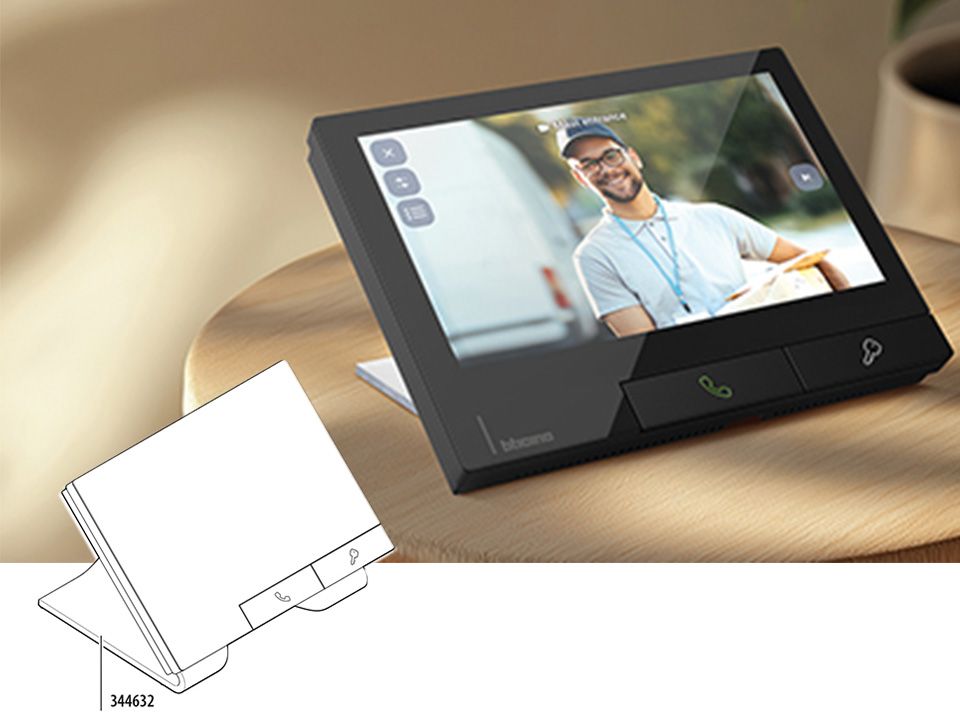

Tabletop
Dimensional data
Video internal units 344742 - 344743
Bracket / Wall Mount and Accessory Tabletop Support 344632
Watch all the Classe 300X tutorial
Installation and initial configuration
Use of the video internal unit
Commissioning and use of the Home + Security App

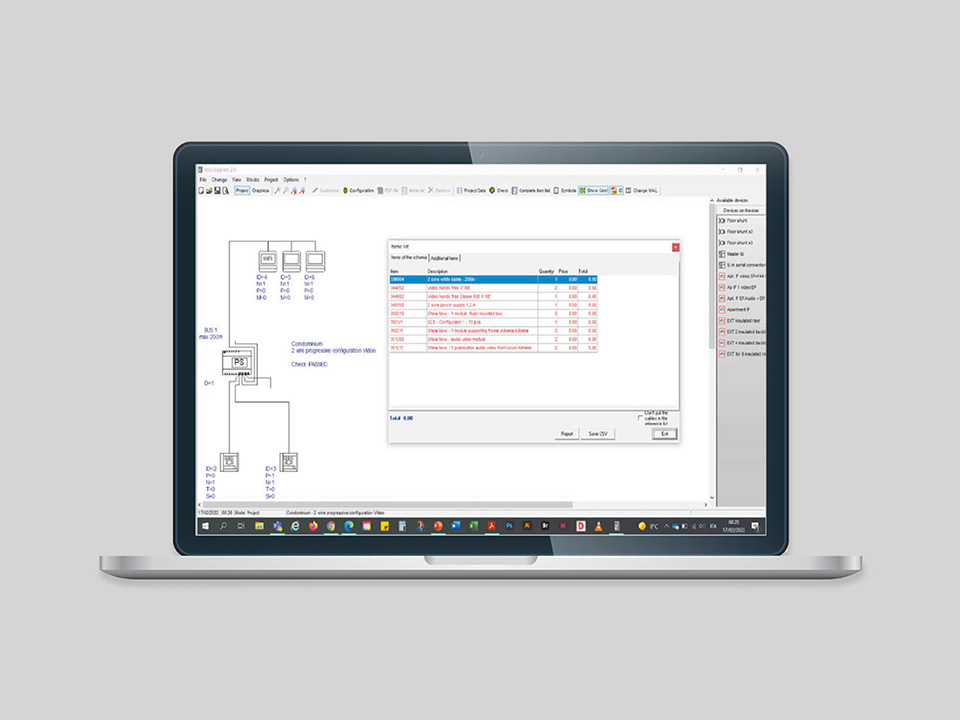

YouDiagram software
For the design of audio and video door entry systems. It allows to draw the single-line diagram of the system in PDF and DXF format, to choose the devices and their finishes, their configuration and the verification of the absorption on the system BUS.
2 wires door entry system technical guide
Prepare and design your system with the technical guide. An indispensable tool for the professional with all the updated technical information useful for designing, sizing, connecting, configuring and maintaining 2 wires audio and video door entry systems.
