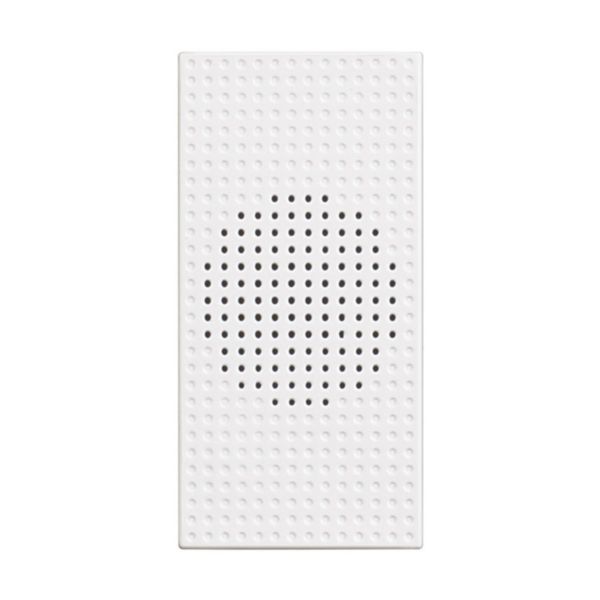

Bronze bell 230 Vac 8 VA
BT-RW4351V230
|
8005543633656
Description
The bronze bell is an acoustic signal inside the house activeted outside the house (for examples activated by the outside pushbutton with nameplate),1 module, color shiny white
Product characteristics
- Allows the acoustic signaling called from a room outside the house
- 1 module
- color white
- screw terminals
- 230Vac 8VA
Products benefits
Installation
- Easy to insall and remove
Usage
- Tho use as an acoustic signal alarm inside the house activated outside the house (for example, it is activated by the outside pushbutton with nameplate)
Technical Characteristics
Housing colour
White
Housing material
Plastic
Nominal voltage (Min-Max)
230-230 V
Type of current
AC
Built-in battery
No
Electricity consumption (Min-Max)
8-8 A
Connection type
Screwed terminal
Loudness
80 dB
Wireless
No
Degree of protection (IP)
IP40
Mounting method
Modular device for domestic switching devices
Number of modules (module system)
1
Width in number of modular spacings
22.3
Width
22.3 mm
Height
45 mm
Depth
42.7 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Terminal marking indication
No
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Label space/information surface
No
With complemantary luminous signal
No
Contains Batteries and/or Accumulator
No
Number of ringtones
1
Connected object
No
