Obsolete MyHome BTicino

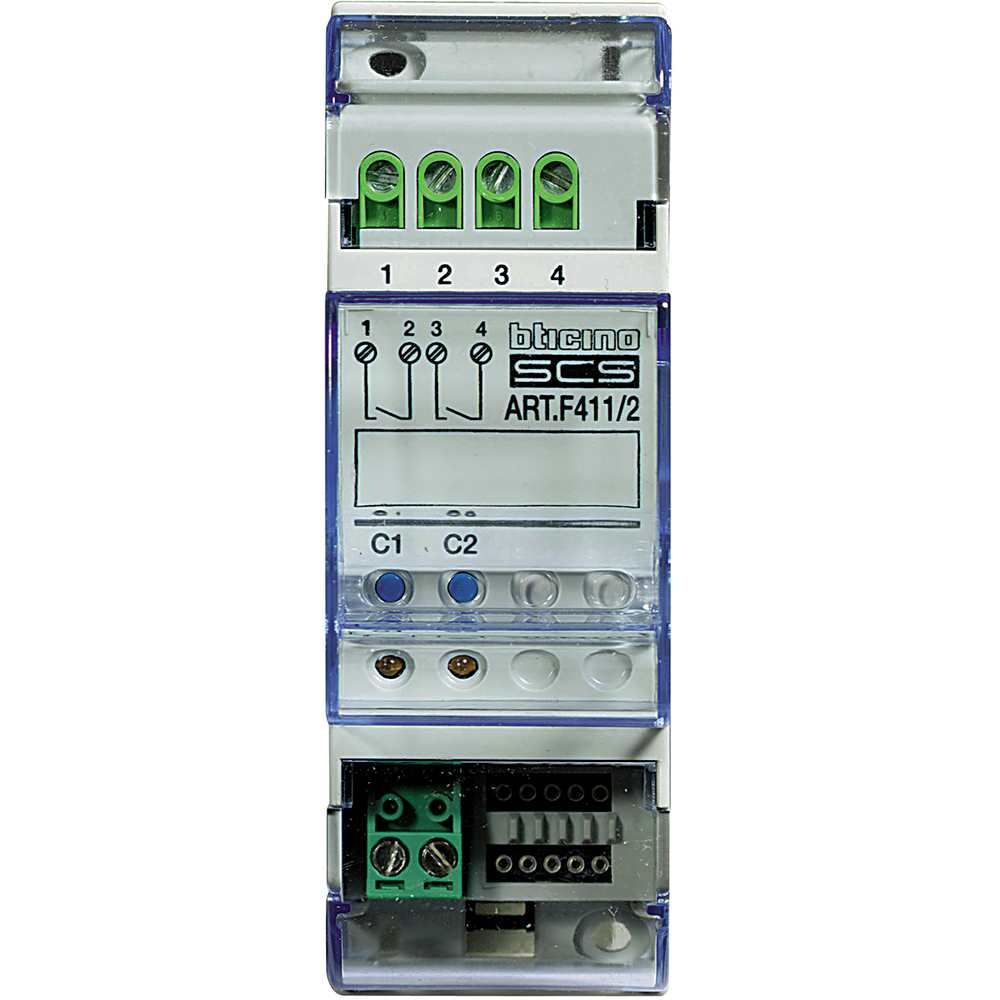

2 independent relay actuator

Name: 2 independent relay actuator
Brand: BTicino
SKU: BT-F411/2
Availability: Discontinued

BT-F411/2 | 8012199365466

2 independent relay actuator - for single, double and combined loads: 10 A resistive and 6 A for filament lamp, 500 W for motor reducers, 2 cos? 0.5 for ferromagnetic transformers, and 250 W for fluorescent lamps - logic relay interlock via configuration - 2 DIN modules

Compare

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency Yes

Bus system LON No

Bus system Powernet No

Other bus systems Other

Mounting method DRA (DIN-rail adaptor)

Width in number of modular spacings 2

Local operation/hand operation Yes

With LED indication Yes

Number of digital inputs 0

Max. switching power 1380 W

Suitable for C-load Yes

Max. number of switching contacts 2

Rated current 6 A

Rated operating voltage (Min-Max) 18-27 V

Different phases connectable No

With bus connection Yes

Modular expandability No

Degree of protection (IP) IP20

Documentation

Installation Guide

GUI-MHOME | PDF (22.7 MB) | EN

Brochure

BRO-MHOME | PDF (2.7 MB) | EN
